AIP11860 16.00 in
Novato Drum - Pendant

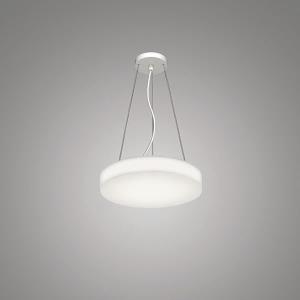

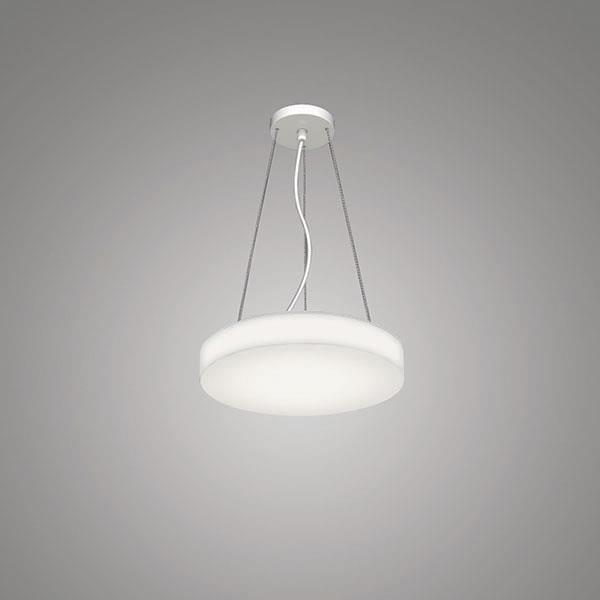

While highly functional, the Novato family provides a playful twist to make a lasting impression. Versatility is the main strength of this collection as they are perfectly suited for a wide range of modern or traditional environments. Customize your visual environment with the Novato Drum by choosing a matte acrylic diffuser or from four fabric options. Available in 16", 24", 36", and 48" diameters.
Novato Drum - Pendant AIP11860

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • NEW! Wood Grain & Color band options available (Photometric files for banded drums available soon)
  • Fully enclosed three-sided luminous form brightens horizontal and vertical planes
  • Provides functional lighting with comfortable luminance levels
  • Hand-fabricated construction maintains crisp, clean edges
  • Diffuser available in two heights (see line art for details)
  • Optional fabric lenses are cleanable
  • Hang individually or consult factory to arrange in tiered configurations
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE:  Static white, tunable white, or RGBW LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L80 = >72,000 Hrs.
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K (static white); 2700K-6500K (tunable white); 3000K (RGBW)
  • VOLTAGE:  120-277V standard
  • DRIVER:  Integral Class 2 power supply standard for white light engines; RGBW has a remote DMX driver; max distance to the driver is 15' (includes OAH)
  • DIMMING:  1% minimum dim level standard for static white light engines. 0.1% standard for tunable white and RGBW light engines
  • CONTROLS: 0-10V standard for static white light engines; Lutron Athena, Current NX, and nLight AIR optional. DALI-2 (DT8) standard for tunable white, and DMX standard for RGBW. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • CONSTRUCTION:  Seamless bottom; minimal lap joint(s) on outer surfaces; edges are fused with solvent that permanently binds acrylic
  • FINISH:  Tailor the canopy to your space. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including straight cable mounting
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

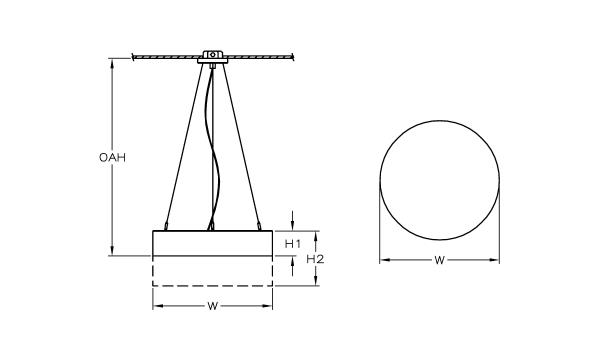

DIMENSIONS

Dimensions
W
16 in
40.6 cm
H1
5 in
12.7 cm
H2
10 in
25.4 cm
OAH
54 in
137.2 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. White light engines are available in alternative wattages upon request.

L14W | Static White 14W LED Light Engine

Delivered Lumens: 1,129

L14W-T | Tunable White 14W LED Light Engine

Delivered Lumens: 1,129

L29W | Static White 29W LED Light Engine

Delivered Lumens: 2,257

L29W-T | Tunable White 29W LED Light Engine

Delivered Lumens: 2,257

L29W-C 1 | RGBW 29W LED Light Engine

Delivered Lumens: 638
CUST_Out| Alternate RGBW LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 14.0 - Max 29.0
LU   Min 1105 - Max 2288

1 RGBW delivered lumens shown are for white only at 3000K
*For requests outside Min-Max range, please contact factory.

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s. Tunable White delivered lumens vary +/-5% from the values shown depending on the color temperature selected.

2700K | 2700K CCT
3000K | Static White 3000K CCT
3500K | Static White 3500K CCT
4000K | Static White 4000K CCT
5000K | 5000K CCT
TUN | Tunable White 2700K-6500K CCT (This is the only choice when a tunable white light source is selected in Section A)
RGBW 2 | RGBW 3000K CCT (This is the only choice when an RGBW light source is selected in Section A)

CRI *

DF_80 | (default)
90

2 Use DMX/DALI programming for alternate color temps; see programming guide

Controls *

Extended lead times may apply for controls other than 0-10V, DALI-2, or DMX. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DIM1 3 | 0-10V Control, 1% Dimming
AWNR 3 | Lutron Athena Wireless Node, 1% Dimming
NX 3 | Current NX Wireless, 1% Dimming
NLTA 3 | Acuity nLight Air, 1% Dimming
DALI 4 | DALI-2 DT8 Control, 0.1% Dimming
DMX 5 | DMX Control, 0.1% Dimming

3 Not available with RGBW or Tunable White light sources.
4 Standard with Tunable White light source.
5 Standard with RGBW light source.

Diffuser Height *

Please choose one:

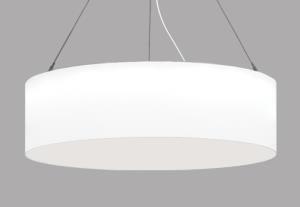

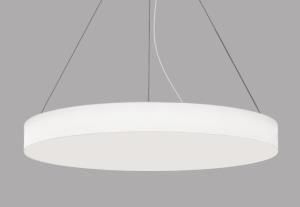

H05 | 5" Height
H10 | 10" Height

H05
H10

Diffuser Finish *

Please choose one:

FB00 | Matte Opal Diffuser
FB01 | Fabric - Textured White Linen
FB02 | Fabric - Rapids
FB03 | Fabric - Chocolate Linen
FB05 | Fabric - Jute Linen

FB00
FB01
FB02
FB03
FB05

Mounting *

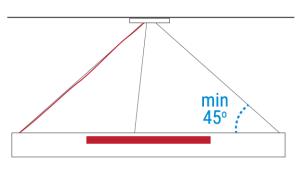

Mounts to standard 4" octagonal junction box. Field adjustable aircraft cables allow the fixture to be mounted at an application appropriate height (up to OAH). Cables must be at least 45° to the fixture.

DF_MIA | 6" Canopy, 3 Aircraft Cables and White Power Cord

MIA

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Color Band Options

MB02 | Color Band Outer

Wood Grain Band Options

WG02 | Wood Grain Band Outer

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture. The minimum OAH is half the diameter of the drum plus the diffuser height.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
For Tunable White or RGBW, see Driver section for any exceptions.

OAH
