Novato Drum - Pendant
Novato Drum - Pendant
Novato Drum - Pendant
AIP11862 36 in
Novato Drum - Pendant
While highly functional, the Novato family provides a playful twist to make a lasting impression. Versatility is the main strength of this collection as they are perfectly suited for a wide range of modern or traditional environments. Customize your visual environment with the Novato Drum by choosing a matte acrylic diffuser or from four fabric options. Available in 16", 24", 36", and 48" diameters.
Novato Drum - Pendant AIP11862

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Fully enclosed three-sided luminous form brightens horizontal and vertical planes
  • Provides functional lighting with comfortable luminance levels
  • Hand-fabricated construction maintains crisp, clean edges
  • Diffuser available in two heights (see line art for details)
  • Optional fabric lenses are cleanable
  • Hang individually or consult factory to arrange in tiered configurations
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • LUMEN MAINTENANCE:  L70 life = 50,000+ hours
  • CCT:  3000K, 3500K, or 4000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Integral Class II power supply standard
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • EMERGENCY:  Emergency battery remote optional
  • CONSTRUCTION:  Seamless bottom; minimal lap joint(s) on outer surfaces; edges are fused with solvent that permanently binds acrylic
  • FINISH:  Tailor the canopy to your space. Choose from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

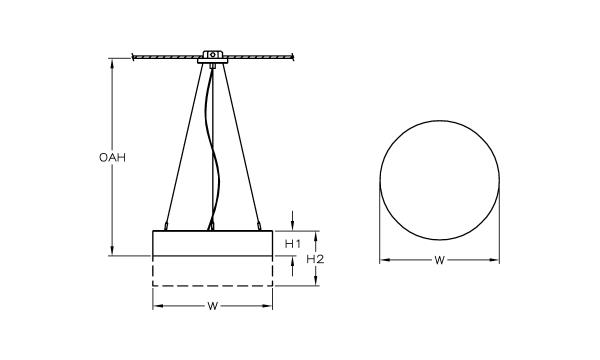

DIMENSIONS

Dimensions
W
36 in
91.4 cm
H1
7.4 in
18.8 cm
H2
11.4 in
29 cm
OAH
54 in
137.2 cm
Mounting Weight
Approximate: 25 lb - 12 (kg)
PRODUCT BUILDER | Your Selections:
clear
--None --

Required Field *

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L100W | White 100W LED Light Engine

Delivered Lumens: 7,924

L201W | White 201W LED Light Engine

Delivered Lumens: 15,848


Voltage

120-277V | Universal Voltage

Mounting

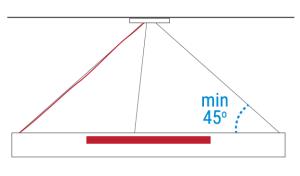

Mounts to standard 4" octagonal junction box. 6" canopy features field adjustable aircraft cables that allow the fixture to be mounted at an application appropriate height (up to OAH). Power cord is white.

DF_AC | Aircraft cable and power cord (default)

Lamp Options

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Diffuser Height *

Please choose one:

H07.5 | 7.5" Height
H11.5 | 11.5" Height

H07.5
H11.5

Diffuser Finish *

Please choose one:

FB00 | Matte Opal Diffuser
FB01 | Fabric - Textured White Linen
FB02 | Fabric - Rapids
FB03 | Fabric - Chocolate Linen
FB05 | Fabric - Jute Linen

FB00
FB01
FB02
FB03
FB05

Emergency

EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
OAH

DownLoad my spec sheet Request a modification
