FEATURES & BENEFITS

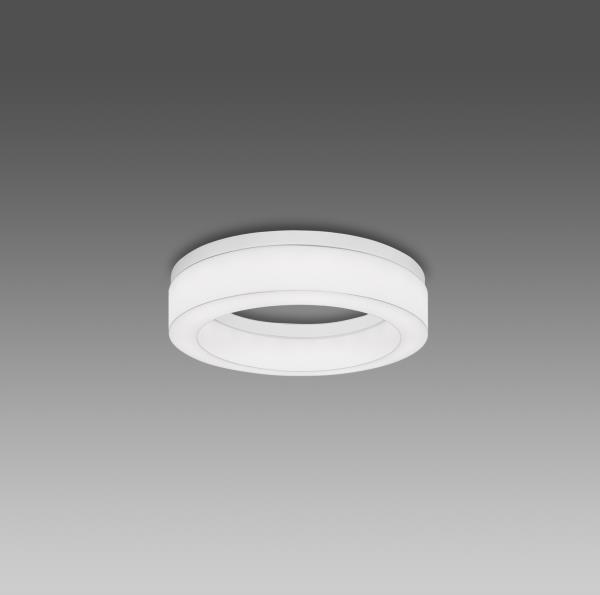

- Fully enclosed three-sided luminous form brightens horizontal and vertical planes
- Provides functional lighting with comfortable luminance levels
- Hand-fabricated construction maintains crisp, clean edges
- Diffuser available in two heights
- Add a decorative accent with optional color bands
- Choose matte opal diffuser or from four fabrics
- Specialized high-transmission diffuser offers higher delivered lumens while providing uniform illumination
- Mix and match with entire Novato Family
- Consult factory for 2”x2” cross-section version
- Handcrafted in USA
- LIGHT SOURCE: White LED light engine
- CRI: 80+ (contact factory for 90+)
- LUMEN MAINTENANCE: L70 = >50,000 Hrs.
- EFFICACY: 102 lm/W delivered
- CCT: 3000K, 3500K, or 4000K
- VOLTAGE: 120-277V standard
- DRIVER: Integral Class 2 power supply standard
- DIMMING: 0-10V controls standard to 10% on LED light engines
- DIFFUSER: Seamless bottom and minimal lap joint(s) on inner and outer surfaces; edges are fused with solvent that permanently binds acrylic
- FINISH: Tailor the mounting plate to your space. Choose from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request. Color band options are specified separately.
- MOUNTING: Mounts to standard 4" octagonal junction box
- MODIFICATIONS: Consult factory for all modification requests, including 2"x2" cross-section
- APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications
Approximate: 25 lb (12 kg)
Required Field *
Please Note: Default specifications "DF_XXX" will not appear in the ordering code.
LIGHT SOURCE *
To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.
L32W | White 32W LED Light Engine
Delivered Lumens: 3,295
L35W | White 35W LED Light Engine
Delivered Lumens: 3,576
L65W | White 65W LED Light Engine
Delivered Lumens: 6,589
Lamp Options *
Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.
1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens
Diffuser Height *
Please choose one:
Diffuser Finish *
Fabrics are extruded into the acrylic and will not separate from the diffuser. They are washable. Please choose one:
Color Band Options
Color bands are opaque. The finish is specified separately. When choosing this option, use the associated photometrics provided. For MB01 and MB02 options, Matte Opal Acrylic (FB00) is the standard diffuser finish. Consult factory for fabric and color band combinations.
3 Delivered lumens are 83% of luminous form output shown above
4 Delivered lumens are 64% of luminous form output shown above
5 Delivered lumens are 53% of luminous form output shown above. To specify different finishes for the inner and outer color bands, consult factory.
