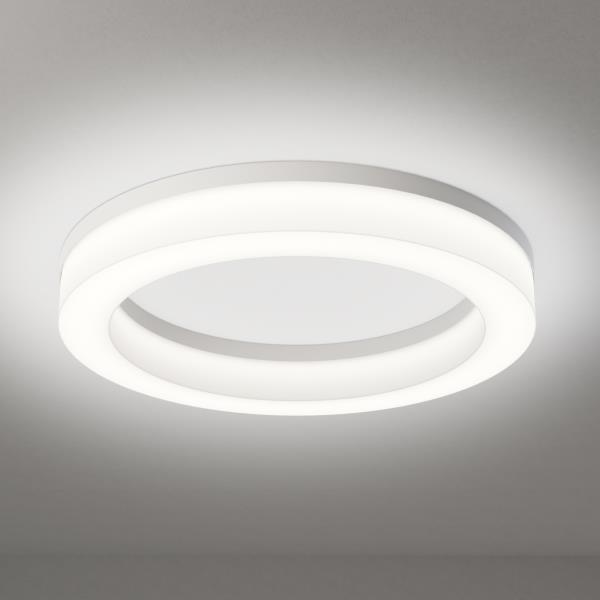

Novato Ring - Ceiling
Novato Ring - Ceiling
Novato Ring - Ceiling
AIC11875 48 in
Novato Ring - Ceiling
A cornerstone of our luminous forms collection, Novato Ring is renowned for its even, three-sided illumination, versatility, and high performance. With efficacy over 100 lumens per watt delivered, it can often be the only light source required in a space, providing both the aesthetics and the performance you require. Available in a wide range of configurations, Novato Rings are well-suited for a range of environments from modern to traditional. Ceiling mount available in 2', 3', 4', and 5' diameters.
Novato Ring - Ceiling AIC11875

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Fully enclosed three-sided luminous form brightens horizontal and vertical planes
  • Provides functional lighting with comfortable luminance levels
  • Hand-fabricated construction maintains crisp, clean edges
  • Diffuser available in two heights
  • Add a decorative accent with optional color bands
  • Choose matte opal diffuser or from four fabrics
  • Specialized high-transmission diffuser offers higher delivered lumens while providing uniform illumination
  • Mix and match with entire Novato Family
  • Consult factory for 2”x2” cross-section version
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  102 lm/W delivered
  • CCT:  3000K, 3500K, or 4000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Integral Class II power supply standard
  • DIMMING:  0-10V controls standard to 10% on LED light engines
  • DIFFUSER:  Seamless bottom and minimal lap joint(s) on inner and outer surfaces; edges are fused with solvent that permanently binds acrylic
  • FINISH:  Tailor the mounting plate to your space. Choose from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request. Color band options are specified separately.
  • MOUNTING: Mounts to standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests, including 2"x2" cross-section
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

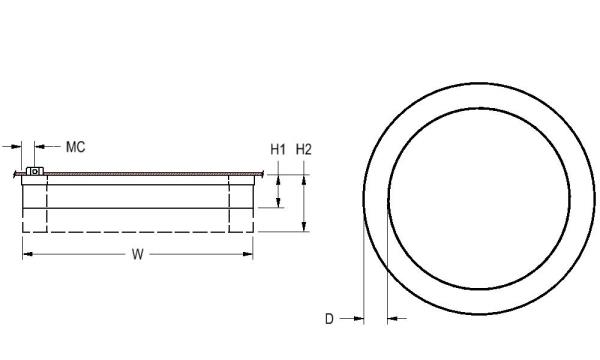

DIMENSIONS

Dimensions
W
48 in
121.9 cm
H1
6.8 in
17.3 cm
H2
11.8 in
30 cm
D
5 in
12.7 cm
MC
2.5 in
6.4 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L75W | White 75W LED Light Engine

Delivered Lumens: 7,701

L151W | White 151W LED Light Engine

Delivered Lumens: 15,403


Voltage *

120-277V | Universal Voltage

Lamp Options *

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Diffuser Height *

Please choose one:

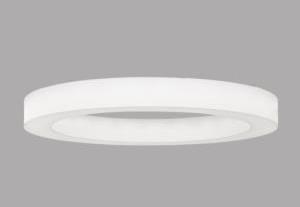

H05 | 5" Height

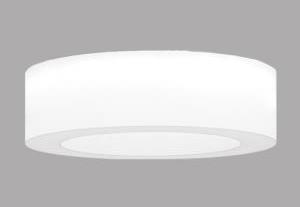

H10 | 10" Height

H05
H10

Diffuser Finish *

Fabrics are extruded into the acrylic and will not separate from the diffuser. They are washable. Please choose one:

FB00 | Matte Opal Diffuser
FB01 | Fabric - Textured White Linen
FB02 | Fabric - Rapids
FB03 | Fabric - Chocolate Linen
FB05 | Fabric - Jute Linen

FB00
FB01
FB02
FB03
FB05

Color Band Options

Color bands are opaque. The finish is specified separately. When choosing this option, use the associated photometrics provided. For MB01 and MB02 options, Matte Opal Acrylic (FB00) is the standard diffuser finish. Consult factory for fabric and color band combinations.

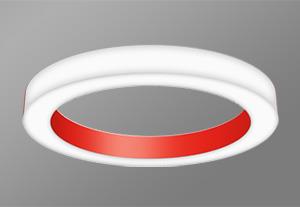

MB01 3 | Color Band Inner

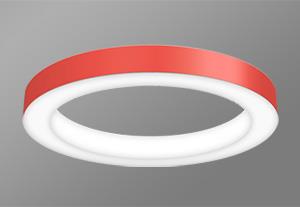

MB02 4 | Color Band Outer

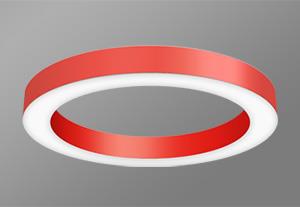

MB03 5 | Color Band Inner & Outer
MB01
MB02
MB03

3 Delivered lumens are 83% of luminous form output shown above
4 Delivered lumens are 64% of luminous form output shown above
5 Delivered lumens are 53% of luminous form output shown above. To specify different finishes for the inner and outer color bands, consult factory.
