Pavo 2" Arrays
Groundbreaking purity
SIP12133 2.00 in

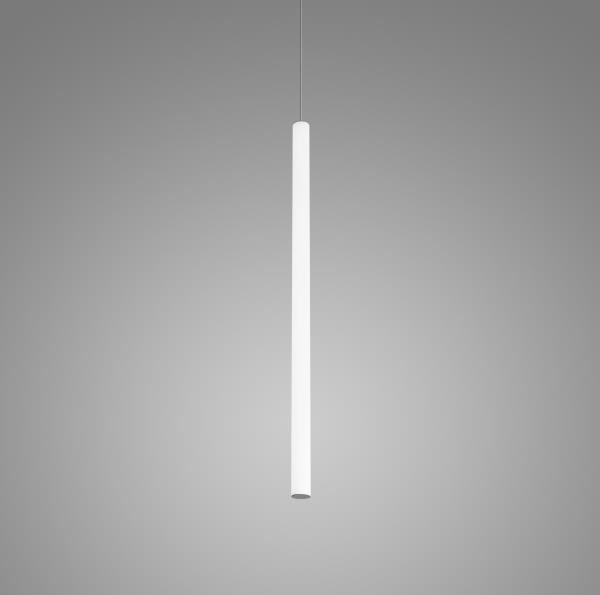

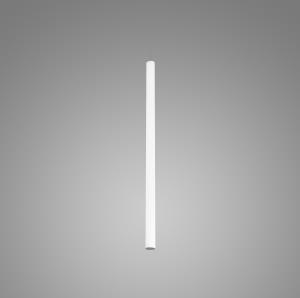

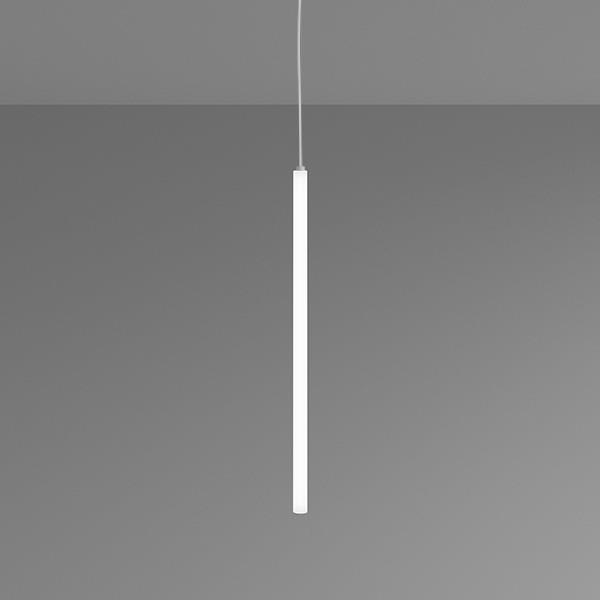

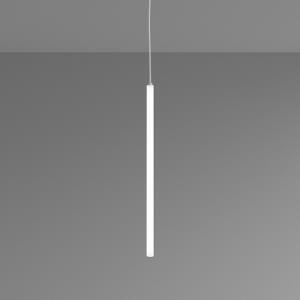

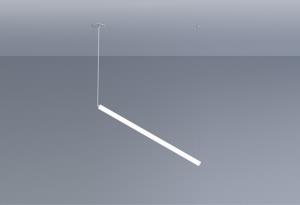

Pavo 2"
Create a striking visual accent with this slim 2" diameter pendant. Even illumination (top to bottom and radially) and well-finished ends satisfy the highest-end applications. True to its minimalist design, it has no metal collars to break the form. Hang individually or design an array for a dramatic visual statement. Available in a wide range of sizes, from 6" to 8' long.
Pavo 2" SIP12133

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Linearly-lit pendant provides even 360° illumination along the entire length of the lens
  • Meticulously designed ends have no visible shadowing
  • Create angular and horizontal configurations with a unique angle mount option
  • Contact factory for multi-unit arrays on a single canopy
  • Handcrafted in USA.  BABA Compliant.

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  up to 92 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K or 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Class 2 power supply integrated in canopy standard; remote optional. Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • DIMMING:  1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • DIFFUSER: White matte acrylic diffuser standard; white gloss acrylic diffuser also available
  • CONSTRUCTION:  Acrylic tube with aluminum end caps. Stress relief camouflage finished to match.
  • FINISH:  Solid flat end plates, stress relief camouflage, and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests; including different sizes or clusters
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

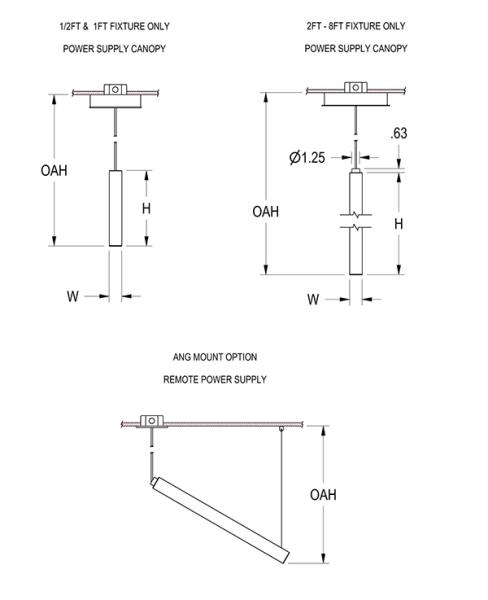

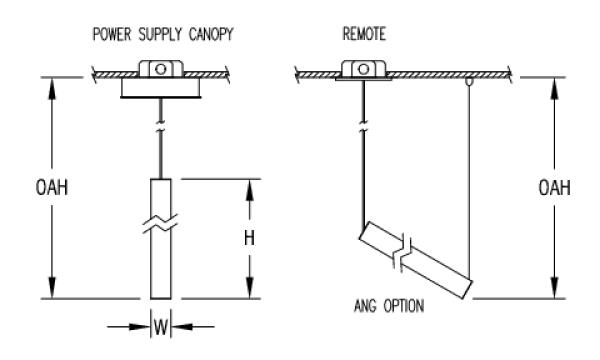

DIMENSIONS

Dimensions
1FT
W
2 in
5.1 cm
H
12 in
30.5 cm
OAH
60 in
152.4 cm
Mounting Weight: Approximate: 5 lb (3 kg)
2FT
W
2 in
5.1 cm
H
24 in
61 cm
OAH
72 in
182.9 cm
Mounting Weight: Approximate: 5 lb (3 kg)
3FT
W
2 in
5.1 cm
H
36 in
91.4 cm
OAH
84 in
213.4 cm
Mounting Weight: Approximate: 5 lb (3 kg)
4FT
W
2 in
5.1 cm
H
48 in
121.9 cm
OAH
96 in
243.8 cm
Mounting Weight: Approximate: 5 lb (3 kg)
6FT
W
2 in
5.1 cm
H
72 in
182.9 cm
OAH
120 in
304.8 cm
Mounting Weight: Approximate: 10 lb (5 kg)
8FT
W
2 in
5.1 cm
H
96 in
243.8 cm
OAH
144 in
365.8 cm
Mounting Weight: Approximate: 10 lb (5 kg)
1/2FT
W
2 in
5.1 cm
H
6 in
15.2 cm
OAH
54 in
137.2 cm
Mounting Weight: Approximate: 5 lb (3 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request

1/2 FOOT NOMINAL FIXTURE
1/2FT-L10W | White 10W LED Light Engine

Delivered Lumens: 929

1 FOOT NOMINAL FIXTURE
1FT-L8W | White 8W LED Light Engine

Delivered Lumens: 743

2 FOOT NOMINAL FIXTURE
2FT-L8W | White 8W LED Light Engine

Delivered Lumens: 743

2FT-L16W | White 16W LED Light Engine

Delivered Lumens: 1,486

CUST_Out_2FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 8.0 - Max 16.0
LU   Min 743 - Max 1486
3 FOOT NOMINAL FIXTURE
3FT-L12W | White 12W LED Light Engine

Delivered Lumens: 1,115

3FT-L24W | White 24W LED Light Engine

Delivered Lumens: 2,230

CUST_Out_3FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 12.0 - Max 24.0
LU   Min 1115 - Max 2230
4 FOOT NOMINAL FIXTURE
4FT-L16W | White 16W LED Light Engine

Delivered Lumens: 1,486

4FT-L32W | White 32W LED Light Engine

Delivered Lumens: 2,973

CUST_Out_4FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 16.0 - Max 32.0
LU   Min 1486 - Max 2973
6 FOOT NOMINAL FIXTURE
6FT-L24W | White 24W LED Light Engine

Delivered Lumens: 2,230

6FT-L48W | White 48W LED Light Engine

Delivered Lumens: 4,459

CUST_Out_6FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 24.0 - Max 48.0
LU   Min 2230 - Max 4459
8 FOOT NOMINAL FIXTURE
8FT-L32W | White 32W LED Light Engine

Delivered Lumens: 2,973

8FT-L65W | White 65W LED Light Engine

Delivered Lumens: 6,039

CUST_Out_8FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 32.0 - Max 65.0
LU   Min 2973 - Max 6038

*For requests outside Min-Max range, please contact factory.

Voltage *

120-277V | Universal Voltage

Lamp Options *

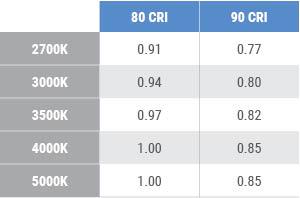

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR 1 | Lutron Athena Wireless Node, 1% Dimming
NX 1 | Current NX Wireless, 1% Dimming
NLTA 1 | Acuity nLight Air, 1% Dimming

1 Canopy dimensions may change for PSC and PSS mountings.

Diffuser *

DF_MA01 | Matte Acrylic Diffuser Lens (default)
OA | White Gloss Acrylic Diffuser
HP01- 1/2' | Silver Hand Painted Acrylic Diffuser
HP02- 1/2' | Beige Hand Painted Acrylic Diffuser
HP03- 1/2' | Amber Hand Painted Acrylic Diffuser
HP01- 1' | Silver Hand Painted Acrylic Diffuser
HP02- 1' | Beige Hand Painted Acrylic Diffuser
HP03- 1' | Amber Hand Painted Acrylic Diffuser
HP01- 2' | Silver Hand Painted Acrylic Diffuser
HP02- 2' | Beige Hand Painted Acrylic Diffuser
HP03- 2' | Amber Hand Painted Acrylic Diffuser
HP01- 3' | Silver Hand Painted Acrylic Diffuser
HP02- 3' | Beige Hand Painted Acrylic Diffuser
HP03- 3' | Amber Hand Painted Acrylic Diffuser
HP01- 4' | Silver Hand Painted Acrylic Diffuser
HP02- 4' | Beige Hand Painted Acrylic Diffuser
HP03- 4' | Amber Hand Painted Acrylic Diffuser
HP01- 6' | Silver Hand Painted Acrylic Diffuser
HP02- 6' | Beige Hand Painted Acrylic Diffuser
HP03- 6' | Amber Hand Painted Acrylic Diffuser
HP01- 8' | Silver Hand Painted Acrylic Diffuser
HP02- 8' | Beige Hand Painted Acrylic Diffuser
HP03- 8' | Amber Hand Painted Acrylic Diffuser

MA01
OA

Mounting *

Mounts to a standard 4" octagonal junction box. The PSC and CAC mountings utilize a white power cord. The CAS mounting has a 22.5° swivel and the PSS mounting swivels 45°. For PSC and PSS mountings, the canopy diameter varies depending on fixture height.

DF_PSC 2 | Power Supply Canopy with Cord Suspension (default)
CAS | 5.5" Canopy & Stem, Remote Supply
CAC | Power Cord Suspension with Remote Power Supply & 5.5" Canopy
PSS 2 | Power Supply Canopy & Stem

2 Canopy: 6"H = 6" dia., 1 - 3'H = 8" dia., 4 - 8'H = 10" dia.
PSC
CAS
CAC
PSS

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Options

This mounting option adds an adjustable aircraft cable to the end of the fixture (through the lens) and connects to the ceiling with a discreet bullet canopy. Mount vertically, horizontally, or any angle in between. See catalog SIP12154 for energized cable mounting options.

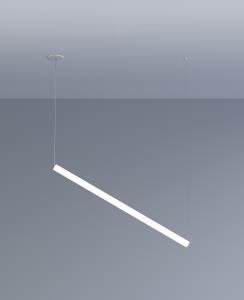

ANG 3 | Adjustable Angle Mount

3 ANG Not available with 8'H model or stem mounting
ANG

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
