Novato Globes
40% more delivered lumens | 9 sizes | Consistent luminance
AIP12380

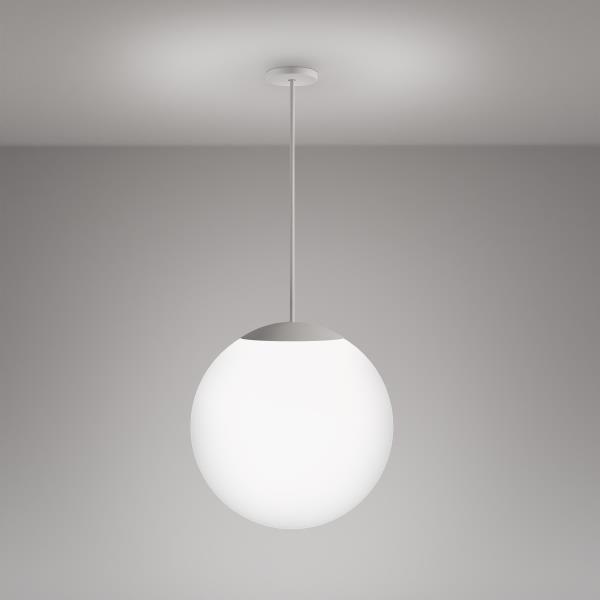

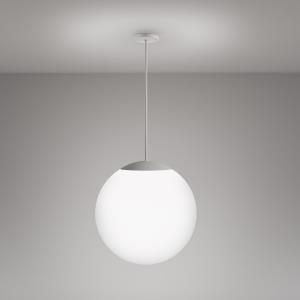

Novato Globes

Our exceptional Novato Globes are designed to elevate any space with unmatched versatility. Create stunning focal points or subtle accents in any room by choosing from nine distinct sizes – more than any other manufacturer.

Our innovative technology ensures consistent luminance across all sizes, allowing you to mix and match without worrying about disparities in brightness. Enjoy over 40% more delivered lumens than acrylic globes, providing a brilliant glow and superior illumination to enhance your design.

Built with impact-rated durability, these exquisite PolySatin luminaires are made to withstand daily wear and tear while maintaining their beauty and functionality.

Novato Globes AIP12380

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • 9 sizes to choose from for complete design freedom
  • Consistent luminance between all sizes
  • PolySatin diffuser allows for 40% more delivered lumens
  • All visible fasteners are flush mounted, providing a clean design
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: Static white, tunable white, or RGBW LED light engine
  • CRI: 80+, 90+
  • LUMEN MAINTENANCE: L80 = >60,000 Hrs.
  • EFFICACY: 121 lm/W
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K (static white); 2700K-6500K (tunable white); 3000K (RGBW)
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply standard for white light engines. RGBW has a remote DMX driver; max distance to the driver is 15' (includes OAH).
  • DIMMING: 0-10V controls standard to 1% on static white light engines. DALI-2 (DT8) standard for tunable white. DMX standard for RGBW. Other dimming options are available; contact factory.
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • DIFFUSER: One-piece, molded thermoplastic with a satin finish. UV inhibitor combined with thermoplastic material before molding.
  • CONSTRUCTION:  Aluminum housing
  • FINISH:  Housing and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors, brushed aluminum, or brass finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including different sizes
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

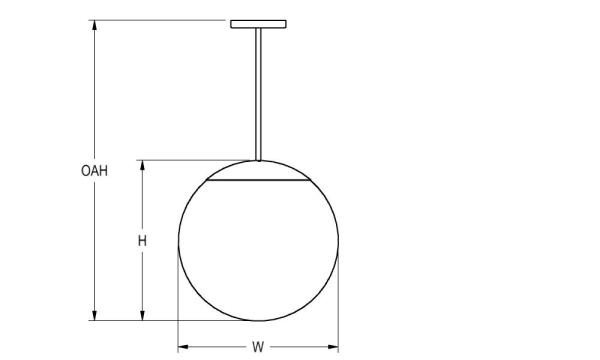

DIMENSIONS

Dimensions
10IN
W
10 in
25.4 cm
H
10 in
25.4 cm
OAH
58 in
147.3 cm
Mounting Weight: Approximate: 5 lb (3 kg)
12IN
W
12 in
30.5 cm
H
12 in
30.5 cm
OAH
60 in
152.4 cm
Mounting Weight: Approximate: 5 lb (3 kg)
14IN
W
14 in
35.6 cm
H
14 in
35.6 cm
OAH
62 in
157.5 cm
Mounting Weight: Approximate: 6 lb (3 kg)
16IN
W
16 in
40.6 cm
H
16 in
40.6 cm
OAH
64 in
162.6 cm
Mounting Weight: Approximate: 7 lb (4 kg)
18IN
W
18 in
45.7 cm
H
18 in
45.7 cm
OAH
66 in
167.6 cm
Mounting Weight: Approximate: 8 lb (4 kg)
20IN
W
20 in
50.8 cm
H
20 in
50.8 cm
OAH
68 in
172.7 cm
Mounting Weight: Approximate: 10 lb (5 kg)
22IN
W
22 in
55.9 cm
H
22 in
55.9 cm
OAH
70 in
177.8 cm
Mounting Weight: Approximate: 11 lb (5 kg)
24IN
W
24 in
61 cm
H
24 in
61 cm
OAH
72 in
182.9 cm
Mounting Weight: Approximate: 12 lb (6 kg)
27IN
W
27 in
68.6 cm
H
27 in
68.6 cm
OAH
75 in
190.5 cm
Mounting Weight: Approximate: 15 lb (7 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. White light engines are available in alternative wattages upon request.



10 INCH DIAMETER FIXTURE
10IN-L5W | Static White 5W LED Light Engine

Delivered Lumens: 606

10IN-L5W-T | Tunable White 5W LED Light Engine

Delivered Lumens: 606

10IN-10W | Static White 10W LED Light Engine

Delivered Lumens: 1,211

10IN-L10W-T | Tunable White 10W LED Light Engine

Delivered Lumens: 1,211

10IN-L9W-C 1 | RGBW 9W LED Light Engine

Delivered Lumens: 363
12 INCH DIAMETER FIXTURE
12IN-L7W | Static White 7W LED Light Engine

Delivered Lumens: 848

12IN-L7W-T | Tunable White 7W LED Light Engine

Delivered Lumens: 848

12IN-L14W | Static White 14W LED Light Engine

Delivered Lumens: 1,695

12IN-L14W-T | Tunable White 14W LED Light Engine

Delivered Lumens: 1,695

12IN-L14W-C 1 | RGBW 14W LED Light Engine

Delivered Lumens: 605
14 INCH DIAMETER FIXTURE
14IN-L10W | Static White 10W LED Light Engine

Delivered Lumens: 1,211

14IN-L10W-T | Tunable White 10W LED Light Engine

Delivered Lumens: 1,211

14IN-L19W | Static White 19W LED Light Enging

Delivered Lumens: 2,301

14IN-L19W-T | Tunable White 19W LED Light Engine

Delivered Lumens: 2,301

14IN-L22W-C 1 | RGBW 22W LED Light Engine

Delivered Lumens: 968
16 INCH DIAMETER FIXTURE
16IN-L12W | Static White 12W LED Light Engine

Delivered Lumens: 1,453

16IN-L12W-T | Tunable White 12W LED Light Engine

Delivered Lumens: 1,453

16IN-L24W | Static White 24W LED Light Engine

Delivered Lumens: 2,906

16IN-L24W-T | Tunable White 24W LED Light Engine

Delivered Lumens: 2,906

16IN-L29W-C 1 | RGBW 29W LED Light Engine

Delivered Lumens: 1,331
18 INCH DIAMETER FIXTURE
18IN-L16W | Static White 16W LED Light Engine

Delivered Lumens: 1,938

18IN-L16W-T | Tunable White 16W LED Light Engine

Delivered Lumens: 1,938

18IN-L31W | Static White 31W LED Light Engine

Delivered Lumens: 3,754
