Start building your product.
Specify your options and generate a personalized spec sheet.
FEATURES & BENEFITS
- Timeless design, modern performance
- Nostalgic feel
- Authentic glass opal diffuser
- Complimentary ceiling and wall mounted luminaires help you to carry out a consistent lighting design throughout a space
- Handcrafted in USA
- LIGHT SOURCE: White LED light engine or incandescent
- CRI: 80+ (contact factory for 90+)
- LUMEN MAINTENANCE: L70 = >50,000 Hrs.
- EFFICACY: 104 lm/W delivered
- CCT: 3000K, 3500K, or 4000K
- DRIVER: Class 2 power supply integrated in canopy. Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
- DIMMING: 0-10V controls standard to 1% on LED light engines
- INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
- DIFFUSER: Opal glass
- CONSTRUCTION: Aluminum or brass
- EMERGENCY: Emergency battery remote optional
- FINISH: Choose from more than 30 thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
- MODIFICATIONS: Consult factory for all modification requests
- APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications
Approximate: 10 lb (5 kg)
Required Field *
Please Note: Default specifications "DF_XXX" will not appear in the ordering code.
LIGHT SOURCE *
To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.
L22W | White 22W LED Light Engine
Delivered Lumens: 2,290
L43W | White 43W LED Light Engine
Delivered Lumens: 4,476
1 Incandescent Lamp(s) Not Included
2 For incandescent light source only
Lamp Options *

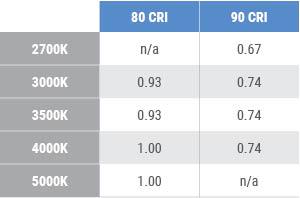

Delivered lumens shown are at 3500K and 4000K CCT; apply multiplier for delivered lumens at other CCT.
3 Apply .93 multiplier for delivered lumens
Mounts to standard 4" octagonal junction box.
Other Than Standard Options

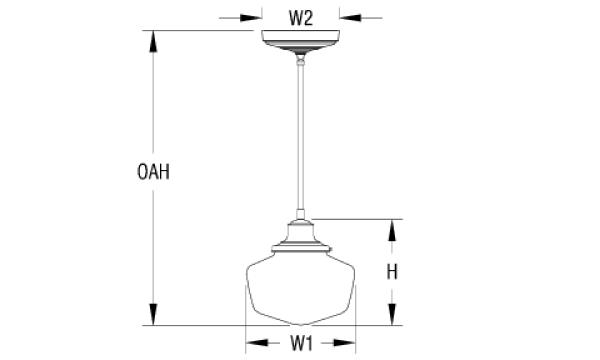

Specify overall height required from ceiling to the bottom of the fixture.
| Pendant suspension length other than standard
