Harbor Exterior - Basic
AEW8072 22 in
Harbor Exterior - Basic

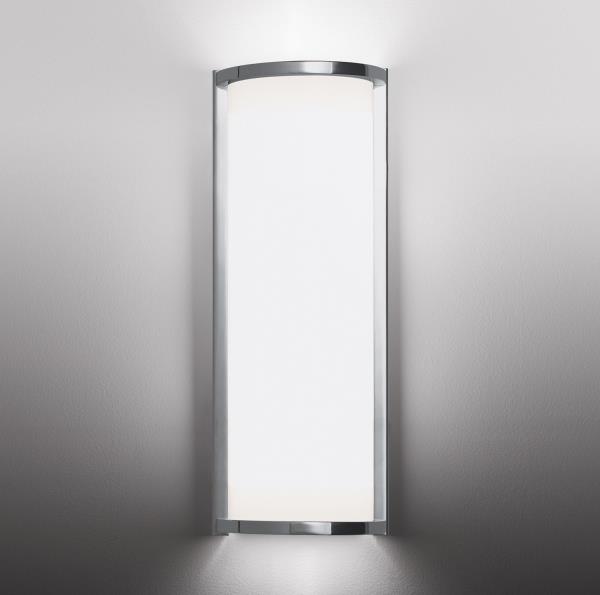

The Harbor half cylinder sconce features a clean look for a simple architectural statement. The clean lines of this exterior sconce are perfect for multiple applications including offices, retail buildings, and health care facilities. Choose from a palette of both painted and metal finishes.
Harbor Exterior - Basic AEW8072

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Opal top and bottom lens protects fixture and provides uniform illumination
  • Specifying mounting orientation and lens removal method allows product to be used in almost any application
  • Interior family fixtures available to carry a consistent lighting design throughout a project
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • LUMEN MAINTENANCE:  L70 life = 50,000+ hours
  • CCT:  3000K, 3500K, or 4000K
  • DRIVER:  Integral Class II power supply standard
  • DIMMING:  0-10V controls standard to 10% on LED light engines
  • EMERGENCY:  Emergency battery remote optional
  • DIFFUSER: Formed opal acrylic lens
  • MOUNTING: Mounts to standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in wet locations

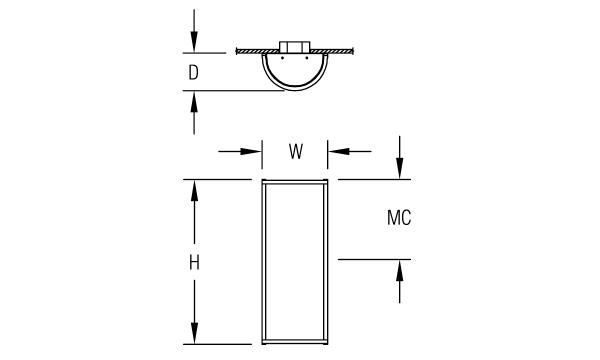

DIMENSIONS

Dimensions
W
9 in
22.9 cm
H
22 in
55.9 cm
D
5 in
12.7 cm
MC
11 in
27.9 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L22W | White 22W LED Light Engine

Delivered Lumens: 1,439

L43W | White 43W LED Light Engine

Delivered Lumens: 2,879


Voltage

120-277V | Universal Voltage

Lamp Options

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Orientation

DF_VERT | Vertical (default)
HORZ | Horizontal

End Caps

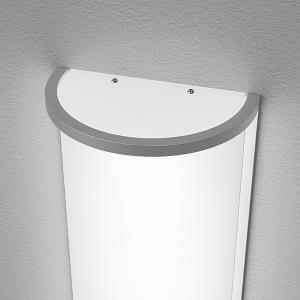

DF_LUM | Luminous (default)

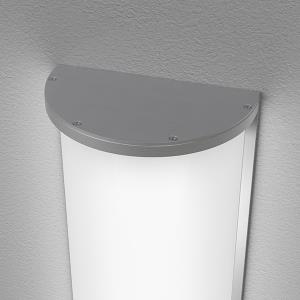

SLD | Solid

LUM
SLD

Lens Installation

INST2 includes ball nuts on vertical bars to remove lens.

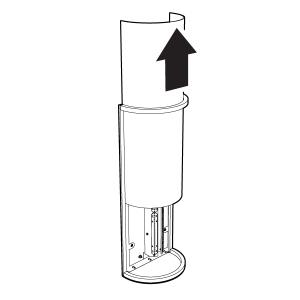

DF_INST1 | Slides Out (default)

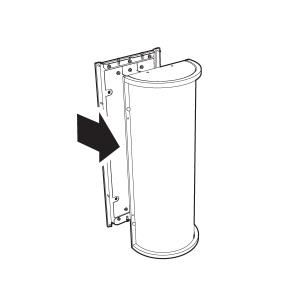

INST2 | Pulls Straight Out
INST1
INST2

DownLoad my spec sheet Request a modification
