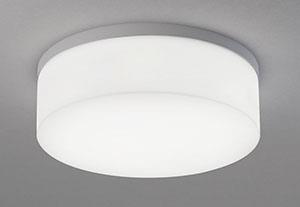

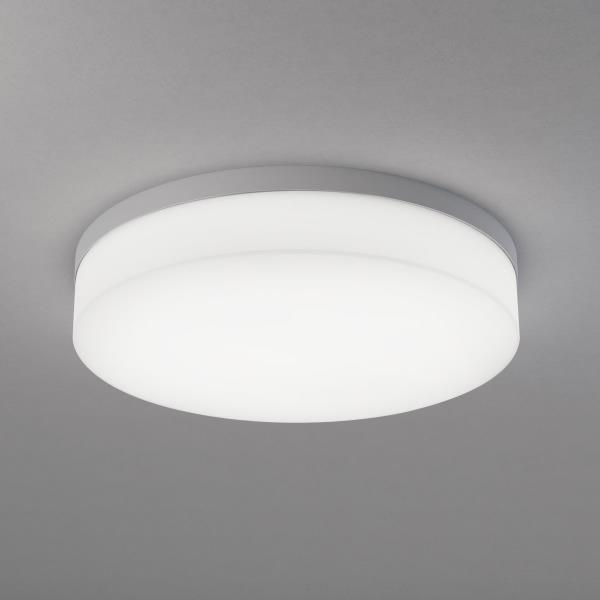

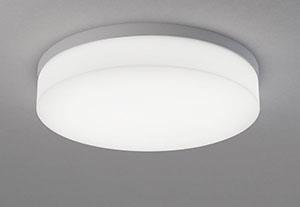

Novato Drum - Ceiling
AIC11866 36 in
Novato Drum - Ceiling
While highly functional, the Novato family provides a playful twist to make a lasting impression. Versatility is the main strength of this collection as they are perfectly suited for a wide range of modern or traditional environments. Customize your visual environment with the Novato Drum by choosing a matte acrylic diffuser or from four fabric options. Available in 16", 24", 36", and 48" diameters.
Novato Drum - Ceiling AIC11866

Start building your product.

Specify your options and generate a personalized spec sheet.


  • Diffuser available in two heights (see line art for details)
  • Optional fabric lenses are cleanable
  • Handcrafted in USA


  • LIGHT SOURCE:  Static white, tunable white, or RGBW LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • CCT:  3000K, 3500K, or 4000K (static white); 2700K-6500K (tunable white); 3000K (RGBW)
  • VOLTAGE:  120-277V standard
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING:  1% minimum dim level standard for static white light engines. 0.1% standard for tunable white and RGBW light engines
  • CONTROLS: 0-10V standard for static white light engines; Lutron Athena, Current NX, and nLight AIR optional. DALI-2 (DT8) standard for tunable white, and DMX standard for RGBW. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • DIFFUSER: Choose matte opal or from four fabrics
  • MOUNTING: Mounts to a standard 4" octagonal junction box
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • FINISH:  Tailor the mounting plate to your space. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

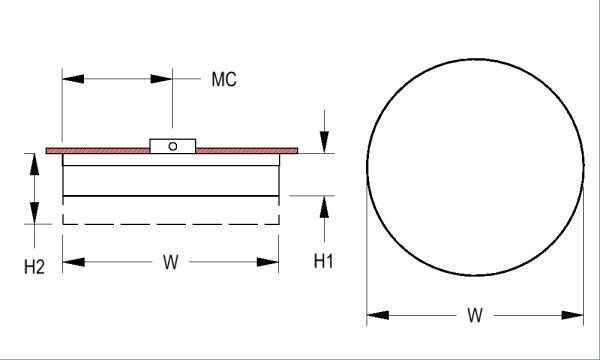

36 in
91.4 cm
9.2 in
23.4 cm
13.2 in
33.5 cm
18 in
45.7 cm
Mounting Weight
Approximate: 40 lb (19 kg)
Your Configuration:
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.


Job Name:


To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. White light engines are available in alternative wattages upon request.

L100W | Static White 100W LED Light Engine

Delivered Lumens: 7,924
L100W-T | Tunable White 100W LED Light Engine

Delivered Lumens: 7,924
L201W | Static White 201W LED Light Engine

Delivered Lumens: 15,848
L201W-T | Tunable White 201W LED Light Engine

Delivered Lumens: 15,848
L136W-C 1 | RGBW 136W LED Light Engine

Delivered Lumens: 2,992

1 RGBW delivered lumens shown are for white only at 3000K

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s. Tunable White delivered lumens vary +/-5% from the values shown depending on the color temperature selected.

2700K | 2700K CCT
3000K | Static White 3000K CCT
3500K | Static White 3500K CCT
4000K | Static White 4000K CCT
5000K | 5000K CCT
TUN | Tunable White 2700K-6500K CCT (This is the only choice when a tunable white light source is selected in Section A)
RGBW 2 | RGBW 3000K CCT (This is the only choice when an RGBW light source is selected in Section A)


DF_80 | (default)

2 Use DMX/DALI programming for alternate color temps; see programming guide

Controls *

Extended lead times may apply for controls other than 0-10V, DALI-2, or DMX. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DIM1 | 0-10V Control, 1% Dimming
AWNR 3 | Lutron Athena Wireless Node, 1% Dimming
NX 3 | Current NX Wireless, 1% Dimming
NLTA 3 | Acuity nLight Air, 1% Dimming
DALI 4 | DALI-2 DT8 Control, 0.1% Dimming
DMX 5 | DMX Control, 0.1% Dimming

3 Not available with RGBW or Tunable White light sources.
4 Standard with Tunable White light source.
5 Standard with RGBW light source.

Diffuser Height *

Please choose one:

H07.5 | 7.5" Height
H11.5 | 11.5" Height


Diffuser Finish *

Please choose one:

FB00 | Matte Opal Diffuser
FB01 | Fabric - Textured White Linen
FB02 | Fabric - Rapids
FB03 | Fabric - Chocolate Linen
FB05 | Fabric - Jute Linen



10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Request a modification
