FEATURES & BENEFITS

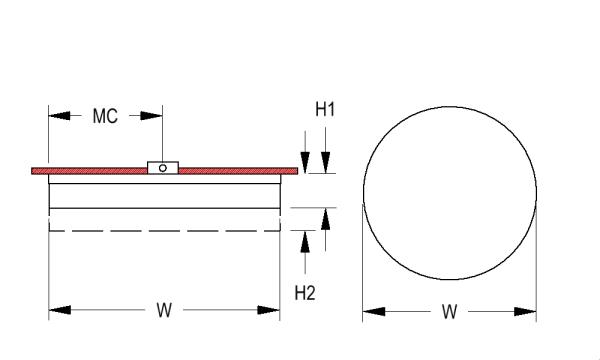

- Diffuser available in two heights (see line art for details)
- Optional fabric lenses are cleanable
- Handcrafted in USA
- LIGHT SOURCE: White LED light engine
- LUMEN MAINTENANCE: L70 = >50,000 Hrs.
- CCT: 3000K, 3500K, or 4000K
- VOLTAGE: 120-277V standard
- DRIVER: Integral Class II power supply standard
- DIMMING: 0-10V controls standard to 1% on LED light engines
- DIFFUSER: Choose matte opal or from four fabrics
- MOUNTING: Mounts to a standard 4" octagonal junction box
- EMERGENCY: Emergency battery remote optional
- FINISH: Tailor the mounting plate to your space. Choose from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
- MODIFICATIONS: Consult factory for all modification requests
- APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications
Approximate: 60 lb (28 kg)
Required Field *
Please Note: Default specifications "DF_XXX" will not appear in the ordering code.
LIGHT SOURCE *
To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.
L165W | White 165W LED Light Engine
Delivered Lumens: 13,018
L330W | White 330W LED Light Engine
Delivered Lumens: 26,037
Lamp Options *
Delivered lumens shown are at 4000K CCT; apply multiplier for delivered
lumens at other CCT.
1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens
Diffuser Height *
Please choose one:
Diffuser Finish *
Please choose one:
