Vienna - Ceiling
AIC8856 24 in
Vienna - Ceiling
Our cone collection offers a look previously not available in the market with high-output optical packages. We've taken difficult geometric volume and created luminous visual comfort and high-output indirect lighting in a contemporary form. The family includes pendant, chandelier, wall-mounted, and ceiling models to illuminate and enhance environments where you are looking for a distinct, strong form and proven optical performance.
Vienna - Ceiling AIC8856

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Opal acrylic diffuser lens enhances a space with filtered illumination
  • Spun metal trim ring adds high-quality, decorative element to fixture
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • LUMEN MAINTENANCE:  L70 life = 50,000+ hours
  • CCT:  3000K, 3500K, or 4000K
  • DRIVER:  Integral Class II power supply standard
  • DIMMING:  0-10V controls standard on LED light engines
  • EMERGENCY:  Emergency battery remote optional
  • DIFFUSER:  Opal acrylic is standard; matte acrylic and hand painted lenses optional
  • CONSTRUCTION:  Formed metal construction provides durable protection for internal components and is recyclable
  • MOUNTING:  Aluminum cover fits over a standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

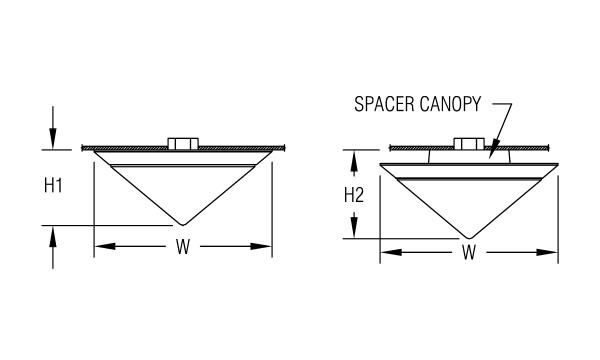

DIMENSIONS

Dimensions
W
23.7 in
60.2 cm
H1
10 in
25.4 cm
H2
12 in
30.5 cm
Mounting Weight
Approximate: 25 lb - 12 (kg)
PRODUCT BUILDER | Your Selections:
clear
--None --

Required Field *

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L29W | White 29W LED Light Engine

Delivered Lumens: 1,476

L57W | White 57W LED Light Engine

Delivered Lumens: 2,952


Voltage

120-277V | Universal Voltage

Lamp Options

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Diffuser

DF_OA | Opal Acrylic Diffuser Lens (default)
HP01 | Silver Hand Painted Acrylic Diffuser
HP02 | Beige Hand Painted Acrylic Diffuser
HP03 | Amber Hand Painted Acrylic Diffuser
MA01 | Matte Acrylic Diffuser Lens

OA
HP01
HP02
HP03
MA01

Bowl Options

FIN | Finial

Canopy

SP | Canopy Spacer

Options

F | Fusing

DownLoad my spec sheet Request a modification
