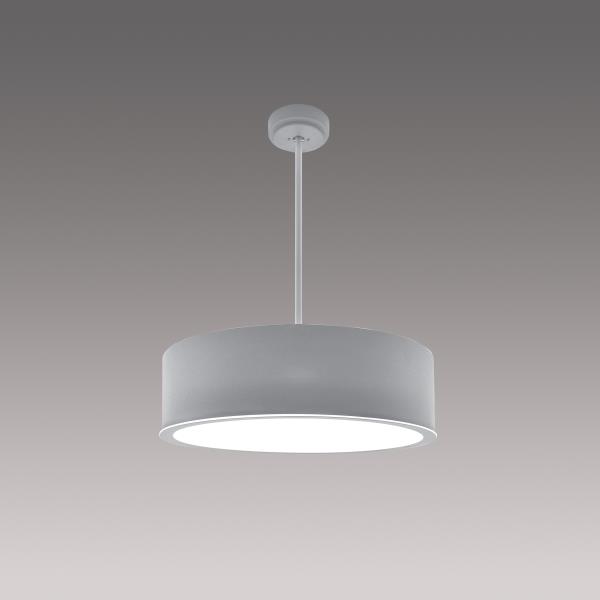

The Loris is a solid metal drum that features direct distribution with some uplight. There is an option that allows only direct light, if your application requires it. Its inset spun-metal trim ring creates a defining rim of light around the bottom diffuser and a unique design edge. Two-dimensional accents are available in art deco and arts & crafts styles. Or choose the basic version for a clean and contemporary look. Loris' aluminum housing is painted and can be customized to match any decor. Mix and match sizes, colors, or heights to create a unique visual statement. Available in 24", 36" and 48" diameters.
Loris - 24", 36", 48" AIP11422

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • 85% direct and 15% indirect lighting provides functional illumination while providing an uplight component to eliminate the "cave effect" of dark ceilings
  • Highly transmissive diffusing acrylic enhances spaces with filtered illumination
  • Spun-metal trim ring and optional solid metal accents add high-quality, decorative elements to fixture
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • LUMEN MAINTENANCE:  L70 life = 50,000+ hours
  • EFFICACY:  88 lm/W delivered
  • CCT:  3000K, 3500K, or 4000K
  • DRIVER:  Integral Class II power supply standard
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • EMERGENCY:  Emergency battery remote optional
  • TOP LENS:  Any upward facing LEDs will be covered with a protective lens
  • CONSTRUCTION:  Formed metal construction provides durable protection for internal components and is recyclable
  • FINISH:  Choose from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including RGB
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

DIMENSIONS

Dimensions
W
24 in
61 cm
H
7.5 in
19 cm
OAH
36 in
91.4 cm
Mounting Weight
Approximate: 50 lb (23 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L57W | White 57W LED Light Engine

Delivered Lumens: 5,028

L115W | White 115W LED Light Engine

Delivered Lumens: 10,057


Voltage

120-277V | Universal Voltage

Lamp Options

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Light Source Option

DL 3 | Downlight Only

3 Luminaire total lumens and wattage decrease by 15%.

Mounting

Mounts to standard 4" octagonal junction box with auxiliary mounting holes. Stem mounting features a 45 degree swivel.

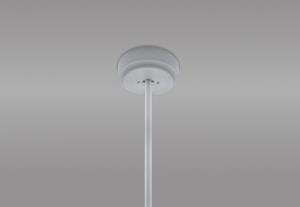

DF_STM | 6.5" Canopy with Stem Mount (default)

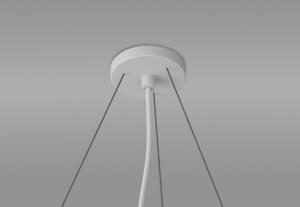

KA04 | 8" Canopy with Angled Aircraft Cable Mount

STM
KA04

Accents *

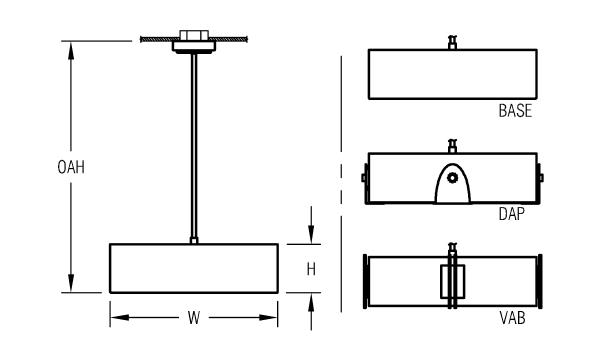

See line art for illustrations.

BASE | Base Model No Accents

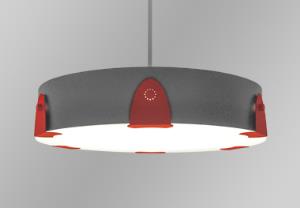

DAP | Decorative Accent Panel

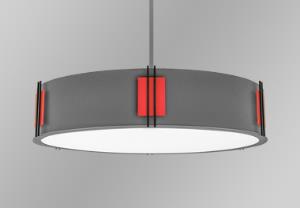

VAB | Vertical Accent Bars

BASE
DAP
VAB

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
OAH
