Loris - 24", 36, 48"
Loris - 24", 36", 48"
Loris - 24", 36", 48"
Loris - 24", 36", 48"
Loris - 24", 36", 48"
AIP11424 48.00 in
Loris - 24", 36", 48"

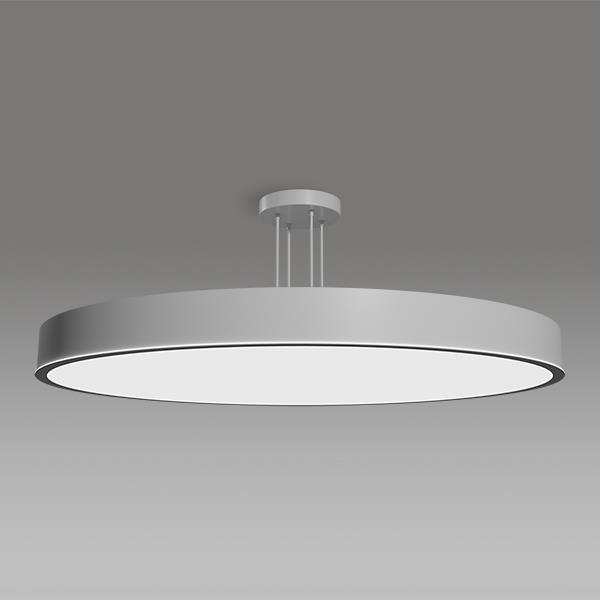

Brighten your design with this high-quality metal drum pendant that can be painted to match any décor. Specify it with a direct/indirect distribution that adds light to the ceiling plane or choose direct-only depending on the application. Its inset spun-metal trim ring creates a defining rim of light around the bottom diffuser – adding a unique design detail. Available in five diameters ranging from 9” to 48”, the Loris family gives you lots of options to mix and match sizes, colors, and mounting heights to create a unique visual statement.
Loris - 24", 36", 48" AIP11424

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • A clean, modern form with impressive performance
  • Highly transmissive diffuser enhances spaces with soft and even illumination
  • No visible hot spots
  • Efficacy up to 99 lm/W
  • Optional uplight component helps eliminate the “cave effect”
  • Spun-metal trim ring adds a high-quality decorative element
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  Up to 99 lm/W delivered
  • CCT:  3000K, 3500K, or 4000K
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING:  0-10V controls standard  to 1% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY:  Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • TOP LENS:  Any upward facing LEDs will be covered with a protective lens
  • CONSTRUCTION:  Formed metal construction provides durable protection for internal components and is recyclable
  • FINISH:  Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including RGB
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

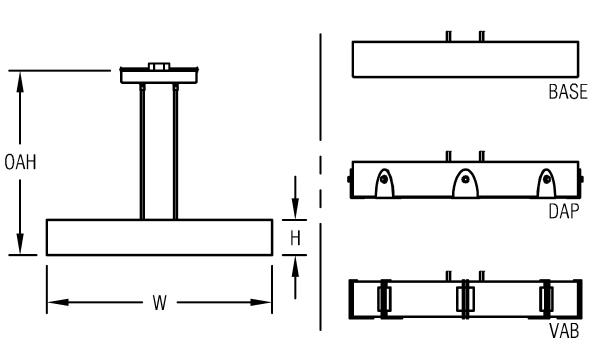

DIMENSIONS

Dimensions
W
48 in
121.9 cm
H
7.5 in
19 cm
OAH
36 in
91.4 cm
Mounting Weight
Approximate: 75 lb (35 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L86W | Direct Only - 86W LED Light Engine

Delivered Lumens: 11,249

L115W | Direct/Indirect - White 115W LED Light Engine

Delivered Lumens: 14,911

L172W | Direct Only - White 172W LED Light Engine

Delivered Lumens: 22,498

L229W | Direct/Indirect - White 229W LED Light Engine

Delivered Lumens: 29,822


Voltage *

120-277V | Universal Voltage

Lamp Options *

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

2700K | 2700K CCT
3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

CRI *

80 | (default)
90

Mounting *

Mounts to standard 4" octagonal junction box with auxiliary mounting holes. KA04 option features field adjustable aircraft cables that allow the fixture to be mounted at an application appropriate height (up to OAH). Cables must be at an angle greater than or equal to 45° to fixture.

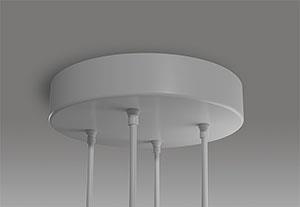

DF_STM | 16.3" Canopy with Stem Mount (default)

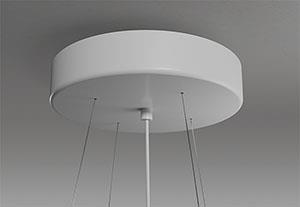

KA04 | 16.25" Canopy with Angled Aircraft Cable Mount

STM
KA04

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Accents *

See line art for illustrations.

BASE | Base Model No Accents
DAP | Decorative Accent Panel
VAB | Vertical Accent Bars

BASE
DAP
VAB

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
