A cornerstone of our luminous forms collection, Novato Ring is renowned for its even, three-sided illumination, versatility, and high performance. With efficacy over 100 lumens per watt delivered, it can often be the only light source required in a space, providing both the aesthetics and the performance you require. Available in a wide range of configurations, Novato Rings are well-suited for a range of environments from modern to traditional. Its luminous form is ideal for larger scale spaces including atriums, open offices, schools, and cafeterias. Hang as a pendant or cluster different sizes at varying heights to enhance any visual environment. Or create interlocking, orbit, or tiered chandeliers. Available in 2' to 10' diameters; other sizes available upon request.
Novato Ring - Pendant AIP11849

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Fully enclosed three-sided luminous form brightens horizontal and vertical planes
  • Provides functional lighting with comfortable luminance levels
  • Hand-fabricated construction maintains crisp, clean edges
  • Diffuser available in 5” and 10” heights
  • Add a decorative accent with optional color bands
  • Choose matte opal diffuser or from four fabrics
  • Specialized high-transmission diffuser offers higher delivered lumens while providing uniform illumination
  • Monopoint or straight cable mounting options
  • Mix and match with the entire Novato Family
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  102 lm/W delivered
  • CCT:  3000K, 3500K, or 4000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Class II power supply integrated in canopy or remote. Max distance to the driver is 15' (includes OAH). For extended distances, contact factory.
  • DIMMING:  0-10V controls standard to 10% on LED light engines
  • CONSTRUCTION: Seamless bottom and minimal lap joint(s) on inner and outer surfaces; edges are fused with solvent that permanently binds acrylic
  • FINISH:  Top plate is always white (PT01). Canopy and mounting components finished to match your specification. To specify separately, contact factory. Choose from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.  Color band options are specified separately.
  • MODIFICATIONS: Consult factory for all modification requests, including 2"x2" cross-section rings
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

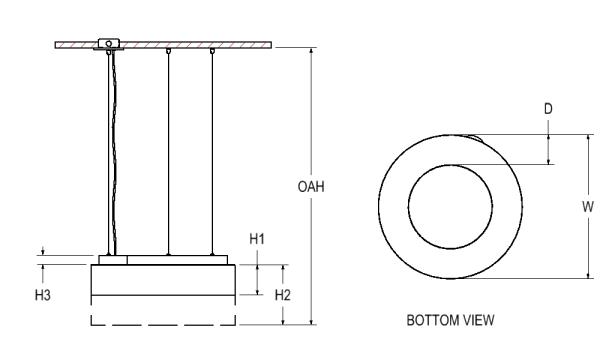

DIMENSIONS

Dimensions
W
60 in
152.4 cm
H1
5 in
12.7 cm
H2
10 in
25.4 cm
D
5 in
12.7 cm
OAH
54 in
137.2 cm
Mounting Weight
Approximate: 35 lb (16 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L97W | White 97W LED Light Engine

Delivered Lumens: 9,900

L194W | White 194W LED Light Engine

Delivered Lumens: 19,800


Voltage *

120-277V | Universal Voltage

Lamp Options *

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Diffuser Height *

Please choose one:

H05 | 5" Height
H10 | 10" Height

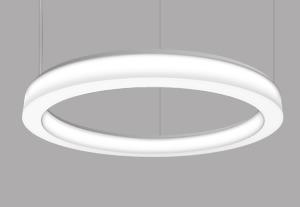

H05

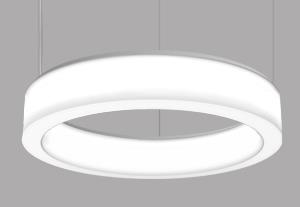

H10

Diffuser Finish *

Fabrics are extruded into the acrylic and will not separate from the diffuser. They are washable. Please choose one:

FB00 | Matte Opal Diffuser
FB01 | Fabric - Textured White Linen
FB02 | Fabric - Rapids
FB03 | Fabric - Chocolate Linen
FB05 | Fabric - Jute Linen

FB00
FB01
FB02
FB03
FB05

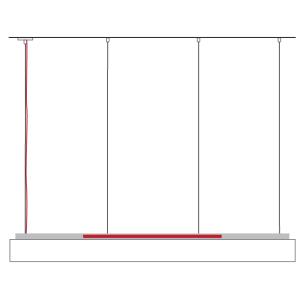

Mounting *

Mounts to standard 4" octagonal junction box with auxiliary mounting holes. Stem mountings feature a 45 degree swivel and meet earthquake requirements. Power cord is white.

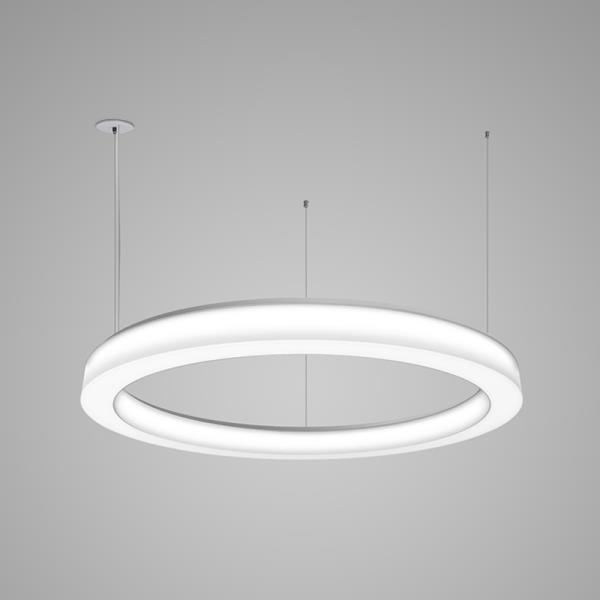

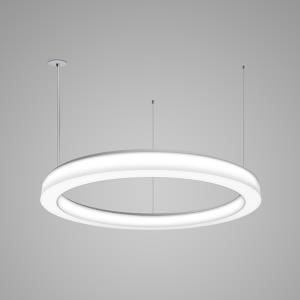

CAA | 5” Flat Canopy, Remote Power Supply, 3 Straight Aircraft Cables & Power Cord

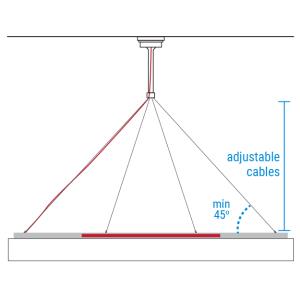

CAS 3 | 6.75” Canopy, Remote Power Supply, Stem with 3 Aircraft Cables & Power Cord to Hub
PSA | 16.25” Canopy with Power Supply, 3 Straight Aircraft Cables & Power Cord
PSS 3 | 16.25” Canopy with Power Supply, Stem with 3 Aircraft Cables & Power Cord to Hub

3 Finished ceiling to bottom of the hub is constant at 17" regardless of OAH. Minimum adjustable cable length is half of fixture width (W). See line art.
CAA
CAS
PSA
PSS

Color Band Options

Color bands are opaque. The finish is specified separately. When choosing this option, use the associated photometrics provided. For MB01 and MB02 options, Matte Opal Acrylic (FB00) is the standard diffuser finish. Consult factory for fabric and color band combinations.

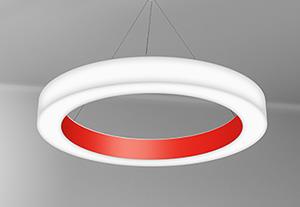

MB01 4 | Color Band Inner

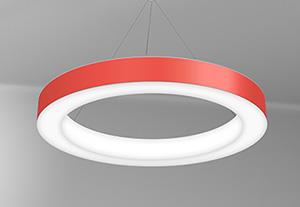

MB02 5 | Color Band Outer

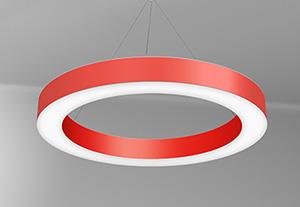

MB03 6 | Color Band Inner & Outer

4 Delivered lumens are 83% of luminous form output shown above
5 Delivered lumens are 64% of luminous form output shown above
6 Delivered lumens are 53% of luminous form output shown above. To specify different finishes for the inner and outer color bands, consult factory.
MB01
MB02
MB03

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
OAH

Request a modification
