Start building your product.
Specify your options and generate a personalized spec sheet.
FEATURES & BENEFITS
- Fully enclosed three-sided luminous form brightens horizontal and vertical planes
- Provides functional lighting with comfortable luminance levels
- Hand-fabricated construction maintains crisp, clean edges

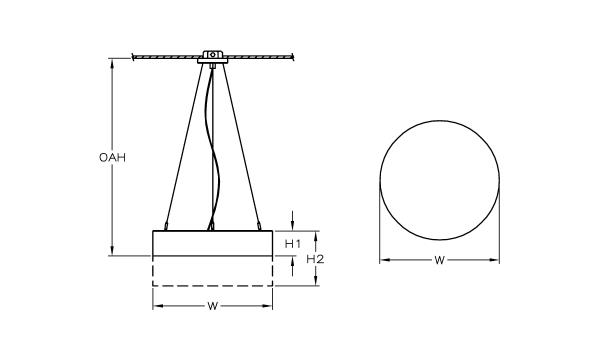

- Diffuser available in two heights (see line art for details)
- Optional fabric lenses are cleanable
- Hang individually or consult factory to arrange in tiered configurations
- Handcrafted in USA
- LIGHT SOURCE: White LED light engine
- CRI: 80+ (contact factory for 90+)
- LUMEN MAINTENANCE: L70 = >50,000 Hrs.
- CCT: 3000K, 3500K, or 4000K
- VOLTAGE: 120-277V standard
- DRIVER: Integral Class 2 power supply standard
- DIMMING: 0-10V controls standard to 1% on LED light engines
- EMERGENCY: Emergency battery remote optional
- CONSTRUCTION: Seamless bottom; minimal lap joint(s) on outer surfaces; edges are fused with solvent that permanently binds acrylic
- FINISH: Tailor the canopy to your space. Choose from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
- MODIFICATIONS: Consult factory for all modification requests, including straight cable mounting
- APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications
Approximate: 25 lb (12 kg)
Required Field *
Please Note: Default specifications "DF_XXX" will not appear in the ordering code.
|Select configurations of this product are available to ship within 10 business days after release, denoted by the Quick Ship icon . Quantity is limited to 5 units; contact factory to discuss larger requests. Product availability will be confirmed within 24 hours after an order is received; check your Open Orders report for ship date confirmation. Send orders to SPIteam@spilighting.com and mark your subject as "Quick Ship." Orders MUST contain "QWK" in the ordering code.|
LIGHT SOURCE *
To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.
L45W | White 45W LED Light Engine
Delivered Lumens: 3,570
L89W | White 89W LED Light Engine
Delivered Lumens: 7,140
120-277V | Universal Voltage
Lamp Options *
Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.
1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens
Diffuser Height *
Please choose one:
Diffuser Finish *
Please choose one:
FB00 | Matte Opal Diffuser
Mounts to standard 4" octagonal junction box. 6" canopy features field adjustable aircraft cables that allow the fixture to be mounted at an application appropriate height (up to OAH). Power cord is white.
DF_AC | Aircraft cable and power cord (default)
Other Than Standard Options
Specify overall height required from ceiling to the bottom of the fixture. Quick Ship max OAH is 104".
| Pendant suspension length other than standard
