AIP12042 18 in
Spheres

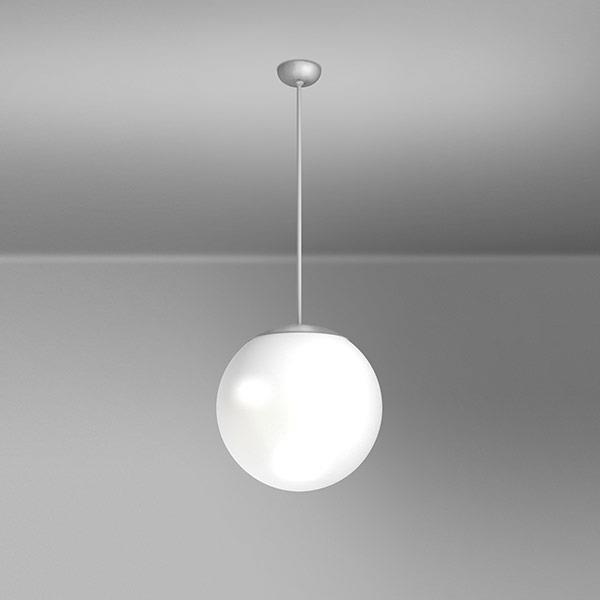

Designed with the timeless appeal of elementary geometry, Spheres is a modern revival of a classic form that symbolizes completeness, unity, and balance. Every point on its surface is equidistant from its center. The illuminated satin diffuser provides gentle even light that is pleasing to the eye, while providing an overall efficacy of 115 lumens per watt delivered with a slight emphasis of downward light. Available in 18", 24", and 30" diameters.
Spheres AIP12042

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • White matte acrylic diffuser enhances a space with filtered, uniform illumination
  • The double semi-sphere diffuser is joined together and then finished with an opal matte treatment to create a unified look to the globe
  • The light engine is located at the center of the sphere, rather than the top, for the most even illumination
  • Standard overall height of 48" allows designs to incorporate multiple sizes while maintaining a clearly defined lighting plane or vary OAH as desired
  • Different sizes and mounting heights can be used to create visual arrays and three-dimensional collages
  • All visible fasteners are flush mounted, providing a clean design
  • Available in high and low wattages; both options are great for providing usable light while minimizing power consumption
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • LUMEN MAINTENANCE:  L70 life = 50,000+ hours
  • EFFICACY:  115 lm/W delivered
  • CCT:  3000K, 3500K, or 4000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Integral Class II power supply standard
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • DIFFUSER: UV-stabilized acrylic
  • CONSTRUCTION:  Aluminum housing
  • FINISH:  Housing and mounting components finished to match. To specify separately, contact factory. Choose from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including RGB
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

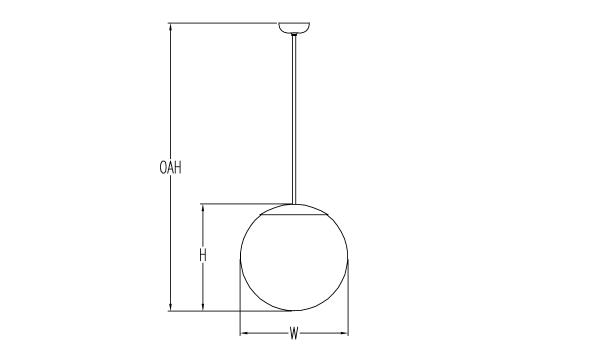

DIMENSIONS

Dimensions
W
18 in
45.7 cm
H
18 in
45.7 cm
OAH
48 in
121.9 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L22W | White 22W LED Light Engine

Delivered Lumens: 2,521

L43W | White 43W LED Light Engine

Delivered Lumens: 5,042


Voltage *

120-277V | Universal Voltage

Lamp Options *

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Mounting *

Mounts to standard 4" octagonal junction box. Canopy is 5.5” diameter with a 45 degree swivel. Aircraft cable mount features a white power cord. Field adjustable aircraft cable allows the fixture to be mounted at an application appropriate height (up to OAH). Choose a mounting from below:

DF_STM | Stem Mount (default)
AC | Aircraft Cable & Power Cord Mount

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
OAH
