AIP12084 96.00 in

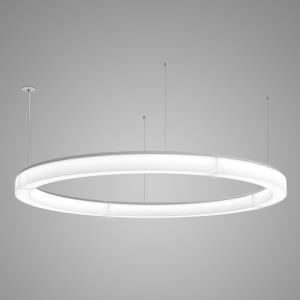

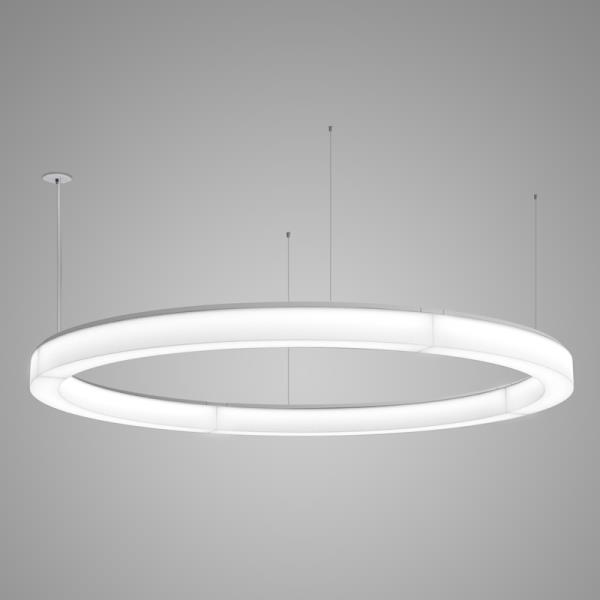

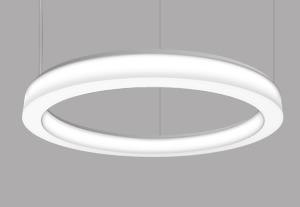

Novato Ring - Pendant
A cornerstone of our luminous forms collection, Novato Ring is renowned for its uniform, three-sided illumination, versatility, and high performance. With efficacy over 100 lumens per watt delivered, it can often be the only light source needed in a space, providing both the aesthetics and the performance you require. The luminaire’s 5” cross-section is ideal for mid to high ceiling applications. They look great individually or in patterns. We can also help you create interlocking, orbit, and tiered chandeliers. Novato Ring pendants are available in the widest range of sizes on the market – from 2' to 20'. Other sizes are available upon request.
Novato Ring - Pendant AIP12084

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Fully enclosed three-sided luminous form brightens horizontal and vertical planes
  • 70% direct/30% indirect distribution
  • Provides functional lighting with comfortable luminance levels
  • Specialized high-transmission diffuser offers higher delivered lumens while providing uniform illumination
  • Crisp, clean edges give the shape a clear definition
  • Diffuser available in 5” or 10" heights
  • Add a decorative accent with optional color bands
  • Choose Matte Opal Diffuser or from four fabrics
  • Segmented for easy transportation and installation
  • Monopoint or straight cable mounting options
  • Just one power drop
  • Mix and match with the entire Novato Family
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine (contact factory for RGBW or Tunable White)
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L80 = >72,000 Hrs.
  • EFFICACY: 102 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • CONSTRUCTION:  Edges are fused with solvent that permanently binds acrylic. Ships in four segments. Segments are connected by powerful magnetics and secured with a mechanical connection. Plug & play wiring between sections expedites installation.
  • FINISH: Canopy and mounting components finished to match your specification. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.  Color band options are specified separately. Thering's top plate and channel are painted Super White (PT01).
  • MODIFICATIONS: Consult factory for all modification requests, including RGBW or Tunable White, remote drivers, or 2"x2" cross-section rings
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

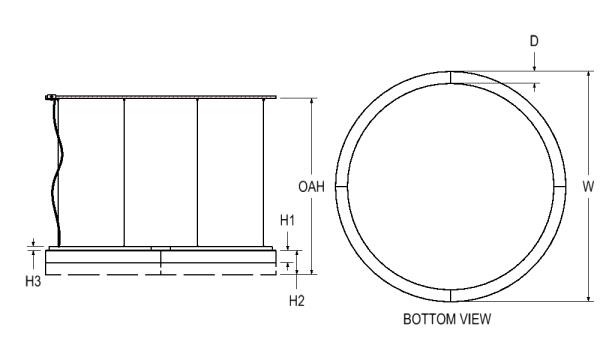

DIMENSIONS

Dimensions
W
96 in
243.8 cm
H1
5 in
12.7 cm
H2
10 in
25.4 cm
H3
1.5 in
3.8 cm
D
5 in
12.7 cm
OAH
80 in
203.2 cm
Mounting Weight
Approximate: 45 lb (21 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternate wattages available upon request.

L155W | White 155W LED Light Engine

Delivered Lumens: 15,835

L310W | White 310W LED Light Engine

Delivered Lumens: 31,670


Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR | Lutron Athena Wireless Node, 1% Dimming
NX | Current NX Wireless, 1% Dimming
NLTA | Acuity nLight Air, 1% Dimming

Diffuser Height *

H05 | 5" Height
H10 | 10" Height

H05
H10

Diffuser Finish *

Fabrics are extruded into the acrylic and will not separate from the diffuser. They are washable. Please choose one:

FB00 | Matte Opal Diffuser
FB01 | Fabric - Textured White Linen
FB02 | Fabric - Rapids
FB03 | Fabric - Chocolate Linen
FB05 | Fabric - Jute Linen

FB00
FB01
FB02
FB03
FB05

Mounting

Mounts to standard 4" octagonal junction box with auxiliary mounting holes. Field adjustable aircraft cables allow fixtures to be mounted at an application appropriate height (up to OAH). Remote mounting options available; contact factory.

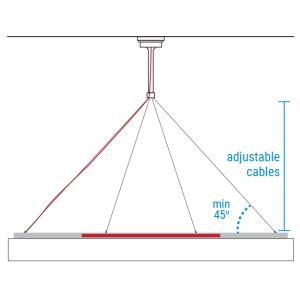

MIA 1 | 6.75" Canopy (45° swivel), Stem to Hub, 8 Aircraft Cables & White Power Cord

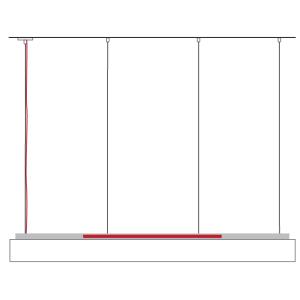

SIA | 5" Flat Canopy, 8 Straight Aircraft Cables & White Power Cord

1 Finished ceiling to bottom of the hub is constant at 17" regardless of OAH. Minimum adjustable cable length is half the diameter of the ring. Cables must be at least 45° to the fixture.
MIA
SIA

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Color Band Options

Color bands are opaque. The finish is specified separately. When choosing this option, use the associated photometrics provided. For MB01 and MB02 options, Matte Opal Diffuser (FB00) is the standard finish. Consult factory for color band combinations.

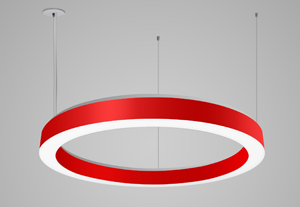

MB01 2 | Color Band Inner

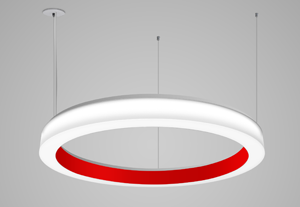

MB02 3 | Color Band Outer

MB03 4 | Color Band Inner & Outer

2 Delivered lumens are 83% of luminous form output shown above
3 Delivered lumens are 64% of luminous form output shown above
4 Delivered lumens are 53% of luminous form output shown above. To specify different finishes for the inner and outer color bands, consult factory.
MB01
MB02
MB03

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
