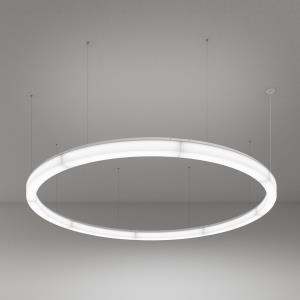

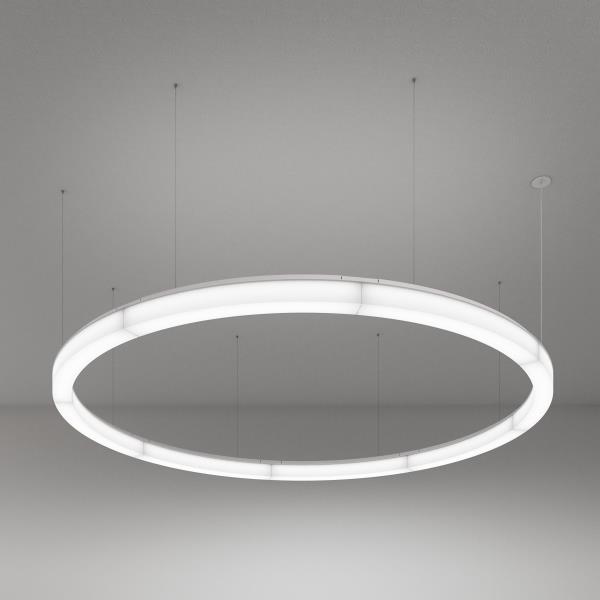

Novato Ring 12’, 16’, 20’ – Pendant
A cornerstone of our luminous forms collection, Novato Ring is renowned for its uniform, three-sided illumination, versatility, and high performance. With efficacy over 100 lumens per watt delivered, it can often be the only light source needed in a space, providing both the aesthetics and performance you require. The luminaire’s 5” cross-section is ideal for mid to high ceiling applications. It looks great individually or in patterns. We can also help you create interlocking, orbit, and tiered chandeliers. Novato Ring pendants are available in the widest range of sizes on the market – from 2' to 20'. Other sizes are available upon request.
Novato Ring 12’, 16’, 20’ – Pendant AIP12185

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Take your design to a new scale
  • Fully enclosed three-sided luminous form brightens horizontal and vertical planes
  • 70% direct/30% indirect distribution
  • Provides functional lighting with comfortable luminance levels
  • Specialized high-transmission diffuser offers higher delivered lumens while providing uniform illumination
  • Crisp, clean edges give the shape clear definition
  • Segmented for easy transportation and installation
  • Add decorative accents with optional color bands
  • Keep ceilings clean with minimal mounting hardware and just one power drop
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine (contact factory for RGBW or Tunable White)
  • CRI: 80+ (contact factory for 90+)
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: 102 lm/W delivered
  • CCT: 3000K, 3500K, or 4000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply
  • DIMMING: 0-10V controls standard to 1% on LED light engines
  • CONSTRUCTION: Edges are fused with solvent that permanently binds acrylic. Ships in eight segments. Segments are connected by powerful magnetics and secured with a mechanical connection. Plug & play wiring between sections expedites installation.
  • FINISH: Canopy finished to match your specification. Choose from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.  Color band options are specified separately. The ring's top plate and channel are painted Super White (PT01).
  • MODIFICATIONS: Consult factory for all modification requests, including RGBW or Tunable White, remote drivers, or 2"x2" cross-section rings
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

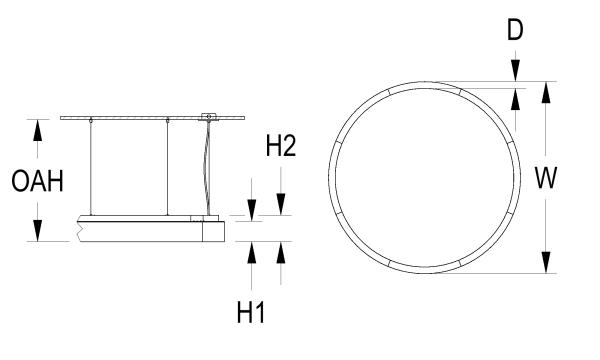

DIMENSIONS

Dimensions
W
144 in
365.8 cm
H1
5 in
12.7 cm
H2
6.5 in
16.5 cm
D
5 in
12.7 cm
OAH
120 in
304.8 cm
Mounting Weight
Approximate: 120 lb (55 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L254W | White 254W LED Light Engine

Delivered Lumens: 25,949

L508W | White 508W LED Light Engine

Delivered Lumens: 51,897


Voltage *

120-277V | Universal Voltage

Lamp Options *

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT

Mounting *

Power drop canopy mounts to standard 4" octagonal junction box. Field adjustable aircraft cables allow fixture to be mounted at an application appropriate height (up to OAH). The aircraft ceiling coupler can be connected to power drop canopy or can be separated from the power drop canopy to gain flexibility in mounting. See Downloads on website for mounting center measurements. Aircraft cable suspension uses ceiling coupler to mount to structure above. Coupler accepts 1/4-20 threaded rod or can be anchored using through hole (hardware by others). Remote mounting options available; contact factory.

DF_SIA | 5" Flat Canopy, Integral Power Supply, 8 Straight Aircraft Cables & Power Cord (default)

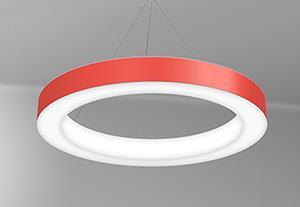

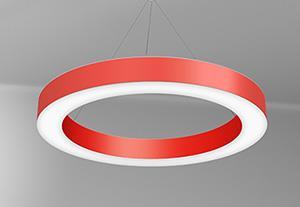

Color Band Options

Color bands are opaque. The finish is specified separately. When choosing this option, use the associated photometrics provided.

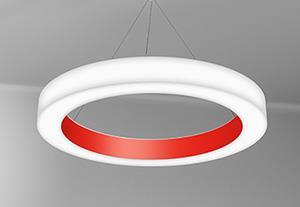

MB01 1 | Color Band Inner

MB02 2 | Color Band Outer

MB03 3 | Color Band Inner & Outer

1 Delivered lumens are 83% of luminous form output shown above
2 Delivered lumens are 64% of luminous form output shown above
3 Delivered lumens are 53% of luminous form output shown above. To specify different finishes for the inner and outer color bands, consult factory.
MB01
MB02
MB03

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
OAH
