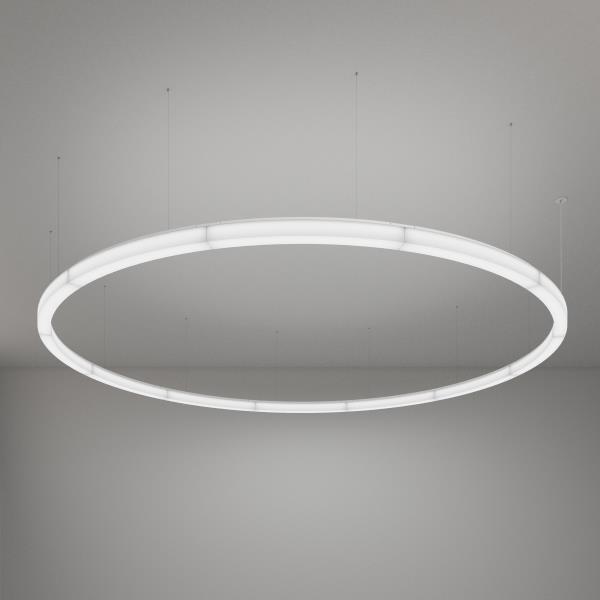

Novato Ring 12’, 16’, 20’ – Pendant
A cornerstone of our luminous forms collection, Novato Ring is renowned for its uniform, three-sided illumination, versatility, and high performance. With efficacy over 100 lumens per watt delivered, it can often be the only light source needed in a space, providing both the aesthetics and performance you require. The luminaire’s 5” cross-section is ideal for mid to high ceiling applications. It looks great individually or in patterns. We can also help you create interlocking, orbit, and tiered chandeliers. Novato Ring pendants are available in the widest range of sizes on the market – from 2' to 20'. Other sizes are available upon request.
Novato Ring 12’, 16’, 20’ – Pendant AIP12187

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

NEW! Wood Grain Finish band options available.

  • Take your design to a new scale
  • Fully enclosed three-sided luminous form brightens horizontal and vertical planes
  • 70% direct/30% indirect distribution
  • Provides functional lighting with comfortable luminance levels
  • Specialized high-transmission diffuser offers higher delivered lumens while providing uniform illumination
  • Crisp, clean edges give the shape clear definition
  • Segmented for easy transportation and installation
  • Add decorative accents with optional color bands
  • Keep ceilings clean with minimal mounting hardware and just one power drop
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine (contact factory for RGBW or Tunable White)
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L80 = >72,000 Hrs.
  • EFFICACY: 102 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • CONSTRUCTION: Edges are fused with solvent that permanently binds acrylic. Ships in eight segments. Segments are connected by powerful magnetics and secured with a mechanical connection. Plug & play wiring between sections expedites installation.
  • FINISH: Canopy finished to match your specification. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.  Color band options are specified separately. Each ring's top plate and channel are painted Super White (PT01).
  • MODIFICATIONS: Consult factory for all modification requests, including RGBW or Tunable White, remote drivers, or 2"x2" cross-section rings
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

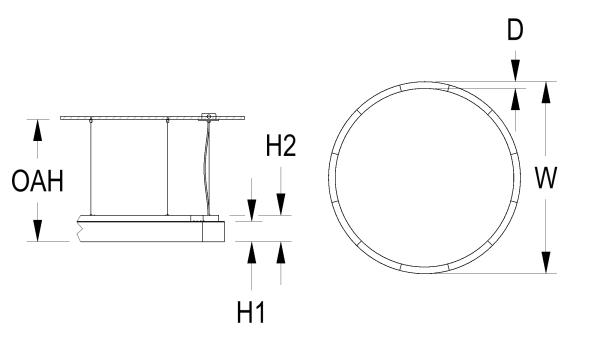

DIMENSIONS

Dimensions
W
240 in
609.6 cm
H1
5 in
12.7 cm
H2
6.5 in
16.5 cm
D
5 in
12.7 cm
OAH
120 in
304.8 cm
Mounting Weight
Approximate: 175 lb (80 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L423W | White 423W LED Light Engine

Delivered Lumens: 43,214

L847W | White 847W LED Light Engine

Delivered Lumens: 86,530


Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR | Lutron Athena Wireless Node, 1% Dimming
NX | Current NX Wireless, 1% Dimming
NLTA | Acuity nLight Air, 1% Dimming

Mounting *

Power drop canopy mounts to standard 4" octagonal junction box. Field adjustable aircraft cables allow fixture to be mounted at an application appropriate height (up to OAH). The aircraft ceiling coupler can be connected to power drop canopy or can be separated from the power drop canopy to gain flexibility in mounting. See Downloads on website for mounting center measurements. Aircraft cable suspension uses ceiling coupler to mount to structure above. Coupler accepts 1/4-20 threaded rod or can be anchored using through hole (hardware by others). Remote mounting options available; contact factory.

DF_SIA | 5" Flat Canopy, Integral Power Supply, 12 Straight Aircraft Cables & Power Cord (default)

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Color Band Options

Color bands are opaque. The finish is specified separately. When choosing this option, use the associated photometrics provided.

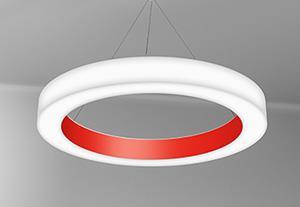

MB01 1 | Color Band Inner

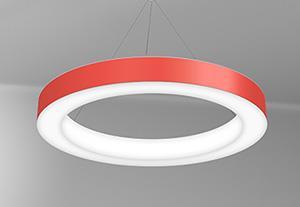

MB02 2 | Color Band Outer

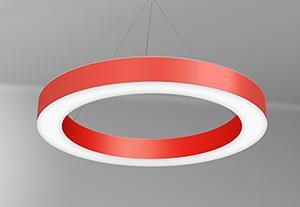

MB03 3 | Color Band Inner & Outer

1 Delivered lumens are 83% of luminous form output shown above
2 Delivered lumens are 64% of luminous form output shown above
3 Delivered lumens are 53% of luminous form output shown above. To specify different finishes for the inner and outer color bands, consult factory.
MB01
MB02
MB03

Wood Grain Band Options

WG01 | Wood Grain Band Inner
WG02 | Wood Grain Band Outer
WG03 | Wood Grain Band Inner & Outer

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
