AIP12207 74.00 in

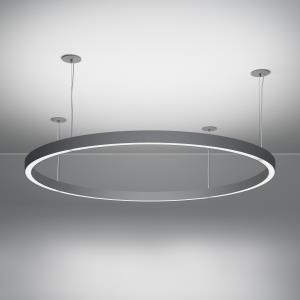

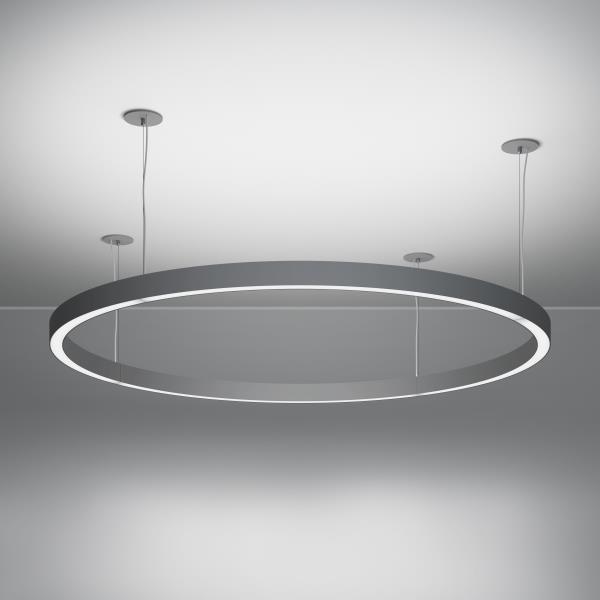

Zynn 2" Ring - Pendant
Zynn 2” Ring is the complete tool kit for lighting professionals. This is the line to specify when you need aesthetics you can count on, a wide range of scales, and the performance capabilities to light a space effectively and comfortably.
Zynn 2" Ring - Pendant AIP12207

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Sleek 2” x 3” profile
  • Create a well-balanced combination of indirect and direct light to increase visual comfort and improve light uniformity
  • Get tight to the ceiling with the Close-Mount Indirect Batwing option
  • Control up and down components independently
  • Segmented for easy transportation and installation
  • Clean, continuous lines of light with zero pixelation
  • Superior fit and finish
  • Keep ceilings clean with minimal mounting hardware
  • Hidden internal aircraft cable grippers are easy to adjust
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • DISTRIBUTION: Direct/Indirect
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L80 = >60,000 Hrs.
  • EFFICACY: Up to 115 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Remote Class 2 power supply. Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • MAX AMBIENT OPERATING TEMP: 42°C (108°F)
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Matte opal acrylic (bottom). Frosted clear acrylic (top).
  • CONSTRUCTION: 6000 series aluminum extrusion
  • FINISH: Housing and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including alternate sizes
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

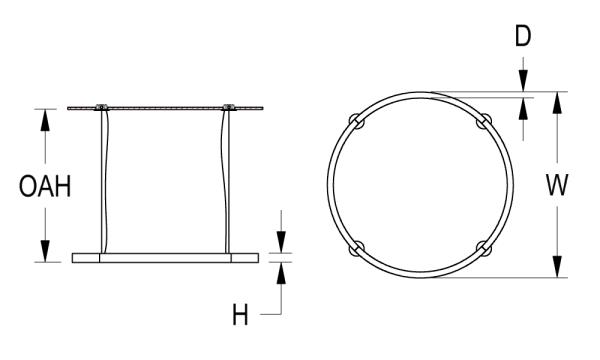

DIMENSIONS

Dimensions
W
74 in
188 cm
H
3 in
7.6 cm
D
2 in
5.1 cm
OAH
54 in
137.2 cm
Mounting Weight
Approximate: 35 lb (16 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request. Choose a DIRECT light source below:

DIR-L64W | White 64W LED Light Engine

Delivered Lumens: 4,602

DIR-L127W | White 127W LED Light Engine

Delivered Lumens: 9,131

DIR-L254W | White 254W LED Light Engine

Delivered Lumens: 18,263

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 54.0 - Max 254.0
LU   Min 3883 - Max 18263

Light Source 2 *

Choose an INDIRECT light source below:

IND-L64W | White 64W LED Light Engine (Delivered Lumens: 8,058)

IND-L127W | White 127W LED Light Engine (Delivered Lumens: 15,989)

IND-L254W | White 254W LED Light Engine (Delivered Lumens: 31,979)

CUST_OP_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W    Min 54.0 - Max 254.0
LU   Min 6799 - Max 31979

Indirect Distribution *

Choose the optical distributing for the indirect portion of the ring:

DF_SME | Symmetric (default)
BW 1 | Batwing


1 Delivered lumens are 90% of the output shown under Light Source 2.

Voltage *

120-277V | Universal Voltage

Lamp Options *

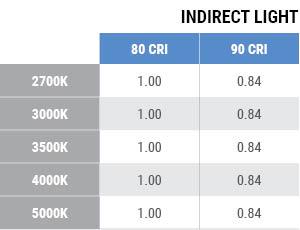

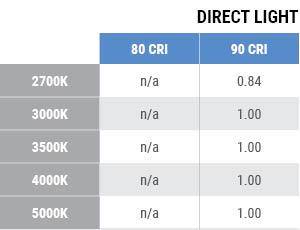

Apply multiplier from charts for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR 2 | Lutron Athena Wireless Node, 1% Dimming
NX 2 | Current NX Wireless, 1% Dimming
NLTA 2 | Acuity nLight Air, 1% Dimming

2 Not available with SCA mounting option.

Mounting *

Mounts to standard 4" octagonal junction box. Field adjustable cables allow fixture to be mounted at an application appropriate height (up to OAH).

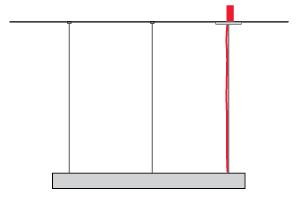

SRA | 5” Flat Canopies & 4 Straight Aircraft Cables with 4 White Power Cords, Remote Supply

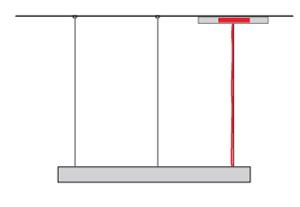

SCA | 12” Canopies with Power Supplies & 4 Straight Aircraft Cables with 4 White Power Cords

SRA
SCA

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
Request a modification
