AIP12219 146 in

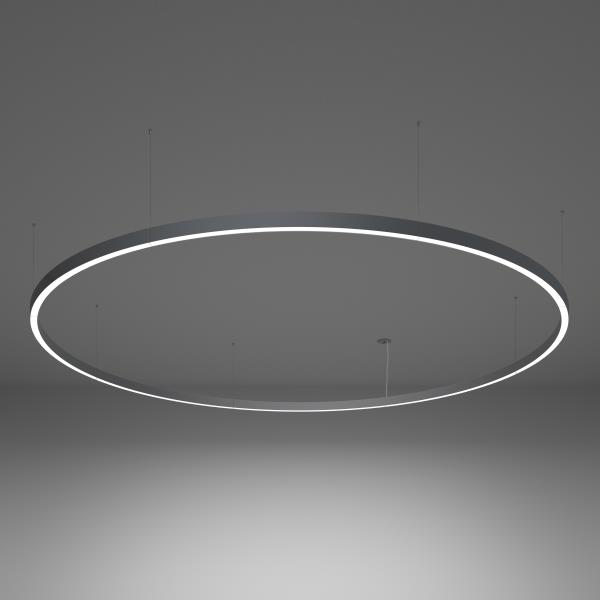

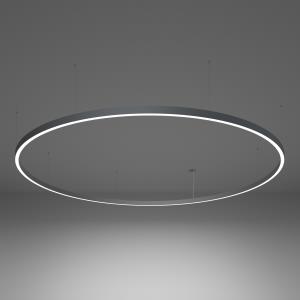

Zynn 2" Ring - Pendant
Zynn 2” Ring is the complete tool kit for lighting professionals. This is the line to specify when you need aesthetics you can count on, a wide range of scales, and the performance capabilities to light a space effectively and comfortably. This luminaire delivers clean lines of direct illumination. Offered in three output options, select the light that’s best suited for your environment. Handcrafted with incredible attention to detail, the luminaire exhibits the exceptional refinement that matters to you. The Zynn 2” Ring family is offered in every size needed to fit your application, from 2’ to 16’ in diameter.
Zynn 2" Ring - Pendant AIP12219

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Sleek 2” x 3” profile
  • Segmented for easy transportation and installation
  • Clean, continuous lines of light with zero pixelation
  • Superior fit and finish
  • Keep ceilings clean with minimal mounting hardware
  • Hidden internal aircraft cable grippers are easy to adjust
  • Integral power supply for easier installation
  • Only one power drop
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • DISTRIBUTION: Direct
  • CRI: 80+ (contact factory for 90+)
  • LUMEN MAINTENANCE: L80 = >60,000 Hrs.
  • EFFICACY: 72 lm/W delivered
  • CCT: 3000K, 3500K, or 4000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply
  • MAX AMBIENT OPERATING TEMP: 32°C (90°F)
  • DIMMING: 0-10V controls standard to 1% on LED light engines
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Matte opal acrylic
  • CONSTRUCTION: Housing fabricated from 6000 series aluminum extrusion
  • FINISH: Housing and mounting components finished to match. To specify separately, contact factory. Choose from more than 30 thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including alternate sizes
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

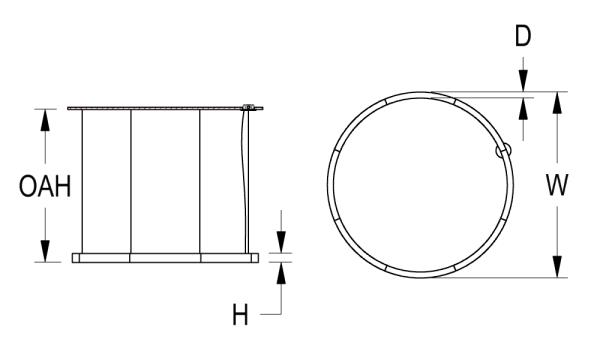

DIMENSIONS

Dimensions
W
146 in
370.8 cm
H
3 in
7.6 cm
D
2 in
5.1 cm
OAH
54 in
137.2 cm
Mounting Weight
Approximate: 70 lb (32 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request. Choose a DIRECT light source below:

DIR-L127W | White 127W LED Light Engine

Delivered Lumens: 9,131

DIR-L254W | White 254W LED Light Engine

Delivered Lumens: 18,263

DIR-L508W | White 508W LED Light Engine

Delivered Lumens: 36,525


Voltage *

120-277V | Universal Voltage

Lamp Options *

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Mounting *

Mounts to standard 4" octagonal junction box. Field adjustable cables allow fixture to be mounted at an application appropriate height (up to OAH). The aircraft ceiling coupler can be connected to power drop canopy or can be separated from the power drop canopy to gain flexibility in mounting.

SIA | 5” Flat Canopy & 8 Straight Aircraft Cables with White Power Cord; Integral Supply

SIA

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
OAH
