Abrams
AIP8152 24.00 in
Abrams

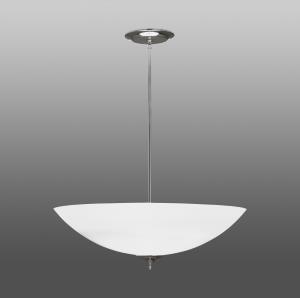

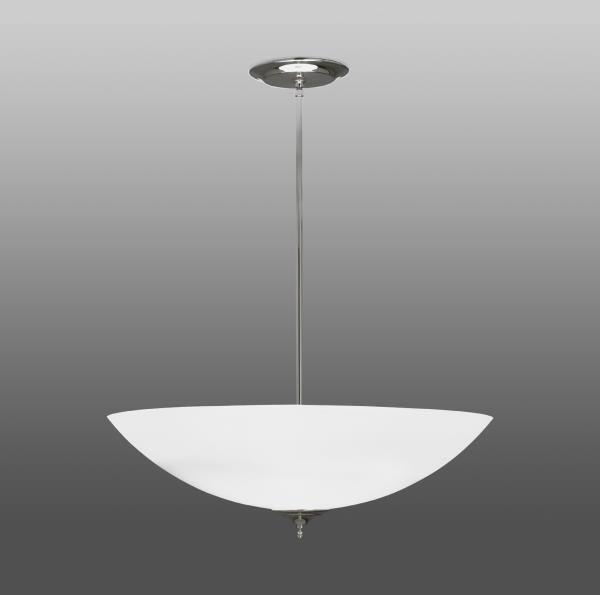

The simple lines and brass accents make the Abrams pendant an elegant addition to conference rooms, health care facilities, or any other space that needs a classic touch. The dome is available in opal acrylic, matte acrylic, or hand painted options. Choose from a palette of both painted and metal finishes.
Abrams AIP8152

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Opal acrylic diffuser lens enhances a space with filtered illumination
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine or incandescent
  • CRI: 80+ or 90+
  • Lumen Maintenance:  L70 = >50,000 Hrs.
  • CCT:  Available LED color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
  • DRIVER:  LED versions feature integral Class 2 power supply standard
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • DIFFUSER:  Opal acrylic is standard; matte acrylic and hand painted lenses optional. Any upward facing LEDs will be covered with a protective lens.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

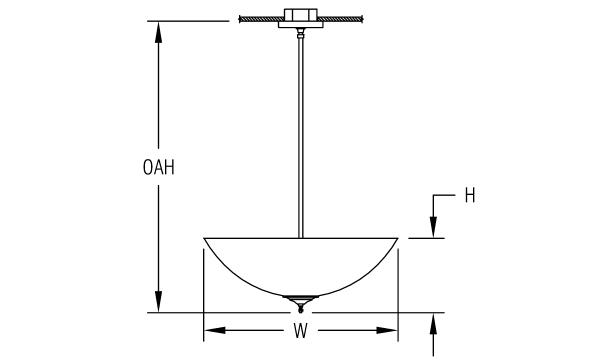

DIMENSIONS

Dimensions
W
24 in
61 cm
H
9.5 in
24.1 cm
OAH
36 in
91.4 cm
Mounting Weight
Approximate: 50 lb (23 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L36W | White 36W LED Light Engine

Delivered Lumens: 2,531

L72W | White 72W LED Light Engine

Delivered Lumens: 5,062

4N100 1 | 4INC100W/A19

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 36.0 - Max 72.0
LU   Min 2617 - Max 5234

1 Incandescent Lamp(s) Not Included
*For requests outside Min-Max range, please contact factory.

Voltage *

120V 2 | 120 Volt
120-277V | Universal Voltage

2 For incandescent light source only

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s. Not required with incandescent.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Diffuser *

DF_OA | Opal Acrylic Diffuser Lens (default)
HP01 | Silver Hand Painted Acrylic Diffuser
HP02 | Beige Hand Painted Acrylic Diffuser
HP03 | Amber Hand Painted Acrylic Diffuser
MA01 | Matte Acrylic Diffuser Lens

OA
HP01
HP02
HP03
MA01

Mounting *

Mounts to standard 4" octagonal junction box with auxiliary mounting holes.

DF_STM | Stem Mount (default)

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Canopy

SAM45 | 45 Degree Swivel

Options

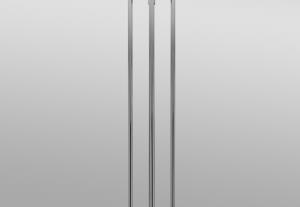

KS02 | Straight Stem Multi Kit (to Canopy)

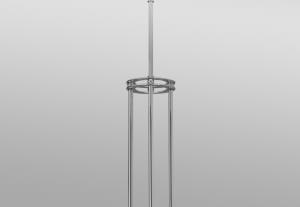

KS01 | Straight Stem Multi Kit (to Transition Plate)

KS02
KS01

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
Request a modification
