Dublin (2) Bowl Chandelier
AIP8616 33 in
Dublin (2) Bowl Chandelier
Our acorn collection was inspired by the need to offer proven optical solutions within adaptive re-use, traditional, and historically significant applications. The acorn shaped luminaire provides a more architecturally significant style for these facilities while offering impressive performance. Often dark wood and metal finishes are combined with high ceilings in these environments and require efficient high-output solutions. The family includes pendant, chandelier, wall-mounted, and ceiling models to illuminate and enhance your next visual challenge in this type of environment.
Dublin (2) Bowl Chandelier AIP8616

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Opal acrylic diffuser lens enhances a space with filtered illumination
  • Spun metal trim ring adds high-quality, decorative element to fixture
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine or incandescent
  • LUMEN MAINTENANCE (LED):  L70 life = 50,000+ hours
  • CCT:  Available LED color temperatures: 3000K, 3500K, or 4000K
  • DRIVER:  LED versions feature integral Class II power supply standard
  • DIMMING:  0-10V controls standard on LED light engines
  • EMERGENCY:  Emergency battery remote optional
  • DIFFUSER:  Opal acrylic is standard; matte acrylic and hand painted lenses optional. Any upward facing LEDs will be covered with a protective lens.
  • CONSTRUCTION:  Formed metal construction provides durable protection for internal components and is recyclable
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

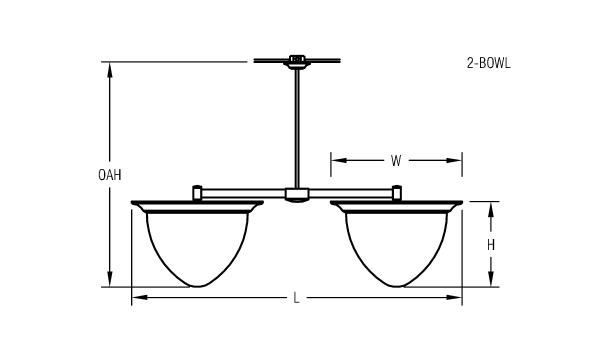

DIMENSIONS

Dimensions
W
33.2 in
84.3 cm
H
21.7 in
55.1 cm
OAH
56 in
142.2 cm
L
77.7 in
197.4 cm
Mounting Weight
Approximate: 150 lb (69 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

(2) 3N150 1 | (2 HEAD) 3INC150W/A21

(2) L86W | (2 HEAD) White 86W LED Light Engine

Delivered Lumens: 17,031

(2) L172W | (2 HEAD) White 172W LED Light Engine

Delivered Lumens: 34,062


1 Incandescent/Quartz Lamp(s) Not Included

Voltage

120V | 120 Volt
120-277V | Universal Voltage

Lamp Options

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 2 | 3000K CCT
3500K 3 | 3500K CCT
4000K | 4000K CCT

2 Apply .95 multiplier for delivered lumens
3 Apply .97 multiplier for delivered lumens

Diffuser

DF_OA | Opal Acrylic Diffuser Lens (default)
HP01 | Silver Hand Painted Acrylic Diffuser
HP02 | Beige Hand Painted Acrylic Diffuser
HP03 | Amber Hand Painted Acrylic Diffuser
MA01 | Matte Acrylic Diffuser Lens

OA
HP01
HP02
HP03
MA01

Mounting

Mounts to standard 4" octagonal junction box with auxiliary mounting holes. Additional support required (by others). Canopy is 6.5" diameter with a 45 degree swivel.

DF_STM | Stem Mount (default)

Bowl Options

FIN | Finial

Options

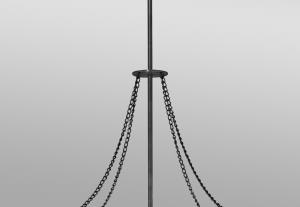

KC01 | Chain Kit (to Transition Plate)

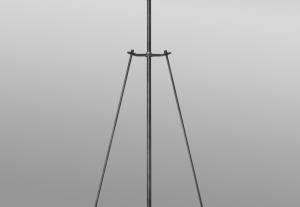

KR01 | Angled Stem Multi Kit (to Transition Plate)
F | Fusing

KC01
KR01

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
OAH

DownLoad my spec sheet Request a modification
