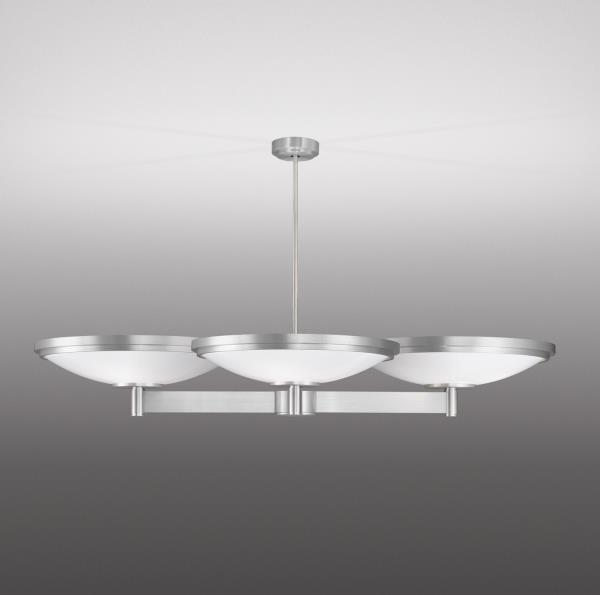

Madrid (4) Bowl Chandelier
AIP8687 21.50 in
Madrid (4) Bowl Chandelier
Our shallow bowl collection offers simple classic lines in a low-profile alternative. When low to mid-height ceiling applications present themselves, this family complements contemporary and transitional styling. The family includes pendant, chandelier, wall-mounted, and ceiling models to illuminate and enhance the visual environment you're creating.
Madrid (4) Bowl Chandelier AIP8687

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Opal acrylic diffuser enhances a space with filtered illumination
  • Spun metal trim ring adds high-quality, decorative element to fixture
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING:  0-10V controls standard to 10% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • DIFFUSER:  Opal acrylic is standard; matte acrylic and hand painted lenses optional. Any upward facing LEDs will be covered with a protective lens.
  • CONSTRUCTION:  Formed metal construction provides durable protection for internal components and is recyclable
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

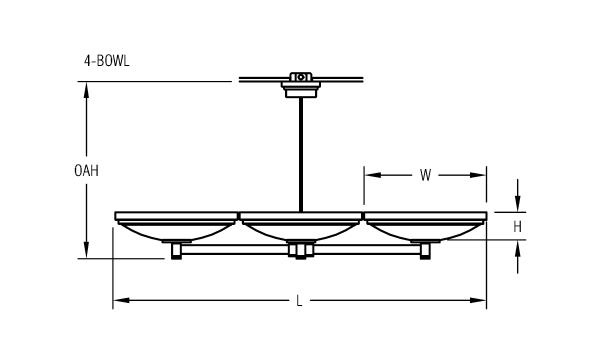

DIMENSIONS

Dimensions
W
21.5 in
54.6 cm
H
7.7 in
19.6 cm
OAH
33 in
83.8 cm
L
65.2 in
165.6 cm
Mounting Weight
Approximate: 150 lb (69 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

(4) L50W | (4 HEAD) White 50W LED Light Engine

Delivered Lumens: 19,869

(4) L100W | (4 HEAD) White 100W LED Light Engine

Delivered Lumens: 39,740

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 200.0 - Max 400.0
LU   Min 19800 - Max 39600

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Diffuser *

DF_OA | Opal Acrylic Diffuser Lens (default)
HP01 | Silver Hand Painted Acrylic Diffuser
HP02 | Beige Hand Painted Acrylic Diffuser
HP03 | Amber Hand Painted Acrylic Diffuser
MA01 | Matte Acrylic Diffuser Lens

OA
HP01
HP02
HP03
MA01

Mounting *

Mounts to standard 4" octagonal junction box with auxiliary mounting holes. Additional support required (by others). Canopy is 6.5" diameter with a 45 degree swivel.

DF_STM | Stem Mount (default)

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Options

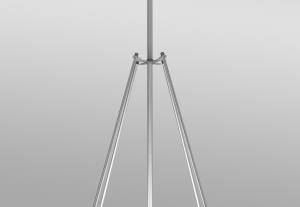

KA01 | Angled Aircraft Cable Kit (to Transition Plate/Canopy)

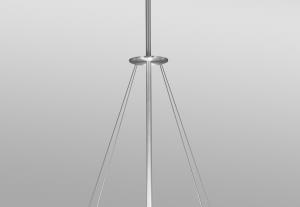

KR01 | Angled Stem Multi Kit (to Transition Plate)

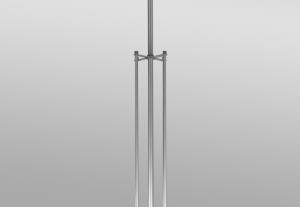

KS01 | Straight Stem Multi Kit (to Transition Plate)
F | Fusing

KA01
KR01
KS01

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
