Seneca
AIP9044 33 in
Seneca

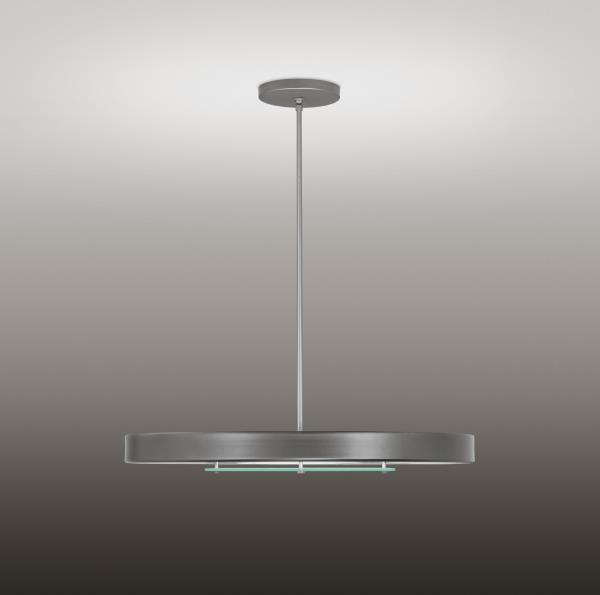

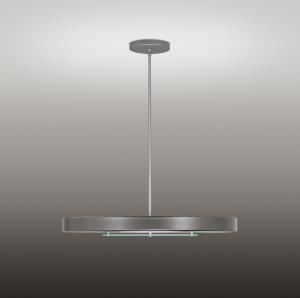

The spun metal housing on the Seneca pendant is just 2.5 inches high, providing a sleek appearance. The decorative tinted acrylic disc adds to the modern lines of the fixture. The Seneca pendant is an excellent choice for conference rooms, offices, and other areas where a modern, low profile luminaire would best complement the space. Choose from three mounting stem styles and a palette of both painted and solid metal finishes for the fixture housing.
Seneca AIP9044

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Spun metal housing adds high-quality, decorative element to fixture
  • Frosted acrylic trim provides a unique, subtle green accent
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • LUMEN MAINTENANCE:  L70 life = 50,000+ hours
  • CCT:  3000K, 3500K, or 4000K
  • DRIVER:  Integral Class II power supply standard
  • DIMMING:  0-10V controls standard  to 1% on LED light engines
  • EMERGENCY:  Emergency battery remote optional
  • TOP LENS:  Any upward facing LEDs will be covered with a protective lens
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS:  ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

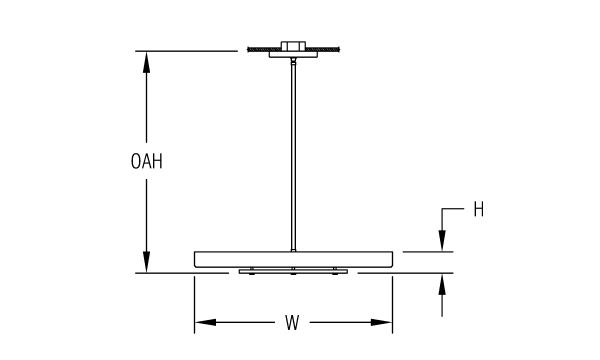

DIMENSIONS

Dimensions
W
33 in
83.8 cm
H
2.5 in
6.4 cm
OAH
36 in
91.4 cm
Mounting Weight
Approximate: 50 lb (23 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L72W | White 72W LED Light Engine

Delivered Lumens: 8,228

L143W | White 143W LED Light Engine

Delivered Lumens: 16,457


Voltage *

120-277V | Universal Voltage

Lamp Options *

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Mounting *

Mounts to standard 4" octagonal junction box with auxiliary mounting holes.

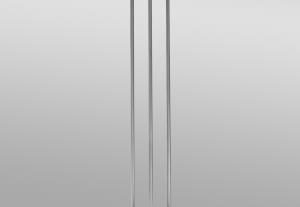

DF_STM | Stem Mount (default)

Canopy

SAM45 | 45 Degree Swivel

Options

KS02 | Straight Stem Multi Kit (to Canopy)

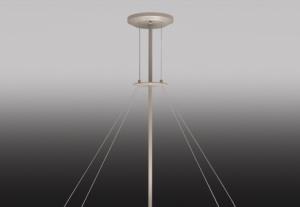

KA03 | Aircraft Cable Stem Kit to Transition Plate and Canopy

KS02
KA03

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture. The OAH min/max range is determined only by the physical limitations of the luminaire. Appropriate mounting heights are separately calculated from photometric lighting layouts and recommended from the specifier. If the specified mounting height is outside of the OAH range, please contact the factory.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
OAH

Request a modification
