Savannah - Pendant
AIP9108 13.50 in
Savannah - Pendant

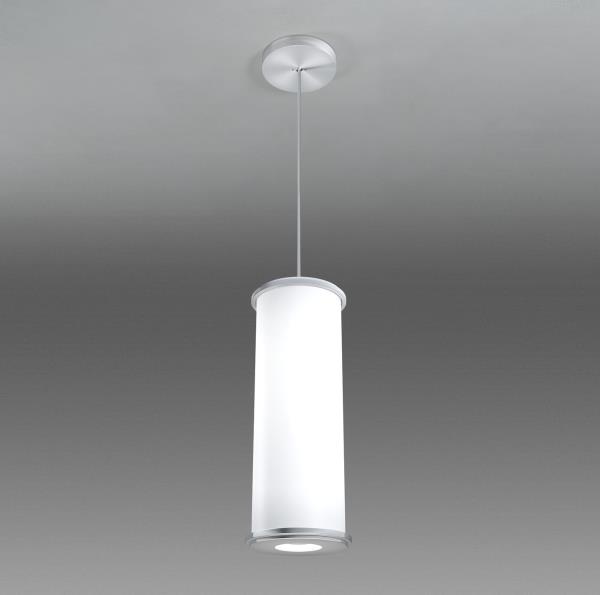

Stepped decorative metal accents add a traditional touch to this classic cylindrical form. The Savannah pendant's evenly illuminated white matte acrylic diffuser provides a soft glow of light. Even illumination (top to bottom and radially) and clean-finished ends are hallmarks of its design. An optional integrated LED downlight is available to deliver functional light where needed. The Savannah pendant is ideal for higher ceiling applications such as places of worship, colleges, and libraries. It is available in 11.5" and 13.5" diameters.
Savannah - Pendant AIP9108

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • White matte acrylic diffuser enhances a space with filtered illumination
  • Spun metal trim ring adds high-quality, decorative element to fixture
  • Optional single cross and twin cross accents available
  • Matching bi-planar finish detail on top and bottom maximizes visual appeal from all angles
  • Integrated LED luminaire design features a sophisticated passive cooling system with integrated heat sink
  • Integral regressed downlight available in 1500lm or 3000lm and beam spread of narrow (26°), medium (40°), wide (55°), or very wide (90°)
  • Ambient and downlight components are standard with separate switching and 0-10v dimming
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  up to 101 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Class 2 power supply integrated in canopy standard; remote optional. Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • DIFFUSER: White matte acrylic diffuser standard; white gloss acrylic diffuser optional
  • CONSTRUCTION:  Aluminum
  • FINISH:  Trim rings and mounting components finished to match.  To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or various metal and plated finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

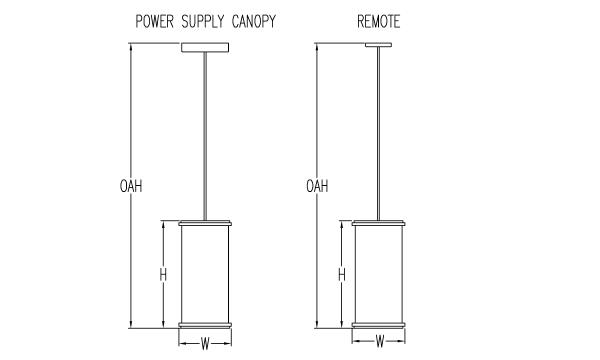

DIMENSIONS

Dimensions
W
13.5 in
34.3 cm
H
35 in
88.9 cm
OAH
84 in
213.4 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L35W | White 35W LED Light Engine

Delivered Lumens: 3,430

L71W | White 71W LED Light Engine

Delivered Lumens: 6,958


Voltage *

120-277V | Universal Voltage

Lamp Options *

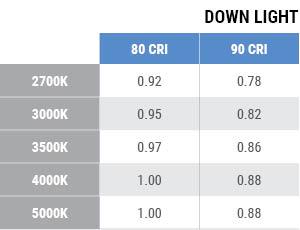

Apply multiplier from charts for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Light Source Option *

If you’re specifying a downlight option, layer the ambient and downlight IES files. Please choose one:

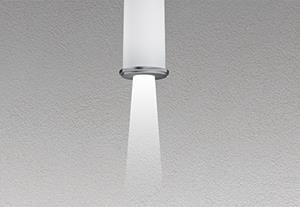

14W-26° Narrow | 14W (1500 delivered lumens) Downlight - 26° Beam

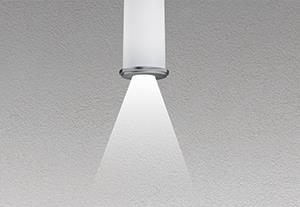

14W-40° Medium | 14W (1500 delivered lumens) Downlight - 40° Beam

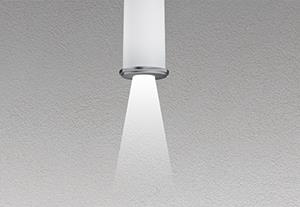

14W-55° Wide | 14W (1500 delivered lumens) Downlight - 55° Beam

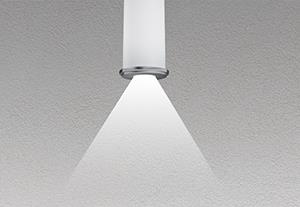

14W-90° Very Wide | 14W (1500 delivered lumens) Downlight - 90° Beam

28W-26° Narrow | 28W (3000 delivered lumens) Downlight - 26° Beam

28W-40° Medium | 28W (3000 delivered lumens) Downlight - 40° Beam

28W-55° Wide | 28W (3000 delivered lumens) Downlight - 55° Beam

28W-90° Very Wide | 28W (3000 delivered lumens) Downlight - 90° Beam

No DL | No Downlight

14W-26° Narrow
14W-40° Medium
14W-55° Wide
14W-90° Very Wide
28W-26° Narrow
28W-40° Medium
28W-55° Wide
28W-90° Very Wide

Diffuser *

DF_MA01 | Matte Acrylic Diffuser Lens (default)
OA | White Gloss Acrylic Diffuser

MA01
OA

Mounting *

Mounts to standard 4" octagonal junction box; however, when the power supply is located in the canopy, auxiliary mounting holes are required. 10" diameter canopy (45 degree swivel) with integrated power supply standard. 5.5" diameter canopy (22.5 degree swivel) with remote mounted power supply optional. Aircraft cable with white power cord optional (adjustable up to OAH) Choose a mounting from below:

DF_PSS | 12" Power Supply Canopy & Stem (default)
CAA | 5.5" Canopy & Aircraft Cable, Remote Supply
CAS | 5.5" Canopy & Stem, Remote Supply
PSA | 12" Power Supply Canopy & Aircraft Cable

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Accents

Accent finish specified separately.

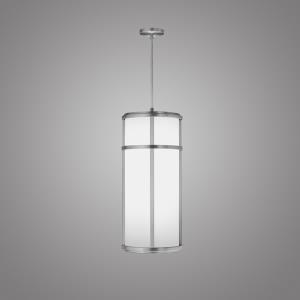

DC01 | Single Cross

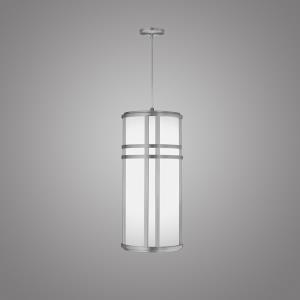

DC02 | Twin Cross

DC01
DC02

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
