AIS12191 48 in
Zynn Ring - Surface Mount

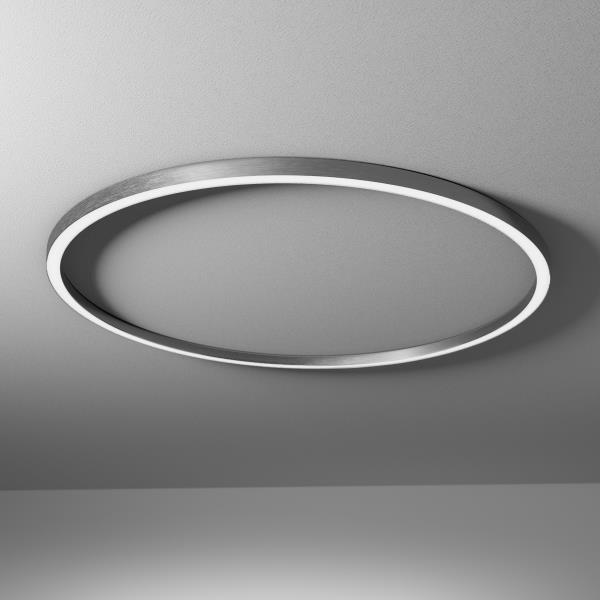

With a cross-section of just 1.25”, Zynn Ring is a minimalist masterpiece. Its best-in-market construction features a hand-fabricated seamless aluminum housing and seamless diffuser which give the luminaire its exceptionally clean appearance. Characterized by a refined fit and finish, Zynn Ring is a favorite for today’s architects and designers. Available in 1’ to 5’ diameters.
Zynn Ring - Surface Mount AIS12191

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • One of the slimmest profiles on the market
  • Seamless aluminum housing with no visible fasteners
  • Seamless matte opal acrylic diffuser sits slightly regressed (.03") from bottom edge of fixture
  • Smooth light with zero pixelation
  • Mounts on ceiling or wall
  • Choose a direct surface mount or a standoff option to overlap rings easily
  • Pairs well with other slimline products in the Zynn family
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: 59 lm/W delivered
  • CCT: 3000K, 3500K, or 4000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Remote Class II power supply. Max distance to the driver is 15'. For extended distances, contact factory.
  • DIMMING: 0-10V controls standard to 1%
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Matte opal acrylic
  • CONSTRUCTION: Housing fabricated from 6000 series aluminum extrusion
  • FINISH: Housing and mounting components finished to match. To specify separately, contact factory. Choose from more than 30 thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including other sizes
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

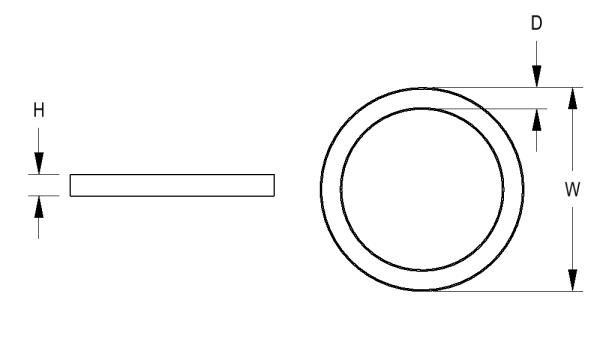

DIMENSIONS

Dimensions
W
48 in
121.9 cm
H
1.2 in
3 cm
D
1.2 in
3 cm
Mounting Weight
Approximate: 15 lb (7 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L22W | White 22W LED Light Engine

Delivered Lumens: 1,303

L44W | White 44W LED Light Engine

Delivered Lumens: 2,607

L81W | White 81W LED Light Engine

Delivered Lumens: 4,798


Voltage *

120-277V | Universal Voltage

Lamp Options *

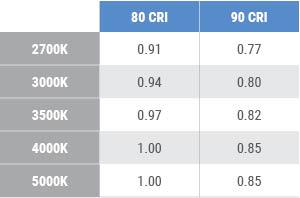

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Mounting *

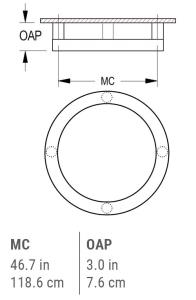

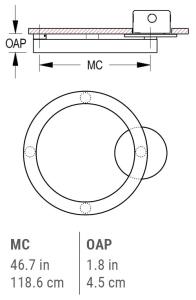

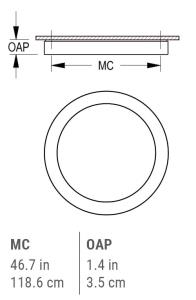

MCS mounting features a robust 1.75" standoff, with 4 mounting points, suitable for public spaces and is supplied with 8' lead length and 2.25" round goof plates. SFC mounting features a surface mounting plate and is supplied with 8’ lead length. SJB mounting features a 5” round j-box cover combined with (3) 0.5” standoffs. To overlap adjacent rings, alternate between SFC and MCS mountings. Contact factory for alternate standoff heights.

MCS | 1.75" Standoff Mount
SFC | Surface Mount
SJB | Surface Mount with 5" Round J-Box Cover
MCS
SFC
SJB
