Harbor - Double Bars
AIW8272 14.50 in
Harbor - Double Bars
The Harbor sconce is available with varying levels of ornamentation to adapt to many types of spaces and to meet a range of budgets. The fixture adds four horizontal bars for adornment, while still retaining the clean lines of the Harbor series.
Harbor - Double Bars AIW8272

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Compliant with Americans with Disabilities Act (ADA) requirements
  • Optional VAN (vanity mount) features solid end caps for a fully enclosed fixture
  • Exterior family fixtures available to carry a consistent lighting design throughout a project
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING:  1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, Current NX, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • DIFFUSER: Formed opal acrylic lens standard; matte acrylic optional. Prismatic top lens and bottom lens standard with any LED module. They shield direct view of the lamp in applications where views above or below the fixture are possible and prevent external objects from entering the fixture.
  • MOUNTING: Mounts to standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

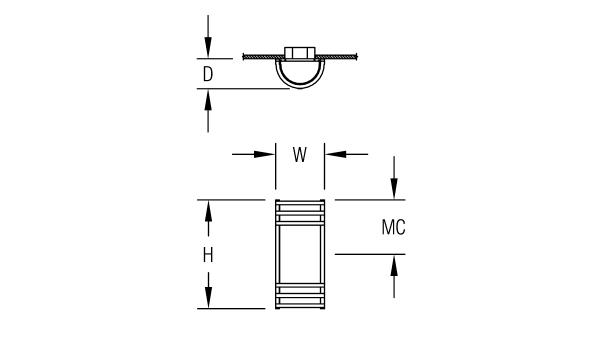

DIMENSIONS

Dimensions
W
7 in
17.8 cm
H
14.5 in
36.8 cm
D
4 in
10.2 cm
MC
7.2 in
18.3 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L29W | White 29W LED Light Engine

Delivered Lumens: 1,966

L14W | White 14W LED Light Engine

Delivered Lumens: 983

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 14.0 - Max 29.0
LU   Min 966 - Max 2001

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, Current NX, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR | Lutron Athena Wireless Node, 1% Dimming
NLTA | Acuity nLight Air, 1% Dimming

Diffuser *

DF_OA | Opal Acrylic Diffuser Lens (default)
MA01 | Matte Acrylic Diffuser Lens

OA
MA01

Mounting

Vanity mount features solid end caps.

VAN | Vanity Mount

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote
