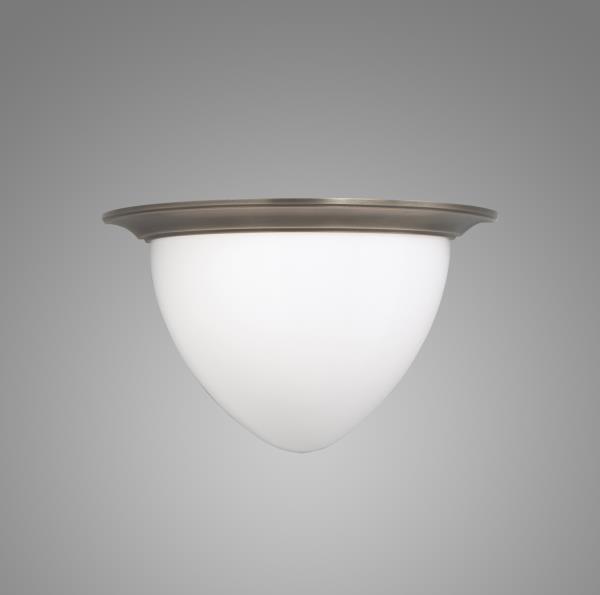

Dublin - Wall
AIW8885 25 in
Dublin - Wall
Our acorn collection was inspired by the need to offer proven optical solutions within adaptive re-use, traditional, and historically significant applications. The acorn shaped luminaire provides a more architecturally significant style for these facilities while offering impressive performance. Often dark wood and metal finishes are combined with high ceilings in these environments and require efficient high-output solutions. The family includes pendant, chandelier, wall-mounted, and ceiling models to illuminate and enhance your next visual challenge in this type of environment.
Dublin - Wall AIW8885

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Opal acrylic diffuser lens enhances a space with filtered illumination
  • Spun metal trim ring adds high-quality, decorative element to fixture
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine or incandescent
  • LUMEN MAINTENANCE (LED):  L70 life = 50,000+ hours
  • CCT:  Available LED color temperatures: 3000K, 3500K, or 4000K
  • DRIVER:  LED versions feature integral Class II power supply standard
  • DIMMING:  0-10V controls standard on LED light engines
  • EMERGENCY:  Emergency battery remote optional
  • CONSTRUCTION:  Formed metal construction provides durable protection for internal components and is recyclable
  • DIFFUSER:  Opal acrylic is standard; matte acrylic and hand painted lenses optional. Top lens standard with any LED module.
  • MOUNTING:  Aluminum cover fits over a standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

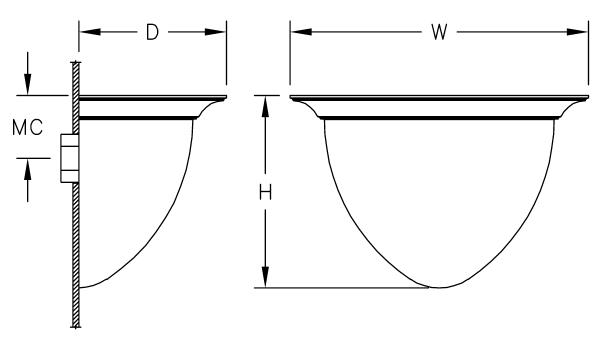

DIMENSIONS

Dimensions
W
24.7 in
62.7 cm
H
16 in
40.6 cm
D
12.2 in
31 cm
MC
5.2 in
13.2 cm
Mounting Weight
Approximate: 25 lb - 12 (kg)
PRODUCT BUILDER | Your Selections:
clear
--None --

Required Field *

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L22W | White 22W LED Light Engine

Delivered Lumens: 1,690

L43W | White 43W LED Light Engine

Delivered Lumens: 3,381

1N150 1 | 1INC150W/A21

1 Incandescent/Quartz Lamp(s) Not Included

Voltage

120V | 120 Volt
120-277V | Universal Voltage

Lamp Options

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 2 | 3000K CCT
3500K 3 | 3500K CCT
4000K | 4000K CCT

2 Apply .95 multiplier for delivered lumens
3 Apply .97 multiplier for delivered lumens

Diffuser

DF_OA | Opal Acrylic Diffuser Lens (default)
HP01 | Silver Hand Painted Acrylic Diffuser
HP02 | Beige Hand Painted Acrylic Diffuser
HP03 | Amber Hand Painted Acrylic Diffuser
MA01 | Matte Acrylic Diffuser Lens

OA
HP01
HP02
HP03
MA01

Options

F | Fusing
