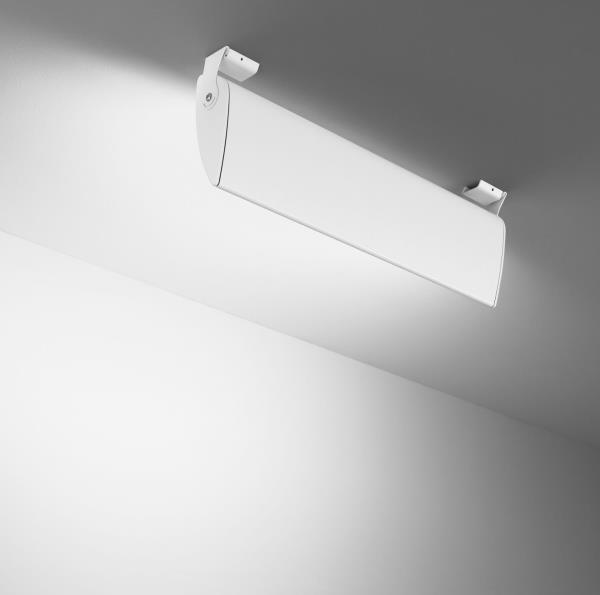

Echo Velocity 3.5 LED - Ceiling
Designed with a unique, asymmetric profile, Echo Velocity 3.5 LED combines high-performance in an organic form. Offered in interior and exterior versions with multiple mounting options, this versatile luminaire lights a wide variety of projects well. It delivers the quality illumination and efficient light control the Echo family is known for. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.
Echo Velocity 3.5 LED - Ceiling EIC11915

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Field adjustable housing locks into position, enabling precise fixture alignment for high-quality design performance
  • Stainless steel external fasteners will not rust or corrode
  • Dust cover lens standard
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply
  • DIMMING:  1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena and nLight AIR optional. Contact factory for other controls (e.g., Current NX, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • CONSTRUCTION: Extruded aluminum construction provides durable protection for internal components and is recyclable; cast aluminum end caps protect internal components and are recyclable
  • FINISH:  Housing and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including RGB and static color options
  • APPROVALS: ETL listed to UL standards (US and Canada) for use in damp locations; not recommended for exterior applications

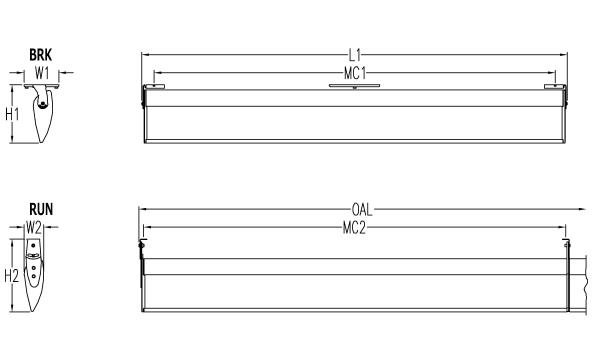

DIMENSIONS

Dimensions
L1
26.7 in
67.8 cm
H1
7 in
17.8 cm
H2
8.7 in
22.1 cm
MC1
23.8 in
60.5 cm
MC2
26.7 in
67.8 cm
W1
4.2 in
10.7 cm
W2
2.4 in
6.1 cm
Mounting Weight
Consult Factory.
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L8W | White 8W LED Light Engine

Delivered Lumens: 722

L29W | White 29W LED Light Engine

Delivered Lumens: 2,720

L14W | White 14W LED Light Engine

Delivered Lumens: 1,360

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 8.0 - Max 29.0
LU   Min 760 - Max 2755

*For requests outside Min-Max range, please contact factory.

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_90+HE | 90+ High Efficacy

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Current NX, Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR | Lutron Athena Wireless Node, 1% Dimming
NLTA | Acuity nLight Air, 1% Dimming
LDE1 | Lutron Hi-lume EcoSystem Control, 1% Dimming (Soft-On, Fade-to-Black)

Mounting *

Bracket and Run mounts are supplied with a discrete cover that fits over a standard 4" octagonal junction box. Additional support required (by others). INSTALLATION NOTES: During installation the contractor is responsible to use actual fixtures to ensure accurate mounting centers from one fixture to the next along the length of the linear run. Choose a mounting from below:

BRK | Bracket Mount
RUN 1 | Continuous Run
OAL | Specify Length of Run
  ft.

1 For a take-off and pricing, contact factory

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR will be included in enclosure specified above. When specifying EMR with RUN, the first fixture in the run will be the emergency unit.  If other or different Emergency units are needed, contact factory.  Additional Power feed location will be required to power non-emergency sections.

EMR | Emergency Battery Remote
