Styk Exterior - Suspended
SEP12144 2.20 in
Styk Exterior - Suspended

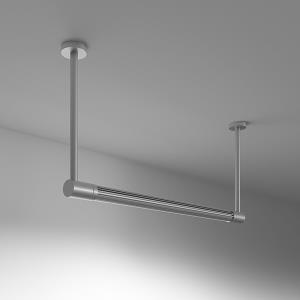

Styk was built to provide the most lumens with the smallest luminaire package, while optimizing life. Not limited to decorative lighting, effective functional lighting is provided through the optimal light control in this minimal package. It's three optical offerings enable tremendous flexibility including wall washing, wall grazing, and asymmetric lighting solutions. It is excellent at lighting signs and facades. The family features wall, ceiling, and pendant models in a variety of stylish, clean mounting options. Available in 1' to 8' lengths, Styk can be mounted individually or configured in runs.
Styk Exterior - Suspended SEP12144

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Sleek 1.5" diameter housing
  • A forward throw optic, for even wall wash illumination, is standard
  • Symmetrical optic options are available for more volumetric illumination
  • Lamp body can be rotated up to 330° and locks into position for precise fixture alignment
  • Up to 1,450 lumens per foot delivered (with Forward Throw distribution)
  • Anodized finish provides durable corrosion protection
  • All visible fasteners are flush mounted, providing a clean design
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE:  IP66 white LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  102 lm/W delivered (with Forward Throw distribution)
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Includes one remote damp listed Class 2 power supply and either a damp location or wet location enclosure, except 8FT-L113W which has two.  Black power cord standard unless otherwise specified.  Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • DIMMING: 0-10V controls standard to 1%
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • CONSTRUCTION:  Extruded aluminum construction provides durable protection for internal components and is recyclable
  • FINISH:  Housing available in anodized finishes only. End caps and mounting components painted to match.
  • MODIFICATIONS: Consult factory for all modification requests, including RGB and static LED colors
  • APPROVALS:  ETL listed to UL standards (US and Canada) for use in wet locations

DIMENSIONS

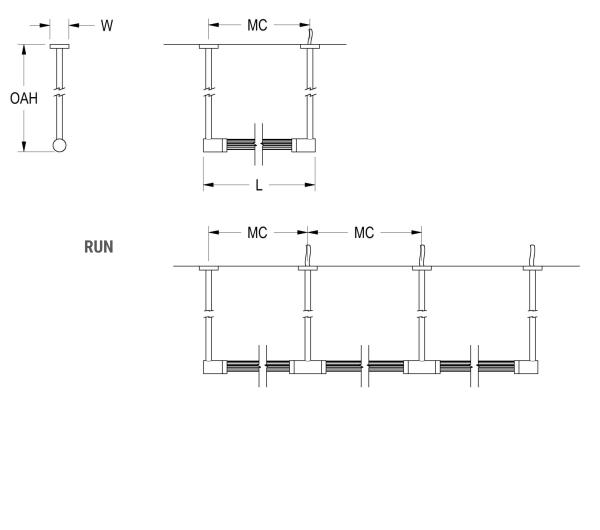

Dimensions
1FT
W
2.3 in
5.8 cm
L
17.5 in
44.4 cm
OAH
36 in
91.4 cm
MC
16.2 in
41.1 cm
Mounting Weight: Approximate: 5 lb (3 kg)
2FT
W
2.3 in
5.8 cm
L
29.2 in
74.2 cm
OAH
36 in
91.4 cm
MC
28 in
71.1 cm
Mounting Weight: Approximate: 5 lb (3 kg)
3FT
W
2.3 in
5.8 cm
L
41 in
104.1 cm
OAH
36 in
91.4 cm
MC
39.7 in
100.8 cm
Mounting Weight: Approximate: 5 lb (3 kg)
4FT
W
2.3 in
5.8 cm
L
52.5 in
133.4 cm
OAH
36 in
91.4 cm
MC
51.2 in
130 cm
Mounting Weight: Approximate: 5 lb (3 kg)
5FT
W
2.3 in
5.8 cm
L
64.5 in
163.8 cm
OAH
36 in
91.4 cm
MC
63.2 in
160.5 cm
Mounting Weight: Approximate: 10 lb (5 kg)
6FT
W
2.3 in
5.8 cm
L
78.2 in
198.6 cm
OAH
36 in
91.4 cm
MC
77 in
195.6 cm
Mounting Weight: Approximate: 10 lb (5 kg)
8FT
W
2.3 in
5.8 cm
L
102.2 in
259.6 cm
OAH
36 in
91.4 cm
MC
101 in
256.5 cm
Mounting Weight: Approximate: 10 lb (5 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply. Alternative wattages available upon request. Delivered lumens shown below are for Forward Throw distribution.

1 FOOT NOMINAL FIXTURE
1FT-L4W | White 4W LED Light Engine

Delivered Lumens: 407

1FT-L7W | White 7W LED Light Engine

Delivered Lumens: 712

1FT-L14W | White 14W LED Light Engine

Delivered Lumens: 1,424

CUST_Out_1FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 4.0 - Max 14.0
LU   Min 407 - Max 1424
2 FOOT NOMINAL FIXTURE
2FT-L8W | White 8W LED Light Engine

Delivered Lumens: 814

2FT-L14W | White 14W LED Light Engine

Delivered Lumens: 1,424

2FT-L28W | White 28W LED Light Engine

Delivered Lumens: 2,848

CUST_Out_2FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 8.0 - Max 28.0
LU   Min 814 - Max 2848
3 FOOT NOMINAL FIXTURE
3FT-L12W | White 12W LED Light Engine

Delivered Lumens: 1,220

3FT-L21W | White 21W LED Light Engine

Delivered Lumens: 2,136

3FT-L42W | White 42W LED Light Engine

Delivered Lumens: 4,271

CUST_Out_3FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 12.0 - Max 42.0
LU   Min 1220 - Max 4271
4 FOOT NOMINAL FIXTURE
4FT-L16W | White 16W LED Light Engine

Delivered Lumens: 1,627

4FT-L28W | White 28W LED Light Engine

Delivered Lumens: 2,848

4FT-L56W | White 56W LED Light Engine

Delivered Lumens: 5,695

CUST_Out_4FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 16.0 - Max 56.0
LU   Min 1627 - Max 5695
5 FOOT NOMINAL FIXTURE
5FT-L20W | White 20W LED Light Engine

Delivered Lumens: 2,034

5FT-L35W | White 35W LED Light Engine

Delivered Lumens: 3,560

5FT-L71W | White 71W LED Light Engine

Delivered Lumens: 7,221

CUST_Out_5FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 20.0 - Max 71.0
LU   Min 2034 - Max 7221
6 FOOT NOMINAL FIXTURE
6FT-L24W | White 24W LED Light Engine

Delivered Lumens: 2,441

6FT-L42W | White 42W LED Light Engine

Delivered Lumens: 4,271

6FT-L85W | White 85W LED Light Engine

Delivered Lumens: 8,645

CUST_Out_6FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 24.0 - Max 85.0
LU   Min 2441 - Max 8644
8 FOOT NOMINAL FIXTURE
8FT-L32W | White 32W LED Light Engine

Delivered Lumens: 3,254

8FT-L56W | White 56W LED Light Engine

Delivered Lumens: 5,695

8FT-L113W | White 113W LED Light Engine

Delivered Lumens: 11,492

CUST_Out_8FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 32.0 - Max 113.0
LU   Min 3254 - Max 11492

*For requests outside Min-Max range, please contact factory.

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_90+HE | 90+ High Efficacy

Mounting *

CWS mounts to standard 4" octagonal junction box. Additional mounting structure and hardware required (by others). The 8FT-L113W option has a power feed exiting through both stems.

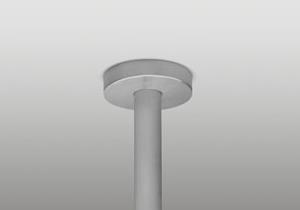

DF_MCS | 2.3" Mini Canopy (default)

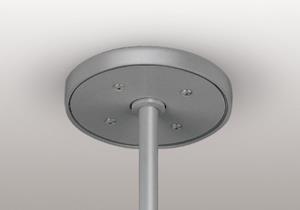

CWS | 6.2" Canopy and Rigid Stem

MCS
CWS

Remote Power Supply Enclosure *

PSE | Remote Power Supply with Damp Location Enclosure
PSE-NONE | Remote Power Supply without Enclosure
PSE-WL | Remote Power Supply with Wet Location Enclosure

Linear Run

Select this option only for runs longer than 8'. Continuous runs are supplied with one power supply per fixture. 8FT-L113W is not available with the RUN option. INSTALLATION NOTES: During installation the contractor is responsible to use actual fixtures to ensure accurate mounting centers from one fixture to the next along the length of the linear run.

RUN 1 | Continuous Run
OAL | Specify Length of Run
  ft.

1 For a take-off and pricing, contact factory

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR will be included in enclosure specified above. When specifying EMR with RUN, the first fixture in the run will be the emergency unit.  If other or different Emergency units are needed, contact factory.  Additional Power feed location will be required to power non-emergency sections.

EMR 2 | Emergency Battery Remote

2 EMR not available with PSE-NONE

Optical Distribution *

See IES zip file for photometrics for each distribution.

DF_FT | Forward Throw (default)
SMA 3 | Symmetric 60 Degree Beam - 120 Degree spread
SMB 4 | Symmetric 30 Degree Beam - 60 Degree spread

3 Delivered lumens are 90% of the output shown under Light Source; see IES file
4 Delivered lumens are 104% of the output shown under Light Source; see IES file
FT
SMA
SMB

Options

F | Fusing

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
Request a modification
prev
close
next
