Pavo 2" Exterior - Wall
Pavo 2" Exterior - Wall
SEW12377 2.00 in
Pavo 2" Exterior - Wall

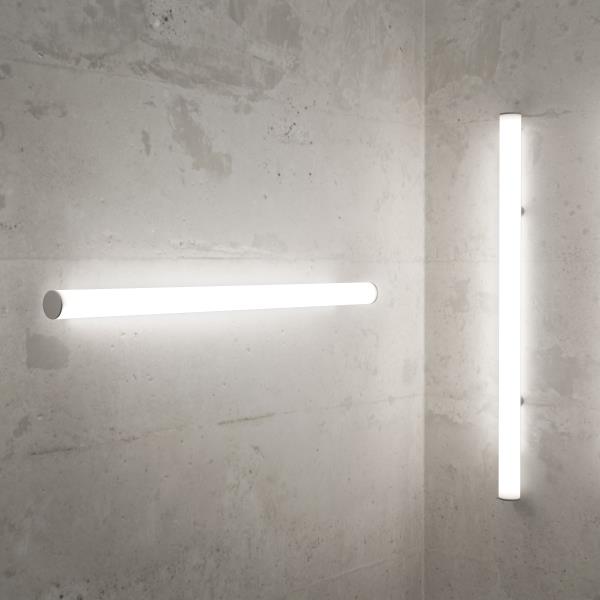

Bring refined design to outdoor spaces with this impeccably illuminated sconce. Pavo 2” Exterior sets itself apart with the exceptional fit and finish demanded by your most important projects. Built with finesse but also to withstand the elements, the IP66-rated luminaire will surprise you with its robust construction and durability. Available in 1’ to 5’ lengths and a variety of mounting options, Pavo 2” Exterior is a simple yet sophisticated way to light entrances, walkways, and other outdoor spaces with pure lines of light. It's the design element you've been missing.
Pavo 2" Exterior - Wall SEW12377

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Linearly-lit wall sconce provides even illumination along the entire length of the lens
  • Meticulously designed ends have no visible shadowing
  • Minimal bracketry and hardware for an exceptionally clean look
  • An expression of light in its most basic form
  • Provides functional light, up to 750 lumens per foot, with comfortable luminance levels
  • Optional decorative end caps add design flexibility
  • Creates continuity between your interior and exterior designs when paired with other elements of the Pavo family
  • Mount vertically or horizontally on walls or ceilings
  • Compliant with Americans with Disabilities Act (ADA) requirements
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: 107 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Remote or integral Class 2 power supply. Max distance to the driver is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • MAX AMBIENT OPERATING TEMP: 50°C (122°F)
  • MIN AMBIENT OPERATING TEMP: -20°C (-4°F)
  • DIMMING: 0-10V controls standard to 1%
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: White matte acrylic
  • CONSTRUCTION: Aluminum and stainless steel
  • FINISH: Solid flat end plates and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or a brushed aluminum finish. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests; including different sizes
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in wet locations; suitable for interior or exterior use. IP66 rated fixture per International Electrotechnical Commission (IEC) certifies fixture as dust-tight and protected against powerful water jets

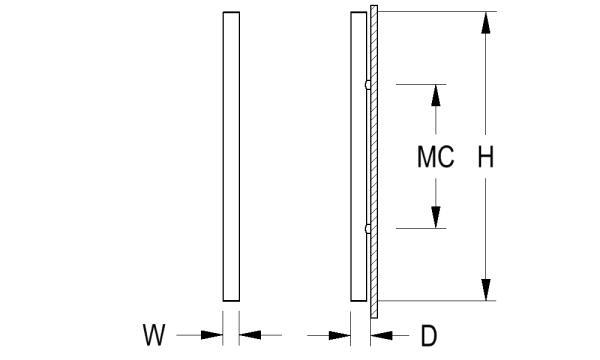

DIMENSIONS

Dimensions
1FT
W
2 in
5.1 cm
H
12 in
30.5 cm
D
2.5 in
6.4 cm
MC
6 in
15.2 cm
Mounting Weight: Approximate: 5 lb (3 kg)
2FT
W
2 in
5.1 cm
H
24 in
61 cm
D
2.5 in
6.4 cm
MC
12 in
30.5 cm
Mounting Weight: Approximate: 5 lb (3 kg)
3FT
W
2 in
5.1 cm
H
36 in
91.4 cm
D
2.5 in
6.4 cm
MC
18 in
45.7 cm
Mounting Weight: Approximate: 5 lb (3 kg)
4FT
W
2 in
5.1 cm
H
48 in
121.9 cm
D
2.5 in
6.4 cm
MC
24 in
61 cm
Mounting Weight: Approximate: 10 lb (5 kg)
5FT
W
2 in
5.1 cm
H
60 in
152.4 cm
D
2.5 in
6.4 cm
MC
30 in
76.2 cm
Mounting Weight: Approximate: 10 lb (5 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

1 FOOT NOMINAL FIXTURE
1FT-L5W | White 5W LED Light Engine

Delivered Lumens: 537

1FT-L7W | White 7W LED Light Engine

Delivered Lumens: 752

CUST_Out_1FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 5.0 - Max 7.0
LU   Min 535 - Max 749
2 FOOT NOMINAL FIXTURE
2FT-L7W | White 7W LED Light Engine

Delivered Lumens: 752

2FT-L14W | White 14W LED Light Engine

Delivered Lumens: 1,504

CUST_Out_2FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 7.0 - Max 14.0
LU   Min 749 - Max 1498
3 FOOT NOMINAL FIXTURE
3FT-L10W | White 10W LED Light Engine

Delivered Lumens: 1,074

3FT-L20W | White 20W LED Light Engine

Delivered Lumens: 2,148

CUST_Out_3FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 10.0 - Max 20.0
LU   Min 1070 - Max 2140
4 FOOT NOMINAL FIXTURE
4FT-L14W | White 14W LED Light Engine

Delivered Lumens: 1,504

4FT-L28W | White 28W LED Light Engine

Delivered Lumens: 3,007

CUST_Out_4FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 14.0 - Max 28.0
LU   Min 1498 - Max 2996
5 FOOT NOMINAL FIXTURE
5FT-L18W | White 18W LED Light Engine

Delivered Lumens: 1,933

5FT-L36W | White 36W LED Light Engine

Delivered Lumens: 3,866

CUST_Out_5FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 18.0 - Max 36.0
LU   Min 1926 - Max 3852

*For requests outside Min-Max range, please contact factory.

Voltage *

120-277V | Universal Voltage

Lamp Options *

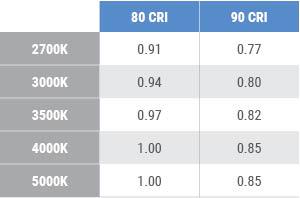

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Diffuser *

MA01 | Matte Acrylic Diffuser Lens (default)

MA01

Mounting *

MCS mounting supplied with 8’ lead length and 2.25” round goof plates. REC mounting requires a cut out for the recessed box that measures 2.75” wide by a height calculated as MC plus 1.75” and a minimum wall cavity depth of 2”. Consider wall framing accordingly, as application requires.

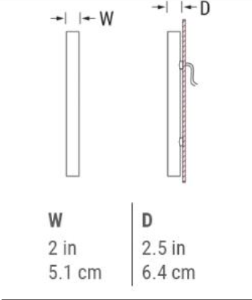

MCS-D | Invisible Stems, Remote Power Supply with Damp Location Enclosure
MCS-W | Invisible Stems, Remote Power Supply with Wet Location Enclosure

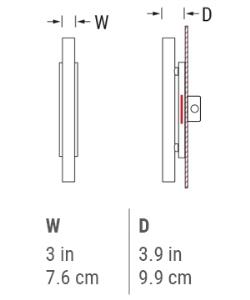

REC | Recessed, Integral Power Supply

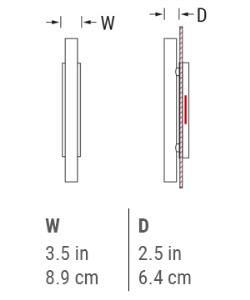

SRF | Surface Mount, Integral Power Supply

MCS-D
MCS-W
REC
SRF

Emergency

EMR 1 | Emergency Battery Remote

1 EMR not available with PSE-NONE

Accents

Optional aluminum end caps are made of extruded aluminum and finished to your specification. Contact factory to discuss variations.

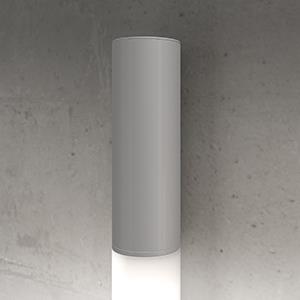

AC1 | Add 3" Decorative Accents to Top and Bottom

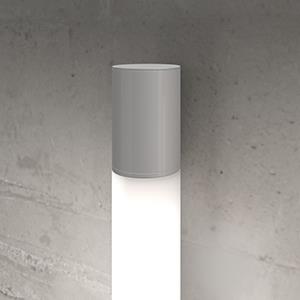

AC2 | Add 6" Decorative Accents to Top and Bottom

AC1
AC2
