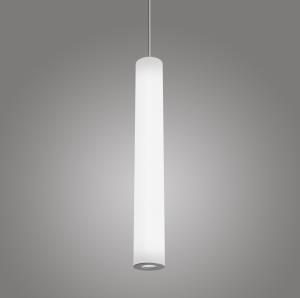

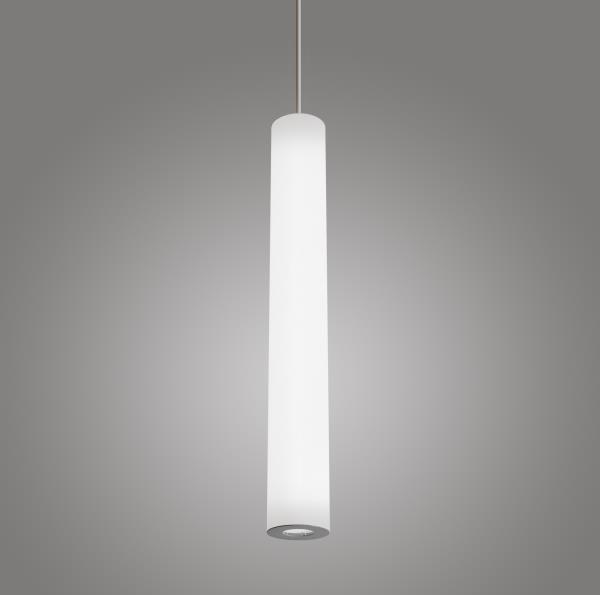

Minimalist form meets functional lighting with the Pavo pendant. Characterized by its meticulous attention to detail, Pavo features even illumination (top to bottom and radially) and clean-finished ends that satisfy the highest-end applications. And true to its minimalist design, it has no metal collars to break the form. Hang individual pendants or mix different sizes to create visual arrays. Available in 4" to 12" diameters and lengths from 1 to 8 feet long.
Pavo 6" SIP12126

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Matching bi-planar finish detail on top and bottom maximizes visual appeal from all angles
  • Integrated LED luminaire design features a sophisticated passive cooling system with integrated heat sink
  • 1100lm integral regressed downlight available with beam spread of spot (19°), narrow (35°), and medium (45°)
  • Ambient and downlight components are standard with separate switching and 0-10v dimming
  • Add a splash of color with optional top and bottom decorative accents
  • Available in either stem or power cord suspension with driver located in canopy; remote driver option available for minimal canopy profile
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine (contact factory for RGBW or Tunable White)
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  up to 110 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Class 2 power supply integrated in canopy standard; remote optional. Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • DIFFUSER: White matte acrylic diffuser standard; white gloss acrylic diffuser optional
  • CONSTRUCTION:  Aluminum
  • FINISH:  End plates and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors. Brushed aluminum available on decorative accents only. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including RGBW, Tunable White, or other sizes
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

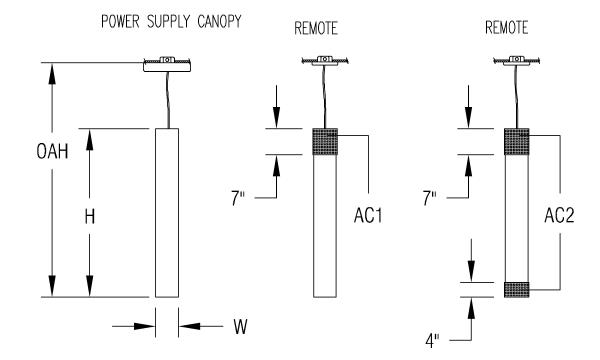

DIMENSIONS

Dimensions
1FT
W
6 in
15.2 cm
H
10.6 in
27.1 cm
OAH
66 in
167.6 cm
Mounting Weight: Approximate: 10 lb (5 kg)
2FT
W
6 in
15.2 cm
H
22.2 in
56.4 cm
OAH
74 in
188 cm
Mounting Weight: Approximate: 10 lb (5 kg)
3FT
W
6 in
15.2 cm
H
33.9 in
86.1 cm
OAH
85 in
215.9 cm
Mounting Weight: Approximate: 15 lb (7 kg)
4FT
W
6 in
15.2 cm
H
45.3 in
115.1 cm
OAH
97 in
246.4 cm
Mounting Weight: Approximate: 15 lb (7 kg)
6FT
W
6 in
15.2 cm
H
68.7 in
174.5 cm
OAH
121 in
307.3 cm
Mounting Weight: Approximate: 20 lb (10 kg)
8FT
W
6 in
15.2 cm
H
91.9 in
233.4 cm
OAH
145 in
368.3 cm
Mounting Weight: Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

1 FOOT NOMINAL FIXTURE
L8W | White 8W LED Light Engine

Delivered Lumens: 885

2 FOOT NOMINAL FIXTURE
L11W | White 11W LED Light Engine

Delivered Lumens: 1,217

L23W | White 23W LED Light Engine

Delivered Lumens: 2,544

3 FOOT NOMINAL FIXTURE
L19W | White 19W LED Light Engine

Delivered Lumens: 2,101

L38W | Whtie 38W LED Light Engine

Delivered Lumens: 4,203

4 FOOT NOMINAL FIXTURE
L26W | White 26W LED Light Engine

Delivered Lumens: 2,876

L53W | White 53W LED Light Engine

Delivered Lumens: 5,862

6 FOOT NOMINAL FIXTURE
L42W | White 42W LED Light Engine

Delivered Lumens: 4,645

L83W | White 83W LED Light Engine

Delivered Lumens: 9,180

8 FOOT NOMINAL FIXTURE
L57W | White 57W LED Light Engine

Delivered Lumens: 6,304


Voltage *

120-277V | Universal Voltage

Lamp Options *

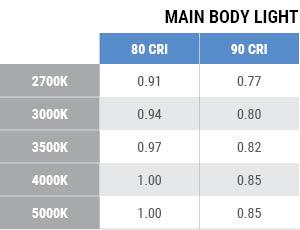

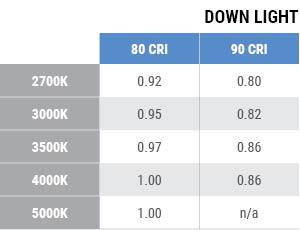

Apply multiplier from charts for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90 1

1 Not available in 5000K

Controls *

All controls allow for independent dimming of ambient and downlight components. Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR 2 | Lutron Athena Wireless Node, 1% Dimming
NX 2 | Current NX Wireless, 1% Dimming
NLTA 2 | Acuity nLight Air, 1% Dimming

2 Canopy dimensions may change for PSC and PSS mountings.

Light Source Option *

If you’re specifying a downlight option, layer the ambient and downlight IES files. Downlight CCT will match the Lamp Options selection above. Please choose one:

14W-19° Spot | 14W (1100 delivered lumens) Downlight - 19° Beam

14W-35° Narrow | 14W (1100 delivered lumens) Downlight - 35° Beam

14W-45° Medium | 14W (1100 delivered lumens) Downlight - 45° Beam

No DL | No Downlight

14W-19° Spot
14W-35° Narrow
14W-45° Medium
No DL

Diffuser *

DF_MA01 | Matte Acrylic Diffuser Lens (default)
HP03 | Amber Hand Painted Acrylic Diffuser
OA | White Gloss Acrylic Diffuser
HP01- 1' | Silver Hand Painted Acrylic Diffuser
HP02- 1' | Beige Hand Painted Acrylic Diffuser
HP03- 1' | Amber Hand Painted Acrylic Diffuser
HP01- 2' | Silver Hand Painted Acrylic Diffuser
HP02- 2' | Beige Hand Painted Acrylic Diffuser
HP03- 2' | Amber Hand Painted Acrylic Diffuser
HP01- 3' | Silver Hand Painted Acrylic Diffuser
HP02- 3' | Beige Hand Painted Acrylic Diffuser
HP03- 3' | Amber Hand Painted Acrylic Diffuser
HP01- 4' | Silver Hand Painted Acrylic Diffuser
HP02- 4' | Beige Hand Painted Acrylic Diffuser
HP03- 4' | Amber Hand Painted Acrylic Diffuser
HP01- 6' | Silver Hand Painted Acrylic Diffuser
HP02- 6' | Beige Hand Painted Acrylic Diffuser
HP03- 6' | Amber Hand Painted Acrylic Diffuser
HP01- 8' | Silver Hand Painted Acrylic Diffuser
HP02- 8' | Beige Hand Painted Acrylic Diffuser
HP03- 8' | Amber Hand Painted Acrylic Diffuser
MA01
HP03
OA

Mounting *

Mounts to standard 4" octagonal junction box. White power cord standard, adjustable up to OAH. 1' through 3' fixtures have a 10" diameter power supply canopy and 4' through 8’ fixtures have a 12" diameter power supply canopy. Canopies for the remote power supplies feature minimal profile with a 22.5 degree swivel. Choose a mounting from below:

DF_PSC 3 | 10"/12" Power Supply Canopy with Cord Suspension, (default)
CAS | 5.5" Canopy & Stem, Remote Supply
CAC | Power Cord Suspension with Remote Power Supply & 5" Canopy
PSS 4 | 10"/12" Power Supply Canopy & Stem

3 1' to 3' sizes have a 10" canopy and 4' to 8' sizes have a 12" canopy
4 1' to 3' sizes have a 10" canopy; 4' to 8' sizes have a 12" canopy
PSC
CAS
CAC
PSS

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Accents

AC1 | Decorative Accent Top
AC2 5 | Decorative Accent Top and Bottom

5 Unavailable in 1 foot fixture

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH 6 | Pendant suspension length other than standard
Enter length:   Select a light source

6 Minimum OAH = fixture length + 6", to allow for access to mounting/wiring
