Pavo 4" & 6" Clusters

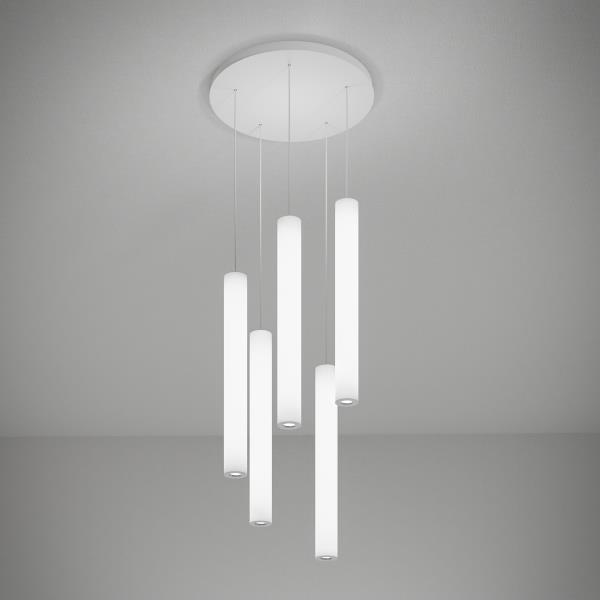

Effortlessly group five Pavo 4" cylinders into a cohesive design element on this single canopy array. The configuration combines the simplicity, clean lines, and balanced luminance that you’re looking for in an ideal luminous form. Designed with meticulous attention to detail, each luminaire is evenly illuminated from top to bottom and radially. Well-finished ends satisfy the highest-end applications. And true to its minimalist design, it has no metal collars to break the form. Alternate sizes and configurations are available upon request.
Pavo 4" & 6" Clusters SIP12200

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • A unified grouping of 3' luminous cylinders
  • Matching bi-planar finish detail on top and bottom maximizes visual appeal from all angles
  • Integrated LED luminaire design features a sophisticated passive cooling system with integrated heat sink
  • 1100lm integral regressed downlight available with beam spread of spot (19°), narrow (35°), and medium (45°)
  • Ambient and downlight components are standard with separate switching and 0-10v dimming
  • Available in either stem or power cord suspension
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine (contact factory for RGBW or Tunable White)
  • CRI: 80+ (contact factory for 90+)
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  up to 110 lm/W delivered
  • CCT:  3000K, 3500K, or 4000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Class 2 power supply integrated in canopy standard; remote optional.  Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • DIFFUSER: White matte acrylic diffuser standard; white gloss acrylic diffuser available (contact factory)
  • CONSTRUCTION:  Aluminum
  • FINISH:  End plates and mounting components finished to match. To specify separately, contact factory. Choose from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including RGBW, Tunable White, other sizes, or configurations
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

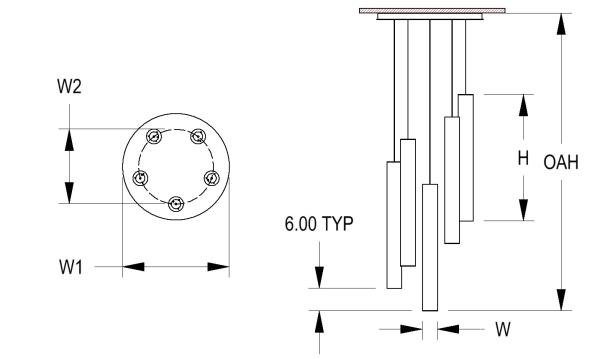

DIMENSIONS

Dimensions
W
4 in
10.2 cm
H
33.9 in
86.1 cm
OAH
85 in
215.9 cm
W1
28 in
71.1 cm
W2
20 in
50.8 cm
Mounting Weight
Approximate: 75 lb (35 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request. Please note, photometry files contain data for single pendants. To create clusters, layer the individual files according to your project’s specification.

(5) L19W | White 95W LED Light Engine

Delivered Lumens: 10,505

(5) L38W | White 190W LED Light Engine

Delivered Lumens: 21,015


Voltage *

120-277V | Universal Voltage

Lamp Options *

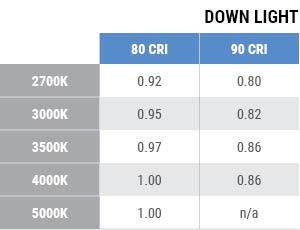

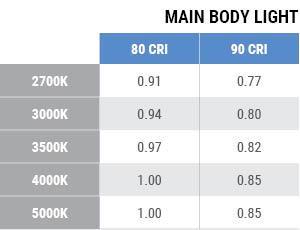

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Light Source Option *

If you’re specifying a downlight option, layer the ambient and downlight IES files. Downlight CCT will match the Lamp Options selection above. Please choose one:

(5) 14W-19° Spot | 70W (Total Delivered Lumens: 5,500) Downlight - 19° Beam

(5) 14W-35° Narrow | 70W (Total Delivered Lumens: 5,500) Downlight - 35° Beam

(5) 14W-45° Medium | 70W (Total Delivered Lumens: 5,500) Downlight - 45° Beam

No DL | No Downlight

(5) 14W-19° Spot
(5) 14W-35° Narrow
(5) 14W-45° Medium
No DL

Diffuser *

DF_MA01 | Matte Acrylic Diffuser Lens (default)

MA01

Mounting *

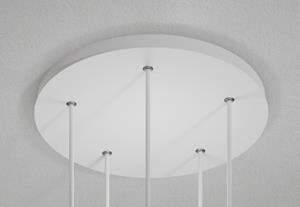

Mounts to standard 4" octagonal junction box with auxiliary mounting holes. Power cord (PSC) is white and is adjustable up to OAH. Stem mounting (PSS) features a 45 degree swivel. Choose a mounting from below:

PSC | 28" Canopy with Power Supply & Power Cord Suspension
PSS | 28" Canopy with Power Supply & Stems

PSC
PSS

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
OAH

Request a modification
