SIP12253 4.00 in
Pavo Square 4"

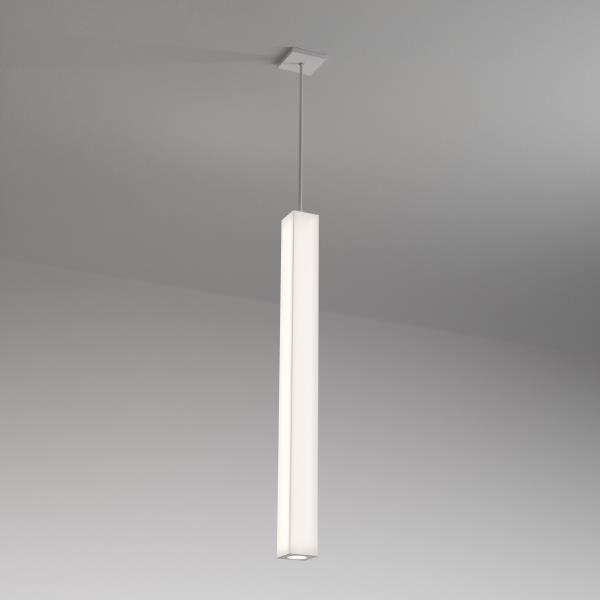

Impeccably illuminated from top to bottom, Pavo Square is the crisp, clean luminous form you’ve been looking for. The rectangular pendant is center-lit with a four-sided light engine that runs the entire length of the lens. Handcrafted with exceptional attention to detail, the diffuser has mitered corners that give the luminaire its distinctive edge. Specify it with the ambient component only or add a performance downlight for full lighting. Pavo Square is available with a 4” or 6” wide diffuser in lengths from 1’ to 8’.
Pavo Square 4" SIP12253

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Integrated LED luminaire design features a sophisticated passive cooling system with integrated heat sink
  • Crisp, mitered corners look sharp and are well-lit
  • Meticulously designed ends have no visible shadowing
  • 1100lm integral regressed downlight available with beam spread of spot (19°), narrow (35°), and medium (45°)
  • Ambient and downlight components are separately controlled
  • Available in either stem or power cord suspension with driver located in canopy; remote driver option available for minimal canopy profile
  • Contact the factory for multi-unit arrays on a single canopy
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: Up to 83 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Choose from Class 2 power supply integrated in canopy or remote. Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • DIFFUSER: White matte acrylic diffuser standard
  • CONSTRUCTION: Aluminum
  • FINISH: End plates and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors. Brushed aluminum available on decorative accents only. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including other sizes
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

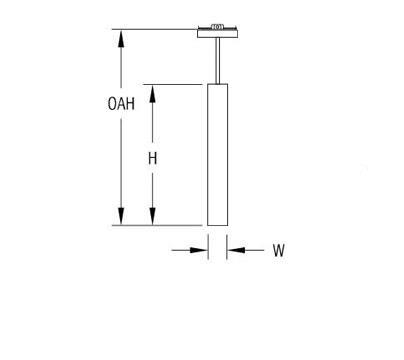

DIMENSIONS

Dimensions
1FT
W
4 in
10.2 cm
H
12 in
30.5 cm
OAH
66 in
167.6 cm
Mounting Weight: Approximate: 10 lb (5 kg)
2FT
W
4 in
10.2 cm
H
24 in
61 cm
OAH
74 in
188 cm
Mounting Weight: Approximate: 10 lb (5 kg)
3FT
W
4 in
10.2 cm
H
36 in
91.4 cm
OAH
85 in
215.9 cm
Mounting Weight: Approximate: 15 lb (7 kg)
4FT
W
4 in
10.2 cm
H
48 in
121.9 cm
OAH
97 in
246.4 cm
Mounting Weight: Approximate: 15 lb (7 kg)
6FT
W
4 in
10.2 cm
H
72 in
182.9 cm
OAH
121 in
307.3 cm
Mounting Weight: Approximate: 20 lb (10 kg)
8FT
W
4 in
10.2 cm
H
96 in
243.8 cm
OAH
145 in
368.3 cm
Mounting Weight: Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

1 FOOT NOMINAL FIXTURE
1FT-L8W | White 8W LED Light Engine

Delivered Lumens: 668

2 FOOT NOMINAL FIXTURE
2FT-L8W | White 8W LED Light Engine

Delivered Lumens: 668

2FT-L16W | White 16W LED Light Engine

Delivered Lumens: 1,336

3 FOOT NOMINAL FIXTURE
3FT-L12W | White 12W LED Light Engine

Delivered Lumens: 1,002

3FT-L24W | White 24W LED Light Engine

Delivered Lumens: 2,004

4 FOOT NOMINAL FIXTURE
4FT-L16W | White 16W LED Light Engine

Delivered Lumens: 1,336

4FT-L32W | White 32W LED Light Engine

Delivered Lumens: 2,672

6 FOOT NOMINAL FIXTURE
6FT-L24W | White 24W LED Light Engine

Delivered Lumens: 2,004

6FT-L48W | White 48W LED Light Engine

Delivered Lumens: 4,008

8 FOOT NOMINAL FIXTURE
8FT-L32W | White 32W LED Light Engine

Delivered Lumens: 2,672

8FT-L65W | White 65W LED Light Engine

Delivered Lumens: 5,428


Voltage *

120-277V | Universal Voltage

Lamp Options *

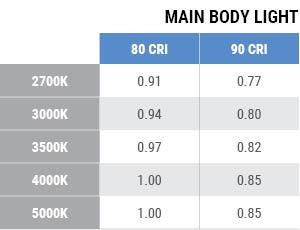

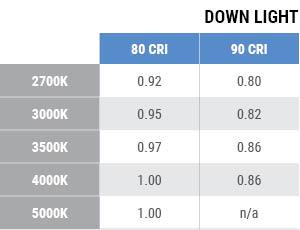

Apply multiplier from charts for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90 1

1 Not available in 5000K

Controls *

All controls allow for independent dimming of ambient and downlight components. Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR 2 | Lutron Athena Wireless Node, 1% Dimming
NX 2 | Current NX Wireless, 1% Dimming
NLTA 2 | Acuity nLight Air, 1% Dimming

2 Canopy dimensions may change for PSC and PSS mountings.

Light Source Option *

If you’re specifying a downlight option, layer the ambient and downlight IES files. Downlight CCT will match the Lamp Options selection above. Please choose one:

14W-19° Spot | 14W (1100 delivered lumens) Downlight - 19° Beam

14W-35° Narrow | 14W (1100 delivered lumens) Downlight - 35° Beam

14W-45° Medium | 14W (1100 delivered lumens) Downlight - 45° Beam

No DL | No Downlight

14W-19° Spot
14W-35° Narrow
14W-45° Medium
No DL

Diffuser

MA01 | Matte Acrylic Diffuser Lens (default)
OA | White Gloss Acrylic Diffuser
HP01- 1' | Silver Hand Painted Acrylic Diffuser
HP02- 1' | Beige Hand Painted Acrylic Diffuser
HP03- 1' | Amber Hand Painted Acrylic Diffuser
HP01- 2' | Silver Hand Painted Acrylic Diffuser
HP02- 2' | Beige Hand Painted Acrylic Diffuser
HP03- 2' | Amber Hand Painted Acrylic Diffuser
HP01- 3' | Silver Hand Painted Acrylic Diffuser
HP02- 3' | Beige Hand Painted Acrylic Diffuser
HP03- 3' | Amber Hand Painted Acrylic Diffuser
HP01- 4' | Silver Hand Painted Acrylic Diffuser
HP02- 4' | Beige Hand Painted Acrylic Diffuser
HP03- 4' | Amber Hand Painted Acrylic Diffuser
HP01- 6' | Silver Hand Painted Acrylic Diffuser
HP02- 6' | Beige Hand Painted Acrylic Diffuser
HP03- 6' | Amber Hand Painted Acrylic Diffuser
HP01- 8' | Silver Hand Painted Acrylic Diffuser
HP02- 8' | Beige Hand Painted Acrylic Diffuser
HP03- 8' | Amber Hand Painted Acrylic Diffuser

MA01
OA

Mounting *

Mounts to standard 4" octagonal junction box. The power cord is white and adjustable up to OAH. When the PSC or PSS mounting is specified, 1' through 3' fixtures have a 10" canopy and 4' through 8’ fixtures have a 12" canopy. Specify a stem mounting (CAS or PSS) to prevent fixture rotation.

CAS | 5.5” Square Flat Canopy & Stem, Remote Power Supply (22.5° swivel)
CAC | 5” Square Flat Canopy & White Power Cord Suspension, Remote Power Supply
PSC 3 | 10/12” Square Canopy with Power Supply & White Power Cord Suspension
PSS 3 | 10/12” Square Canopy with Power Supply & Stem (22.5° swivel)

3 1' to 3' sizes have a 10" canopy; 4' to 8' sizes have a 12" canopy
CAS
CAC
PSC
PSS

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH 4 | Pendant suspension length other than standard
Enter length:   Select a light source

4 Minimum OAH = fixture length + 6", to allow for access to mounting/wiring
OAH
