Zynn 2" Lines + Arcs

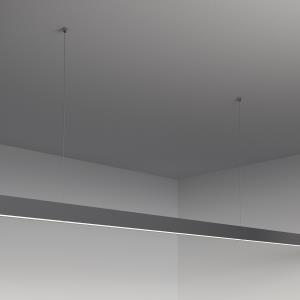

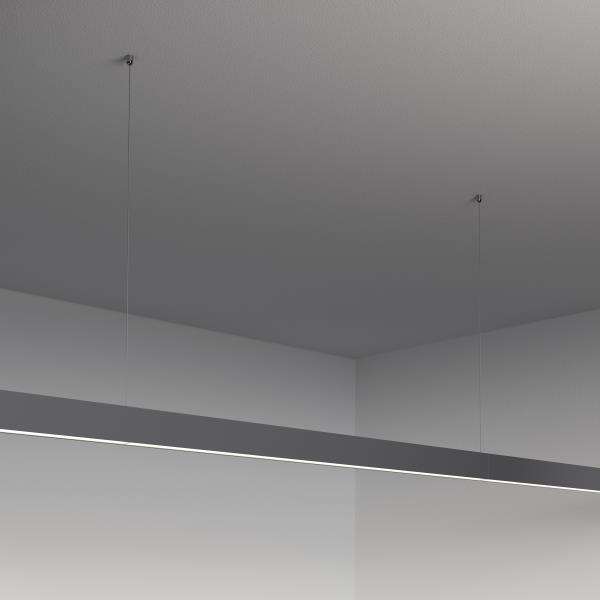

Anything is possible with this creative modular system of luminous lines. Zynn 2” Lines + Arcs makes it fast and easy for you to create extraordinary curvilinear and rectilinear designs – all with standard products. Turn corners, sweep around columns, create geometric shapes, or form intricate patterns with smooth, continuous lines of light. Professional and refined, the system delivers up to 960 lumens per foot. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.
Zynn 2" Lines + Arcs AIP12255

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Sleek 2" x 3" profile
  • Clean, continuous lines of light with zero pixilation
  • Up to 960 lm/ft
  • Provides functional lighting with comfortable luminance levels and is ideal for separating open offices, providing wayfinding, or adding markings
  • The system can go up to 500' with just one power drop
  • Maneuvers easily around obstructions
  • Superior fit and finish
  • Keeps ceilings clean with minimal mounting hardware
  • Hidden internal aircraft cable grippers are easy to adjust
  • Integral power supplies with easy daisy chain wiring simplifies installation
  • Arcs (AIP12256) and Connectors (AIP12257) are ordered separately
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • DISTRIBUTION: Direct
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L80 = >54,000 Hrs.
  • EFFICACY: Up to 86 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply. Power drop kit required for each continuous run; see catalog CPS12267 to order. Connect power drops anywhere along the run.
  • MAX AMBIENT OPERATING TEMP: 32°C (90°F)
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • DIFFUSER: Matte opal acrylic
  • CONSTRUCTION: Housing fabricated from 6000 series aluminum extrusion
  • FINISH: Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including custom lengths
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

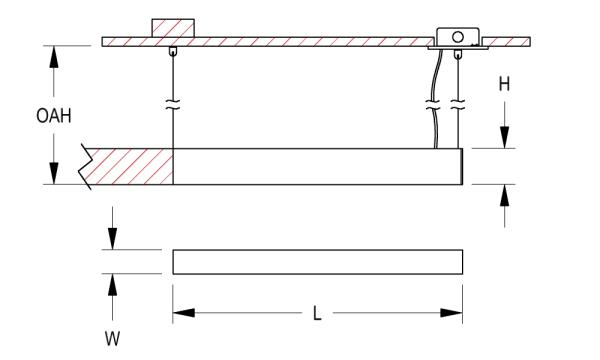

DIMENSIONS

Dimensions
2FT
W
2 in
5.1 cm
L
24 in
61 cm
H
3 in
7.6 cm
OAH
54 in
137.2 cm
Mounting Weight: Approximate: 5 lb (3 kg)
3FT
W
2 in
5.1 cm
L
36 in
91.4 cm
H
3 in
7.6 cm
OAH
54 in
137.2 cm
Mounting Weight: Approximate: 10 lb (5 kg)
4FT
W
2 in
5.1 cm
L
48 in
121.9 cm
H
3 in
7.6 cm
OAH
54 in
137.2 cm
Mounting Weight: Approximate: 10 lb (5 kg)
5FT
W
2 in
5.1 cm
L
60 in
152.4 cm
H
3 in
7.6 cm
OAH
54 in
137.2 cm
Mounting Weight: Approximate: 10 lb (5 kg)
6FT
W
2 in
5.1 cm
L
72 in
182.9 cm
H
3 in
7.6 cm
OAH
54 in
137.2 cm
Mounting Weight: Approximate: 15 lb (7 kg)
7FT
W
2 in
5.1 cm
L
84 in
213.4 cm
H
3 in
7.6 cm
OAH
54 in
137.2 cm
Mounting Weight: Approximate: 15 lb (7 kg)
8FT
W
2 in
5.1 cm
L
96 in
243.8 cm
H
3 in
7.6 cm
OAH
54 in
137.2 cm
Mounting Weight: Approximate: 20 lb (10 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

2 FOOT NOMINAL FIXTURE
2FT-L11W | White 11W LED Light Engine

Delivered Lumens: 945

2FT-L22W | White 22W LED Light Engine

Delivered Lumens: 1,890

3 FOOT NOMINAL FIXTURE
3FT-L17W | White 17W LED Light Engine

Delivered Lumens: 1,460

3FT-L34W | White 34W LED Light Engine

Delivered Lumens: 2,921

4 FOOT NOMINAL FIXTURE
4FT-L22W | White 22W LED Light Engine

Delivered Lumens: 1,890

4FT-L44W | White 44W LED Light Engine

Delivered Lumens: 3,780

5 FOOT NOMINAL FIXTURE
5FT-L28W | White 28W LED Light Engine

Delivered Lumens: 2,405

5FT-L56W | White 56W LED Light Engine

Delivered Lumens: 4,810

6 FOOT NOMINAL FIXTURE
6FT-L34W | White 34W LED Light Engine

Delivered Lumens: 2,921

6FT-L68W | White 68W LED Light Engine

Delivered Lumens: 5,841

7 FOOT NOMINAL FIXTURE
7FT-L39W | White 39W LED Light Engine

Delivered Lumens: 3,350

7FT-L79W | White 79W LED Light Engine

Delivered Lumens: 6,786

8 FOOT NOMINAL FIXTURE
8FT-L44W | White 44W LED Light Engine

Delivered Lumens: 3,780

8FT-L89W | White 89W LED Light Engine

Delivered Lumens: 7,645


Voltage *

120-277V | Universal Voltage

Lamp Options *

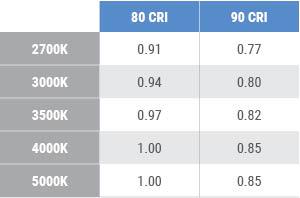

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR 1 | Lutron Athena Wireless Node, 1% Dimming
NX 1 | Current NX Wireless, 1% Dimming
NLTA 1 | Acuity nLight Air, 1% Dimming

1 Contact factory for complimentary layout including controls package.

Mounting *

For mounting center information, go to https://www.spilighting.com/AIP12255 > Downloads > Install Sheets. Power drop canopy mounts to standard 4” octagonal junction box. Field adjustable aircraft cables allow fixture to be mounted at an application appropriate height (up to OAH). The aircraft ceiling coupler can be connected to the power drop canopy or can be separated from the power drop canopy to gain flexibility in mounting. See Downloads on website for mounting center measurements. Aircraft cable suspension uses ceiling coupler to mount to structure above. Coupler accepts 1/4-20 threaded rod or can be anchored using through hole (hardware by others). INSTALLATION NOTES: During installation, the contractor is responsible for using the actual fixtures to ensure accurate mounting centers from one fixture to the next along the length of the linear run.

DF_AC | Aircraft Cable (default)

Emergency

EMR is provided with a remote 10W, constant power battery back-up, for 90 Minutes of emergency operation, in a damp listed enclosure. EMC option if for direct connection to alternate emergency circuit (EM power By Others). All EM options in common section are provided with pass through wiring for normal power circuit within the configuration.

EMC | Emergency Circuit
EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH

Configuration *

Start/End units feature one joiner end and one finished end. Common units feature two joiner ends. Start/End and Common sections do not come with a power drop; see CPS12267 to order separately. Contact the factory for help determining how many drops your layout requires.

COM 2 | Common
SAP | Standalone Pendant
S/E 2 | Start/End

2 Excludes power drop kit; see catalog ID CPS12267 to order
Request a modification
prev
close
next
