Tryg Wall - Indirect
SIW11344 38.00 in

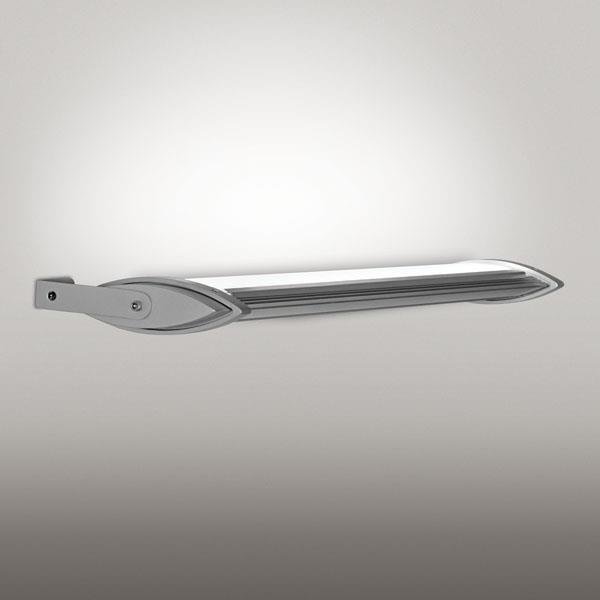

Tryg Wall - Indirect
Tryg, a low profile LED fixture, offers a unique design and durability suitable for any project. Its creative design acts as an efficient heat sink, maximizing output and life by allowing the LEDs to operate at an optimal temperature. Tryg is suitable for a variety of applications, and its flexible design lends itself to customization and modification.
Tryg Wall - Indirect SIW11344

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • All visible fasteners are flush mounted, providing a clean design
  • Locks in desired orientation for precise fixture alignment
  • Anodized finish provides optimal thermal effectiveness and durable corrosion protection
  • Versatile design allows fixture to be mounted in any orientation
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L80 = >60,000 Hrs at 38°C ambient temperature
  • EFFICACY:  82 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • DRIVER:   Includes remote Class 2 power supply and enclosure. 36" lead length standard; black power cord standard unless otherwise specified.
  • DIMMING:  0-10V controls standard to 1%
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • DIFFUSER: Optical grade clear acrylic lens optimizes performance
  • CONSTRUCTION:  Extruded aluminum construction provides durable protection for internal components and is recyclable
  • FINISH:  Housing available in anodized finishes only. Mounting components painted to match.
  • MODIFICATIONS: Consult factory for all modification requests; including static LED colors
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

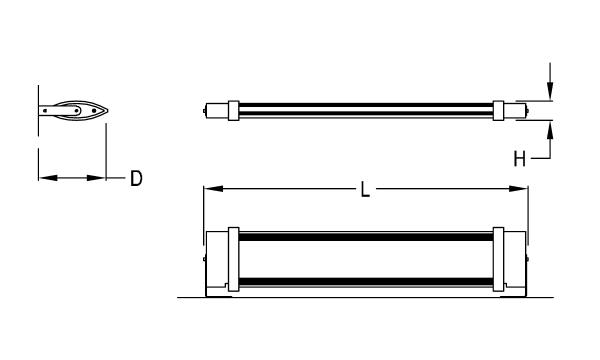

DIMENSIONS

Dimensions
H
1.4 in
3.6 cm
D
5.5 in
14 cm
L
38 in
96.5 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

Alternative wattages available upon request.

L12W | White 12W LED Light Engine

Delivered Lumens: 985

L21W | White 21W LED Light Engine

Delivered Lumens: 1,724

L42W | White 42W LED Light Engine

Delivered Lumens: 3,448

L85W | White 85W LED Light Engine

Delivered Lumens: 6,979


Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Color Accents

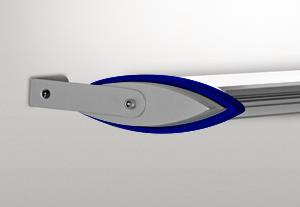

CA01 available to specify a Color Accent for the narrow band between end cap and extrusion.

CA01 | Color Accent

CA01

Options

F | Fusing
