FEATURES & BENEFITS
- 4” x 9”x 4”
- ADA compliant
- Up to 5,000 delivered lumens

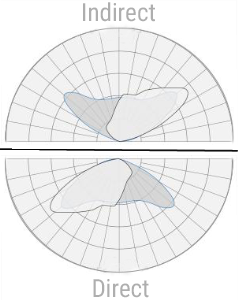

- 6 optical distributions
- Indirect and direct applications
- A true asymmetric with high-efficiency optics
- Efficacy up to 112 lm/W
- Optional backlight shield available
- Full horizontal cutoff
- Top lens removes striations and corrects for color-over-angle
- Handcrafted in USA, BABA Compliant
SPECIFICATIONS
- LIGHT SOURCE: White LED light engine
- CRI: 80+ or 90+
- ORIENTATION: Indirect or direct
- LUMEN MAINTENANCE: L85 = >72,000 Hrs at 35°C ambient temperature
- EFFICACY: Up to 112 lm/W delivered
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- VOLTAGE: 120-277V standard
- DRIVER: Includes integral Class 2 power supplies
- MAX AMBIENT OPERATING TEMP: 35°C (95°F)
- DIMMING: 1% minimum dim level standard
- CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., nLight Air, Current NX, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
- EMERGENCY: Remote battery option is provided with 10W Constant Power Battery Back-up, providing 90 minutes of emergency operation. Contact factory for other emergency options.
- CONSTRUCTION: Aluminum construction; precision injection molded optics
- FINISH: Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
- MODIFICATIONS: Consult factory for all modification requests
- APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications
DIMENSIONS
Dimensions
Mounting Weight
Approximate: 5 lb (3 kg)
