FEATURES & BENEFITS

• Seamless lens
• Canopy shape matches fixture shape
• Seamless housing is finished to your specification
• Sleek 2” x 3” profile
• Clean, continuous lines of light with zero pixelation
• Superior fit and finish
• Keep ceilings clean with minimal mounting hardware
• Hidden internal aircraft cable grippers are easy to adjust
• Handcrafted in USA, BABA Compliant

SPECIFICATIONS

• LIGHT SOURCE: White LED light engine
• DISTRIBUTION: Direct
• CRI: 80+ or 90+
• LUMEN MAINTENANCE: L80 = >60,000 Hrs.
• EFFICACY: Up to 115 lm/W delivered
• CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• VOLTAGE: 120-277V standard

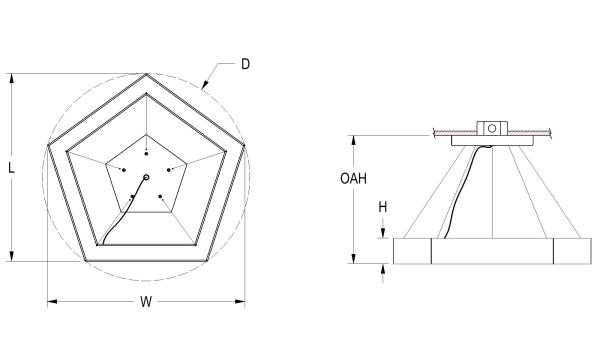

• DRIVER: Remote Class 2 power supply. Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
• MAX AMBIENT OPERATING TEMP: 42°C (108°F)
• DIMMING: 1% minimum dim level standard
• CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
• EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
• INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
• DIFFUSER: Seamless matte opal acrylic (bottom). Frosted clear acrylic (top).
• CONSTRUCTION: Housing fabricated from 6000 series aluminum extrusion
• FINISH: Housing and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
• MODIFICATIONS: Consult factory for all modification requests, including alternate sizes
• APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications
