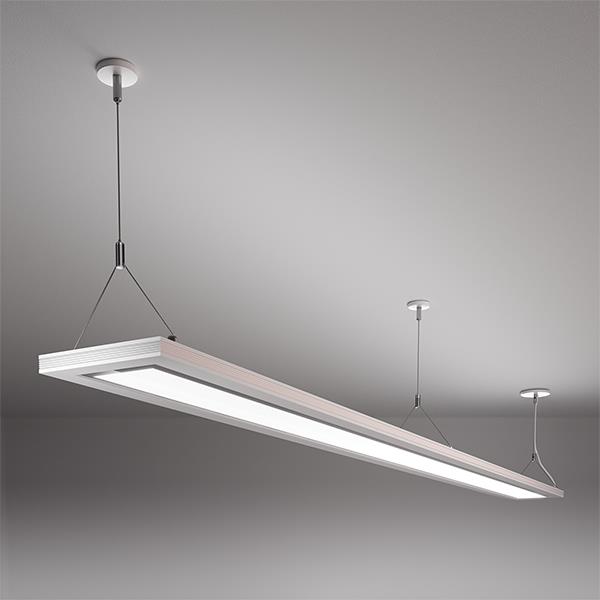

Vextra Pendent
QIP12496 96.00 in
Vextra Pendent
Our Vextra pendant delivers a refined architectural presence with balanced illumination for modern interiors.  Featuring a slim, open-frame design with uniform light distribution, this fixture provides both visual comfort and contemporary style for offices, conferences rooms, and collaborative spaces. Precision optics ensure glare control while maintaining high efficiency and a crisp, floating appearance.
Vextra Pendent QIP12496

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • 4' and 8' length options, 1000 lm/ft
  • Transparent optics
  • 0-10V dimming to 10%
  • Continuous runs, up to 40' per power feed
  • Application flexibility, T-grid or dry ceiling compatible
  • UL Listed, Damp Rated, 5 years limited warranty

DIMENSIONS

Dimensions
W
7.9 in
20 cm
H
0.9 in
2.3 cm
MC
91 in
231.1 cm
0AH
48 in
121.9 cm
L
94.5 in
240 cm
Mounting Weight
Consult Factory.
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

L80W | White 80W LED Light Engine

Voltage

120-277V | Universal Voltage

Lamp Options

3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT

CRI

DF_80 | (default)

Mounting

PSA | Power Supply Canopy & Aircraft Cable (default)

Linear Run

Select this option for runs longer than 8ft.  Longer runs are made from 8ft sections, so the overall run length needs to be divisible by 8ft.  Max run length not to exceed 40 Feet. For longer runs, please contact factory.

RUN 1 | Continuous Run

1 For a take-off and pricing, contact factory
Request a modification
