Coming in November
Novato Globes - Exterior
IP66 | IK10 | Most Lumens
AEP12504
Novato Globe - Exterior
Our exceptional Novato Globes are designed to elevate any space with unmatched versatility and durability. Create stunning focal points or subtle accents in any outdoor space by choosing from four distinct sizes.

The IK10 polysatin diffuser allows 40% more delivered lumens than acrylic globes, providing a brilliant glow and superior illumination to enhance your design.

IP66- Our fully sealed luminaire allows for power washing, but does not allow bugs and dust inside to ensure no dark matter resting in the bottom of the globe.

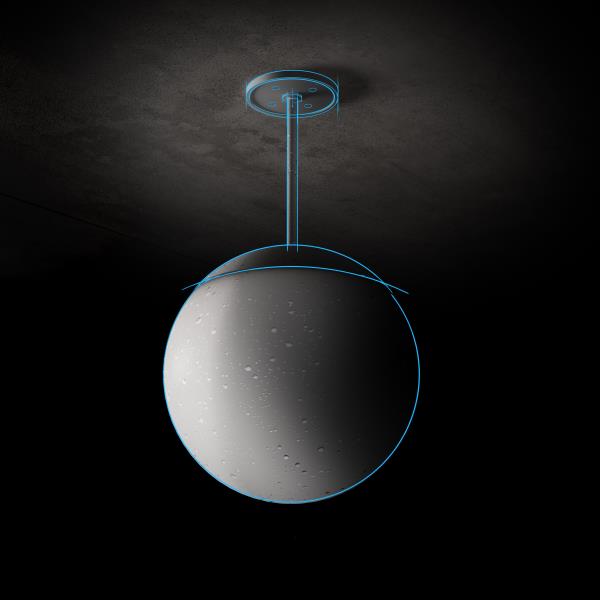

Novato Globe - Exterior AEP12504

Start building your product.

Specify your options and generate a personalized spec sheet.



PRELIMINARY SPEC SHEET

FEATURES & BENEFITS

  • 4 sizes to choose from for complete design freedom
  • IK10 PolySatin diffuser
  • Bug catcher- IP66
  • All fasteners are hidden with a customizable beauty plate
  • PolySatin diffuser allows for 40% more delivered lumens
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: Static white, tunable white, or RGBW LED light engine
  • CRI: 80 and 90
  • LUMEN MAINTENANCE: L80 = >60,000 Hrs.
  • EFFICACY: Up to 150 lm/W
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K (static white); 2700K-6500K (tunable white); 3000K (RGBW)
  • VOLTAGE: 120-277V standard
  • DRIVER: Fully integrated Class 2 power supply; remote optional
  • DIMMING: 0-10V controls standard to 1% on static white light engines. DALI-2 (DT8) standard for tunable white. DMX standard for RGBW. Other dimming options are available; contact factory.
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • DIFFUSER: One-piece, molded thermoplastic with a satin finish. IK10 rated. UV inhibitor combined with thermoplastic material before molding.
  • CONSTRUCTION:  Aluminum housing
  • FINISH:  Housing and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors, brushed aluminum, or brass finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including different sizes
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

DIMENSIONS

Dimensions
12IN
W
12 in
30.5 cm
H
11.4 in
29 cm
OAH
60 in
152.4 cm
Mounting Weight: Approximate: 6 lb (3 kg)
16IN
W
16 in
40.6 cm
H
15.8 in
40.2 cm
OAH
64 in
162.6 cm
Mounting Weight: Approximate: 8 lb (4 kg)
20IN
W
20 in
50.8 cm
H
19.4 in
49.3 cm
OAH
68 in
172.7 cm
Mounting Weight: Approximate: 13 lb (6 kg)
24IN
W
24 in
61 cm
H
23.3 in
59.2 cm
OAH
72 in
182.9 cm
Mounting Weight: Approximate: 16 lb (8 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. White light engines are available in alternative wattages upon request. 80 CRI standard for RGBW products



12 INCH DIAMETER FIXTURE
12IN-L7W-T | Tunable White 7W LED Light Engine

Delivered Lumens: 848
12IN-L12W | Static White 12W LED Light Engine

Delivered Lumens: 1,695
12IN-L14W-T | Tunable White 14W LED Light Engine

Delivered Lumens: 1,695
12IN-L6W | Static White 6W LED Light Engine

Delivered Lumens: 848
12IN-L14W-C | RGBW 14W LED Light Engine

Delivered Lumens: 605
16 INCH DIAMETER FIXTURE
16IN-L12W-T | Tunable White 12W LED Light Engine

Delivered Lumens: 1,453
16IN-L20W | Static White 20W LED Light Engine

Delivered Lumens: 2,906
16IN-L24W-T | Tunable White 24W LED Light Engine

Delivered Lumens: 2,906
16IN-L9W | Static White 9W LED Light Engine

Delivered Lumens: 1,453
16IN-L29W-C | RGBW 29W LED Light Engine

Delivered Lumens: 1,331
20 INCH DIAMETER FIXTURE
20IN-L16W | Static White 16W LED Light Engine

Delivered Lumens: 2,422
20IN-L20W-T | Tunable White 20W LED Light Engine

Delivered Lumens: 2,422
20IN-L32W | Static White 32W LED Light Engine

Delivered Lumens: 4,723
20IN-L39W-T | Tunable White 39W LED Light Engine

Delivered Lumens: 4,723
20IN-L43W-C | RGBW 43W LED Light Engine

Delivered Lumens: 1,936
24 INCH DIAMETER FIXTURE
24IN-L23W | Static White 23W LED Light Engine

Delivered Lumens: 3,391
24IN-L28W-T | Tunable White 28W LED Light Engine

Delivered Lumens: 3,391
24IN-L48W | Static White 48W LED Light Engine

Delivered Lumens: 6,661
24IN-L55W-T | Tunable White 55W LED Light Engine

Delivered Lumens: 6,661
24IN-L57W-C | RGBW 57W LED Light Engine

Delivered Lumens: 2,662

Voltage

120-277V | Universal Voltage

Lamp Options *

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT
TUN | Tunable White 2700K-6500K CCT
RGBW | RGBW 3000K CCT

CRI

DF_80 | (default)
90+HE | 90+ High Efficacy

Mounting *

Mounts to standard 4" octagonal junction box. White power cord standard, adjustable up to OAH. Stem canopies feature a minimal profile with a 22.5 degree swivel. Choose a mounting from below:

SEI | Seismic
PSA | 10" Canopy & Aircraft Cable
PSS | 10" Canopy & Stem

Emergency

EMC | Emergency Circuit

Options

BPC | Black Power Cord
F | Fusing
