Zynn 3" Lines - Wet Location
IP66 Recessed Wall & Ceiling | Vertical & Horizontal Mount | Fully Luminous 90º Corners
AES12443 3 in
Zynn 3" Lines - Wet Location

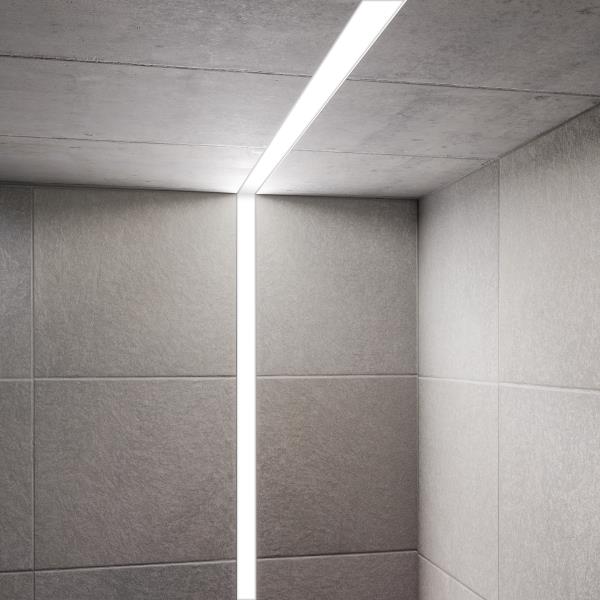

TRIM FLANGE MOUNT: Engineered for vertical and horizontal mounting, our IP66 recessed wall & ceiling fixture has unique fully luminous 90-degree corners, uniform illumination, no visible hardware, and is designed to withstand prolonged moisture exposure, extreme heat, and the bitter cold. The Zynn 3" Lines - Wet Location is the perfect fixture for building facades, awnings, and natatorium applications; and is one of the most versatile wet location linear products on the market.
Zynn 3" Lines - Wet Location AES12443

Start building your product.

Specify your options and generate a personalized spec sheet.

TRIM FLANGE MOUNT

FEATURES & BENEFITS

  • IP66 Recessed Wall & Ceiling
  • Vertical & Horizontal Mount
  • Fully luminous 90-degree corners
  • No visible fasteners
  • Mount individually or create continuous lines of light
  • Natatorium construction
  • Uniform illumination, no visible shadowing or view of diodes
  • Acrylic diffuser resists yellowing
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • CRI: 80+ or 90+
  • INGRESS PROTECTION: IP66
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: 86 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, or 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply
  • DIMMING: 0-10V controls standard to 1% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • MAX AMBIENT OPERATING TEMP: 50°C (122°F)
  • MIN AMBIENT OPERATING TEMP: -20°C (-4°F)
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Diffused acrylic
  • CONSTRUCTION: 2', 3', and 4' lengths have a seamless housing and diffuser. 6' and 8' lengths are fabricated with a two-part modular light engine and have a seamless diffuser and housing. Housing fabricated from aluminum. Corrosion resistant fasteners.
  • FINISH: Housing is finished to your specification. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including alternate lengths or remote drivers
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in wet locations. Not rated for Insulation Contact.

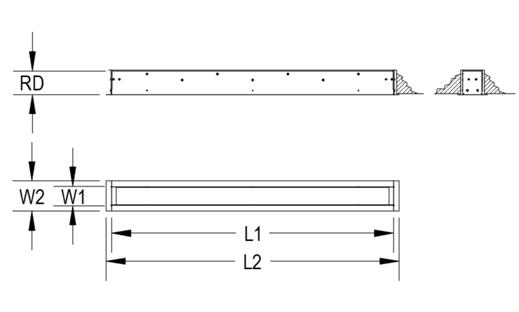

DIMENSIONS

Dimensions
2FT
L1
24 in
61 cm
L2
26 in
66 cm
RD
4 in
10.2 cm
W1
3.2 in
8.1 cm
W2
5.1 in
13 cm
Mounting Weight: Approximate: 10 lb (5 kg)
3FT
L1
36 in
91.4 cm
L2
38 in
96.5 cm
RD
4 in
10.2 cm
W1
3.2 in
8.1 cm
W2
5.1 in
13 cm
Mounting Weight: Approximate: 13 lb (6 kg)
4FT
L1
48 in
121.9 cm
L2
50 in
127 cm
RD
4 in
10.2 cm
W1
3.2 in
8.1 cm
W2
5.1 in
13 cm
Mounting Weight: Approximate: 15 lb (7 kg)
6FT
L1
72 in
182.9 cm
L2
74 in
188 cm
RD
4 in
10.2 cm
W1
3.2 in
8.1 cm
W2
5.1 in
13 cm
Mounting Weight: Approximate: 26 lb (12 kg)
8FT
L1
96 in
243.8 cm
L2
98 in
248.9 cm
RD
4 in
10.2 cm
W1
3.2 in
8.1 cm
W2
5.1 in
13 cm
Mounting Weight: Approximate: 30 lb (14 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

2 FOOT NOMINAL FIXTURE
2FT-L14W | White 14W LED Light Engine

Delivered Lumens: 1,204
2FT-L28W | White 28W LED Light Engine

Delivered Lumens: 2,408
3 FOOT NOMINAL FIXTURE
3FT-L21W | White 21W LED Light Engine

Delivered Lumens: 1,806
3FT-L42W | White 42W LED Light Engine

Delivered Lumens: 3,612
4 FOOT NOMINAL FIXTURE
4FT-L28W | White 28W LED Light Engine

Delivered Lumens: 2,408
4FT-L56W | White 56W LED Light Engine

Delivered Lumens: 4,816
6 FOOT NOMINAL FIXTURE
6FT-L42W | White 42W LED Light Engine

Delivered Lumens: 3,612
6FT-L84W | Whtie 84W LED Light Engine

Delivered Lumens: 7,224
8 FOOT NOMINAL FIXTURE
8FT-L56W | White 56W LED Light Engine

Delivered Lumens: 4,816
8FT-L112W | White 112W LED Light Engine

Delivered Lumens: 9,632

Voltage

120-277V | Universal Voltage

Lamp Options

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

2700K

CRI

80 | (default)
90

Mounting

Fits within a 3.5" deep wall/ceiling cavity.

REC | Recessed Mount with Trim Flange (default)

Linear Run

Runs have a 1/8" expansion gap between diffusers. The light is continuous.

RUN | Continuous Run
OAL | Specify Length of Run
  ft.

Options

When the NAT option is selected, you can feel confident that the luminaire specified is designed with high-quality materials that will withstand the corrosive environment of indoor pools. Electrical components are protected from moisture and the fixture has been tested to operate in warm ambient temperatures.

NAT | Natatorium Construction
F | Fusing
