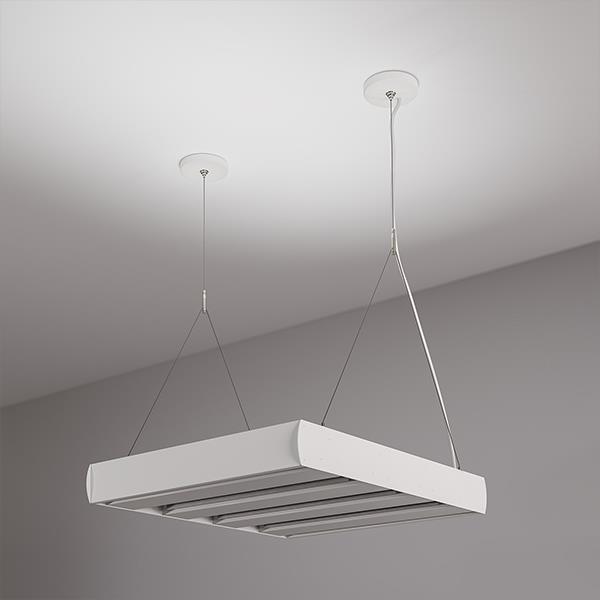

Echo Expanse - Pendant (Cable)
EIP12453
27.00 in
Echo Expanse - Pendant (Cable)
Echo Expanse is an advanced high output asymmetric lighting tool that lights large spaces more comfortably with indirect light. Designed with the latest in LED technology, it packages high lumen density with exceptional efficacy in a clean, compact form. State-of-the-art asymmetric optics direct light deep into the center of the room. Easily scaled for any project, Echo Expanse is available in a massive range of outputs - from 14,000 to 168,000 lumens. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.
Spec Sheet
DownLoads
View Family
Start building your product.
Specify your options and generate a personalized spec sheet.
Your Configuration:
clear
--None --
Required Field *
Please Note: Default specifications "
DF_XXX
" will not appear in the ordering code.
PROJECT DETAILS
Job Name:
Type:
Comments:
Exceeding 400 characters
LIGHT SOURCE
*
L866W
|
White 866W LED Light Engine
Primary Finish:
Paint Colors
PT01
RAL9003 Signal White (Gloss)
PT51
Matte White (Textured)
PT02
White (Textured)
PT04
RAL9001 Cream (Textured)
PT67
RAL7044 Silk Grey (Textured)
PT53
RAL7035 Light Grey (Textured)
PT54
RAL7037 Dusty Grey (Textured)
PT55
RAL7012 Basalt Grey (Textured)
PT56
RAL7016 Anthracite Grey (Textured)
PT11
Black (Textured)
PT57
RAL1015 Light Ivory (Textured)
PT58
RAL8004 Copper Brown (Textured)
PT59
RAL6021 Pale Green (Textured)
PT60
RAL1019 Grey Beige (Textured)
PT61
RAL7006 Beige Grey (Textured)
PT62
RAL1003 Signal Yellow (Textured)
PT63
RAL3001 Signal Red (Textured)
PT64
RAL6001 Emerald Green (Textured)
PT65
RAL5005 Signal Blue (Textured)
PT66
RAL5003 Sapphire Blue (Textured)
Voltage
120-277V
|
Universal Voltage
Lamp Options
2700K
|
2700K CCT
3000K
|
3000K CCT
3500K
|
3500K CCT
4000K
|
4000K CCT
5000K
|
5000K CCT
CRI
80
|
(default)
90
Controls
DIM1
|
0-10V Control, 1% Dimming (default)
AWNR
|
Lutron Athena Wireless Node, 1% Dimming
NLTA
|
Acuity nLight Air, 1% Dimming
Mounting
MIA
|
Canopy (default)
SIA
|
Straight Aircraft Cables and Power Cord, Integral Supply (default)
Emergency
EMR
|
Emergency Battery Remote
Options
NAT
|
Natatorium Construction
F
|
Fusing
Other Than Standard Options

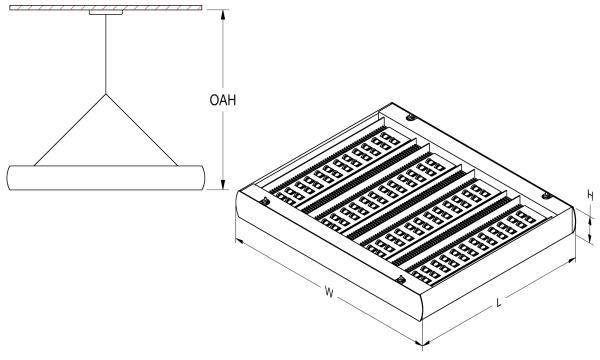

OAH
|
Pendant suspension length other than standard
Enter length:
Select a light source
OAH
Request a modification
