Lightruss Rail (Re-Engineered)
LRU12465 12.00 in
Lightruss Rail (Re-Engineered)

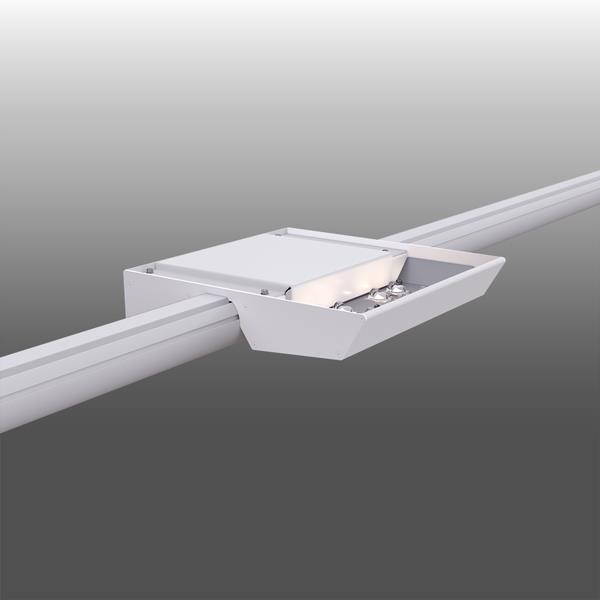

With just a 2.33" profile, Lightruss Rail (Re-Engineered) is the most compact product in the revolutionary Lightruss family. Designed with integrated LED modules, it brightly illuminates large spaces powerfully and efficiently.

Mounted on a single rail, the system's streamlined design blends seamlessly with ceiling construction. Hinged housings clamp over the rail and are self-supporting without tools, simplifying installation and maintenance. It's an elegant way to safely light natatoriums or other high ceiling applications.

For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com

Lightruss Rail (Re-Engineered) LRU12465

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Create a contemporary look with this low profile, single rail design
  • Present a clean visual package by encapsulating wireways and eliminating vertical stems
  • Lessen glare on surfaces, increase visual comfort and improve light uniformity with indirect lighting
  • Robust construction with natatorium option
  • Eliminate fixtures over pools
  • Save 25 to 30 percent on installation costs by reducing the number of power drops
  • Gain freedom and flexibility for ideal positioning of luminaires regardless of ceiling impediments such as supports, HVAC and other systems
  • Access and remove lighting modules without disassembling the entire system
  • Choose from visually-matching indirect and direct lighting luminaires
  • Rail system can be modified to turn corners and change elevations
  • Handcrafted in USA, BABA Compliant

DIMENSIONS

Dimensions
W
12 in
30.5 cm
H
2.3 in
5.8 cm
L
12.4 in
31.5 cm
Mounting Weight
Consult Factory.
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L72W | White 72W LED Light Engine

Delivered Lumens: 9,129

Voltage

120-277V | Universal Voltage

Lamp Options *

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

DF_DIM5 | 0-10V Control, 5% Dimming (default)
DIM1 | 0-10V Control, 1% Dimming
AWNR | Lutron Athena Wireless Node, 1% Dimming
NX | Current NX Wireless, 1% Dimming
NLTA | Acuity nLight Air, 1% Dimming

Mounting *

DF_AC | Aircraft Cable & Power Cord Mount

Options

When the NAT option is selected, you can feel confident that the luminaire specified is designed with high-quality materials that will withstand the corrosive environment of indoor pools. Electrical components are protected from moisture and the fixture has been tested to operate in warm ambient temperatures.

NAT | Natatorium Construction
