Carmi
Carmi
AIW11738 49 in
Carmi

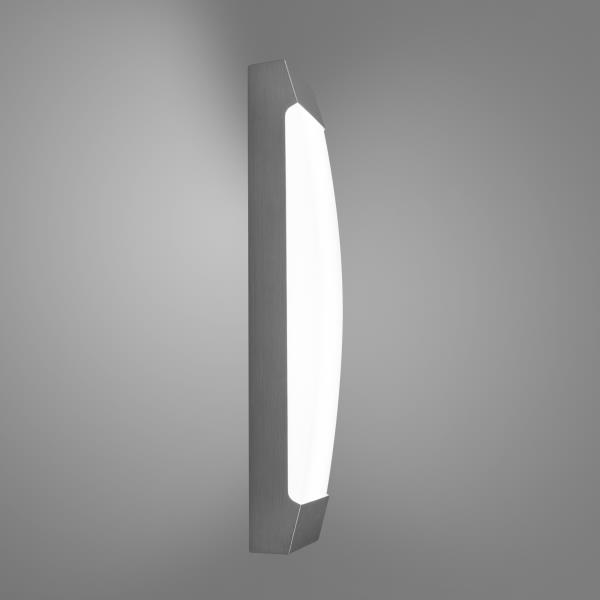

Add visual interest to your spaces with this curved wall sconce. Its gentle change in depth complements contours in design and architecture. Available in 2', 3', and 4' foot lengths, Carmi is suitable for both small and large spaces. The standard white matte acrylic diffuser softly illuminates with no source tracing. Mounted vertically or horizontally, Carmi's modern design is ideal for corridors and vanity applications, or anywhere accent lighting is needed. This low-profile luminaire is compliant with the Americans with Disabilities Act (ADA) requirements.
Carmi AIW11738

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Complement your modern designs with this cleanly designed fixture featuring no visible fasteners
  • White matte acrylic diffuser spreads light evenly across the entire lens, minimizing shadowing and hot spots
  • Eliminate the need to locate, mount, and wire remote equipment with standard Integral Class II power supply
  • Handcrafted in USA

 SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ (contact factory for 90+)
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • CCT:  3000K, 3500K, or 4000K
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • EMERGENCY:  Emergency battery remote optional
  • DIFFUSER: White matte acrylic diffuser standard; white gloss acrylic optional
  • CONSTRUCTION:  Aluminum construction provides durable protection for internal components and is recyclable
  • FINISH:  Choose from 26 standard thermoset polyester powder coat paint colors or brushed aluminum finish. RAL®, Pantone®, or custom finishes available upon request.
  • MOUNTING:  Mounts to standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

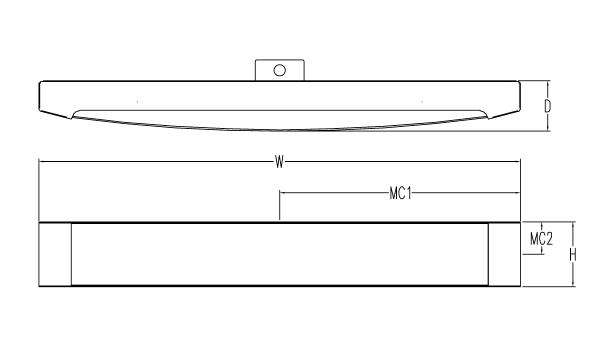

DIMENSIONS

Dimensions
W
49.3 in
125.2 cm
H
5 in
12.7 cm
D
3.9 in
9.9 cm
MC1
24.6 in
62.5 cm
MC2
2.5 in
6.4 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L50W | White 50W LED Light Engine

Delivered Lumens: 2,301

L25W | White 25W LED Light Engine

Delivered Lumens: 1,150


Voltage *

120-277V | Universal Voltage

Lamp Options *

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

Diffuser *

DF_MA01 | Matte Acrylic Diffuser Lens (default)
OA | White Gloss Acrylic Diffuser

MA01
OA

Emergency

EMR | Emergency Battery Remote
