FEATURES & BENEFITS
- Increase visual comfort, eliminate source brightness, and improve light uniformity with indirect lighting
- Field adjustable distribution ratchets to five positions—35°, 17.5°, 0°, -17.5°, -35°—while maintaining a static housing (ships from factory at 35° tilt)
- Wet listed for interior or exterior applications
- Robust construction with natatorium option: rustproof aluminum housing, minimum 2 mils powder coat paint finish (except BAL finish), corrosion-resistant fasteners, gasketed and fully sealed LED modules, fully potted power supply
- Watertight power supply box
- Optional direct orientation available
- Solves a wide variety of lighting challenges in one package
- Indirect orientation has no visible fasteners within view
- Optional cut-off shields and louvers available
- Handcrafted in USA
- LIGHT SOURCE: White LED light engine
- CRI: 80+ (contact factory for 90+)
- LUMEN MAINTENANCE: L70 = >50,000 Hrs.
- EFFICACY: Up to 130 lm/W delivered
- CCT: 3000K, 3500K, or 4000K
- VOLTAGE: 120-277V standard
- DRIVER: Fully potted integral Class 2 power supply standard
- MAX AMBIENT OPERATING TEMP: Indirect = 42°C (108°F); Direct = 38°C (100°F)
- DIMMING: 0-10V controls standard to 1% on LED light engines
- INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
- CONSTRUCTION: Aluminum construction; precision injection molded optics
- FINISH: Choose from more than 30 thermoset polyester powder coat paint colors or brushed aluminum finish. RAL®, Pantone®, or custom finishes available upon request.
- MOUNTING: Mounts to a standard 4" octagonal junction box
- MODIFICATIONS: Consult factory for all modification requests
- APPROVALS: ETL listed to UL standards (US & Canada) for use in wet locations; suitable for interior or exterior use
Approximate: 15 lb (7 kg)
Required Field *
Please Note: Default specifications "DF_XXX" will not appear in the ordering code.
LIGHT SOURCE *
To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.
L92W | White 92W LED Light Engine
Delivered Lumens: 11,960
Lamp Options *
Delivered lumens shown are at 3500K and 4000K CCT; apply multiplier for delivered lumens at other CCT.
1 Apply .93 multiplier for delivered lumens

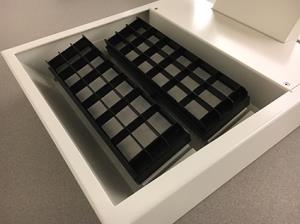

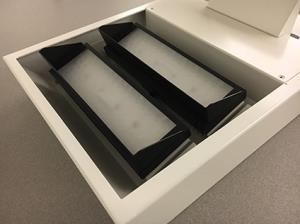

Shield the source from view at certain angles, absorb or block unwanted light, or reflect and redirect light with optional cut-off shields and louvers. Cut-off shield (CS) and louver (LV) options cannot be used together.
2 Apply .85 multiplier for delivered lumens
3 Apply .55 multiplier for delivered lumens
4 Direct orientation includes thermal vents
When the NAT option is selected, you can feel confident that the luminaire specified is designed with high-quality materials that will withstand
the corrosive environment of indoor pools. Electrical components are protected from moisture and the fixture has been tested to operate in warm
