Monet - Exterior
Monet - Exterior
AEW10492 38.00 in

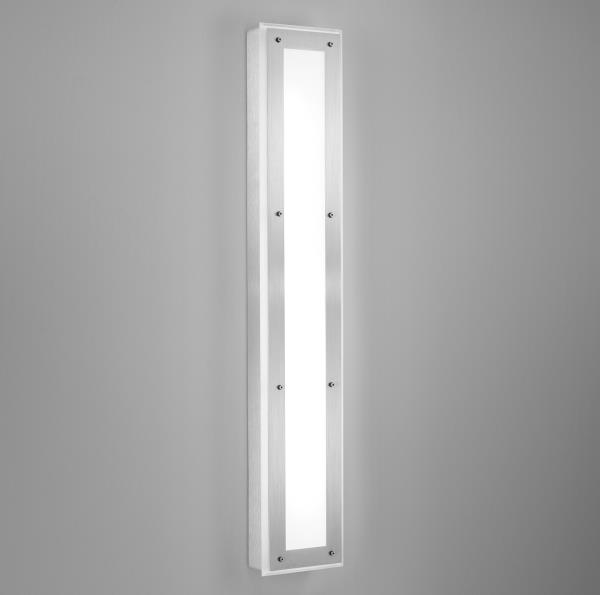

Monet Exterior - Wall Surface Mount
With a flash of style and a touch of class, Monet makes a lasting impression. Distinctive motifs provide an artistic twist, while vivid color gels and luminous glowing edges complete an energetic design. The Monet family consists of interior sconces, pendants, and ceiling mounts, as well as exterior wall mounts. Efficient, long-lasting LEDs allow Monet to empower a space in a simple, elegant form. Exterior ADA-compliant Monet wall mount luminaires are UL listed for wet locations. This fixture is surface mounted, but fully recessed models are also available. Exterior Monet's vibrant face lights the path of egress and is balanced by a matching luminous edge.
Monet Exterior - Wall Surface Mount AEW10492

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Frosted acrylic lens gives the fixture a unique identity with light reflected through the polished edge
  • Add a splash of color to a space with optional theatrical color gels offered in four standard colors with custom colors available upon request
  • Stainless steel external fasteners will not rust or corrode
  • Versatile design allows fixture to be mounted in any orientation
  • Compliant with Americans with Disabilities Act (ADA) requirements
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  IP66 white LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • CONSTRUCTION:  Formed metal construction provides durable protection for internal components and is recyclable
  • FINISH:  Faceplate and housing finished to match your specification. Choose from 26 standard thermoset polyester powder coat paint colors or brushed aluminum finish. RAL®, Pantone®, or custom finishes available upon request.
  • MOUNTING:  Mounts to standard 4" octagonal junction box; additional mounting structure and hardware required (by others)
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in wet locations

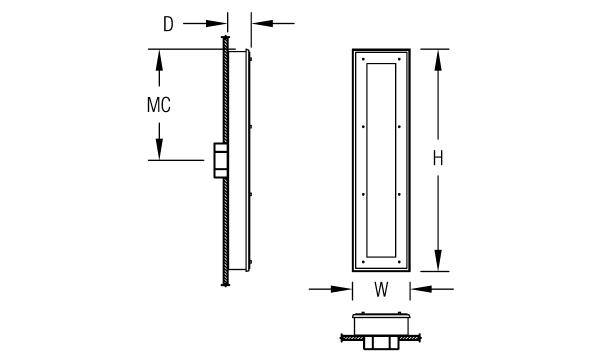

DIMENSIONS

Dimensions
W
6.7 in
17 cm
H
38 in
96.5 cm
D
2.7 in
6.9 cm
MC
19 in
48.3 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L86W | White 86W LED Light Engine

Delivered Lumens: 3,520

L43W | White 43W LED Light Engine

Delivered Lumens: 1,760

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 43.0 - Max 86.0
LU   Min 1763 - Max 3526

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR-DAMP | Emergency Battery Remote - Damp Location
EMR-W/L | Emergency Battery Remote - Wet Location

Color Accents *

Contact factory to customize a color gel that coordinates with your application.

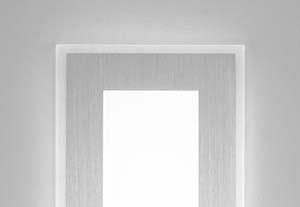

DF_CG00 | White Color Gel (default)

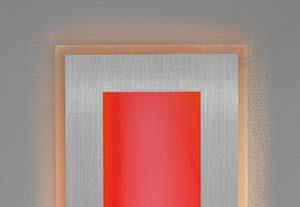

CG01 | Red Color Gel

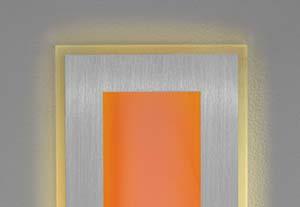

CG02 | Orange Color Gel

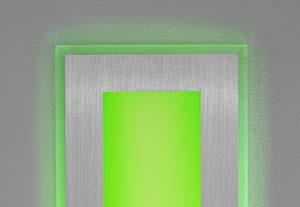

CG03 | Green Color Gel

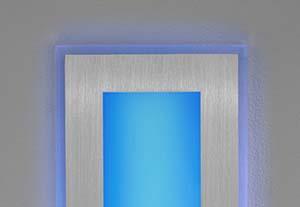

CG04 | Blue Color Gel

CG00
CG01
CG02
CG03
CG04

Motif Accents

Optional motif is black, unless specified.

FP01 | Open
FP02 | Boxes
FP03 | Cross Ends
FP04 | Split
FP05 | Split 2
FP06 | Prairie
FP07 | Thatch
FP08 | Squares
FP09 | Perforated
FP10 | Parquet

FP01
FP02
FP03
FP04
FP05
FP06
FP07
FP08
FP09
FP10
