York Exterior
AEW10500 18.00 in
York Exterior

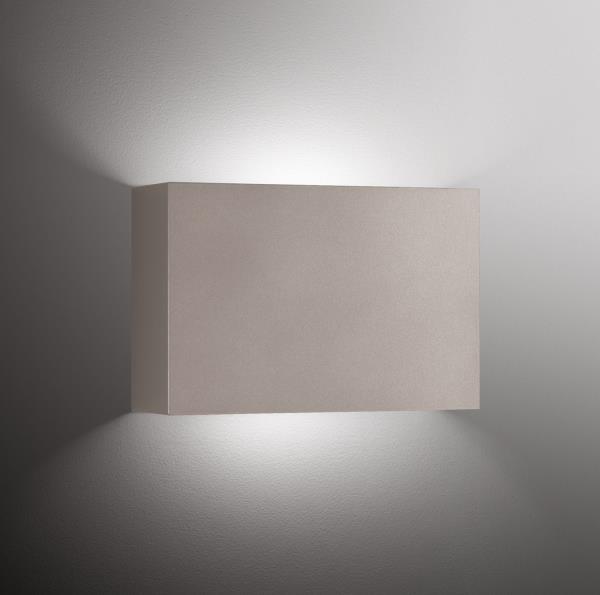

The York is a simple but elegant sconce that can either be used as a decorative element or be painted to disappear in the space. The fixture can be designed for any application where elegance is important. Choose from a palette of painted finishes.
York Exterior AEW10500

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • External fasteners are not visible, providing a clean fixture design
  • Versatile design allows fixture to be mounted in any orientation
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  IP66 white LED light engine
  • CRI: 80+ (contact factory for 90+)
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • CCT:  Available LED color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • CONSTRUCTION:  Formed metal construction provides durable protection for internal components and is recyclable
  • FINISH:  Choose from 26 standard thermoset polyester powder coat paint colors . RAL®, Pantone®, or custom finishes available upon request.
  • MOUNTING: Mounts to standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US and Canada) for use in wet locations

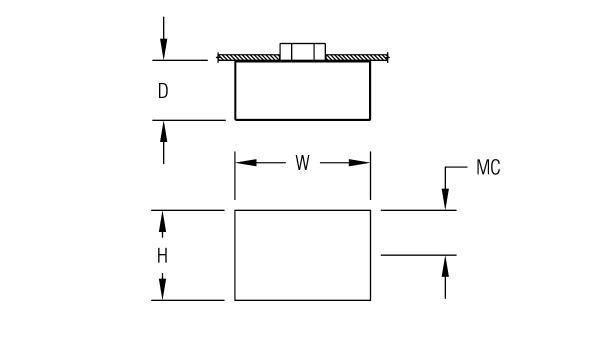

DIMENSIONS

Dimensions
W
18 in
45.7 cm
H
12 in
30.5 cm
D
8 in
20.3 cm
MC
6 in
15.2 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L29W | White 29W LED Light Engine

Delivered Lumens: 1,673

L14W | White 14W LED Light Engine

Delivered Lumens: 837

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 14.0 - Max 29.0
LU   Min 812 - Max 1682

*For requests outside Min-Max range, please contact factory.

Voltage *

120-277V | Universal Voltage

Lamp Options *

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI

DF_80 | (default)
90

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR-Damp includes damp location enclosure for Battery back-up. EMR-W/L includes a wet location enclosure for battery back-up.

EMR-DAMP | Emergency Battery Remote - Damp Location
EMR-W/L | Emergency Battery Remote - Wet Location

Faceplate Options

Patterned stainless steel faceplates cannot be painted or metal finished. Please leave the primary finish BLANK when specifying this option.

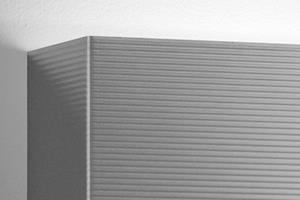

ES1 | Embossed Stainless Steel-Linear Pattern

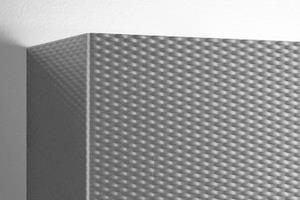

ES2 | Embossed Stainless Steel-Cross Hatch Pattern

ES1
ES2
