Harbor Exterior - Single Bars
AEW8073 22.00 in

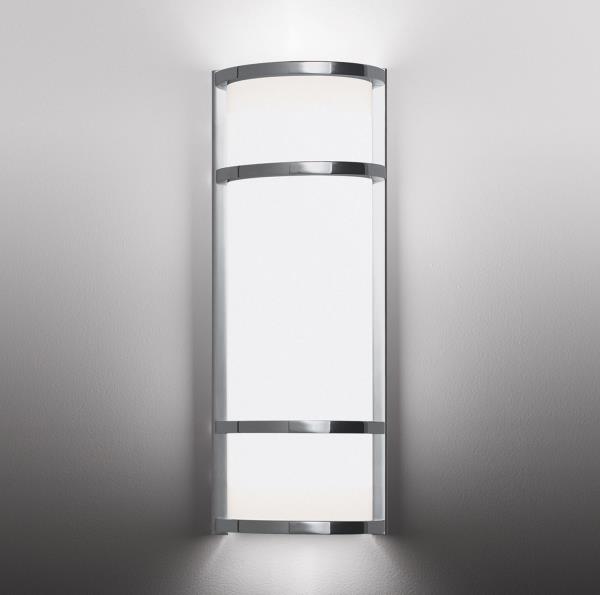

Harbor Exterior - Single Bars
Accenting the Harbor half cylinder sconce are two 1/4" x 1/2" horizontal decorative bars. The clean lines of this exterior sconce are perfect for multiple applications including offices, retail buildings, and health care facilities. Choose from a palette of both painted and metal finishes.
Harbor Exterior - Single Bars AEW8073

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Opal top and bottom lens protects fixture and provides uniform illumination
  • Mount vertically or horizontally
  • Two lens removal options provide application flexibility
  • Interior family fixtures available to carry a consistent lighting design throughout a project
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 90+HE
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • DIFFUSER: Formed opal acrylic lens
  • MOUNTING: Mounts to standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in wet locations

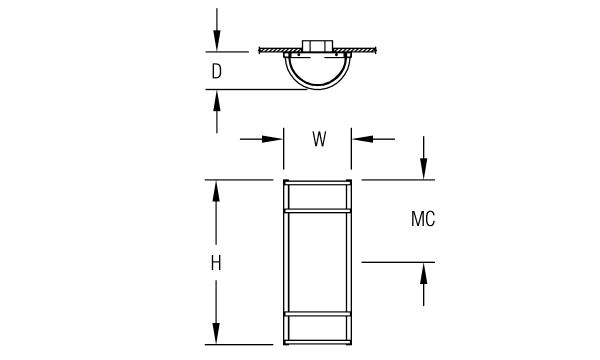

DIMENSIONS

Dimensions
W
9 in
22.9 cm
H
22 in
55.9 cm
D
5 in
12.7 cm
MC
11 in
27.9 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L22W | White 22W LED Light Engine

Delivered Lumens: 1,501

L43W | White 43W LED Light Engine

Delivered Lumens: 3,002

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 22.0 - Max 43.0
LU   Min 1518 - Max 2967

*For requests outside Min-Max range, please contact factory.

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI

90+HE | 90+ High Efficacy

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR-Damp includes damp location enclosure for Battery back-up. EMR-W/L includes a wet location enclosure for battery back-up.

EMR-DAMP | Emergency Battery Remote - Damp Location
EMR-W/L | Emergency Battery Remote - Wet Location

Orientation *

DF_VERT | Vertical (default)
HORZ | Horizontal

End Caps *

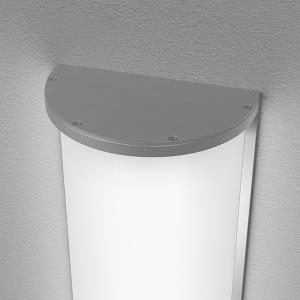

DF_LUM | Luminous (default)

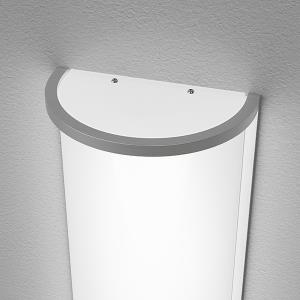

SLD | Solid

LUM
SLD

Lens Installation *

INST2 includes ball nuts on vertical bars to remove lens.

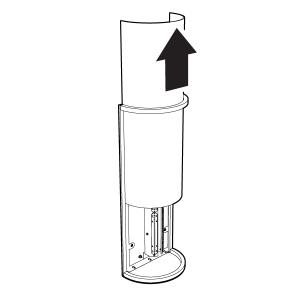

DF_INST1 | Slides Out (default)

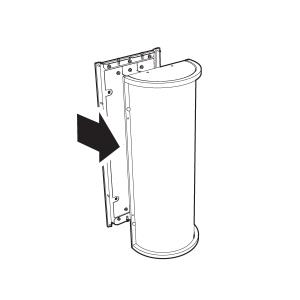

INST2 | Pulls Straight Out

INST1
INST2
