Start building your product.
Specify your options and generate a personalized spec sheet.
FEATURES & BENEFITS
- Solid metal accents add high-quality, decorative element to fixture

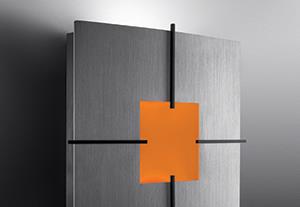

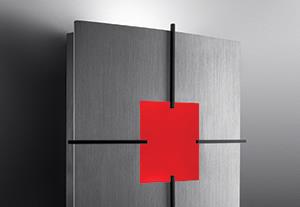

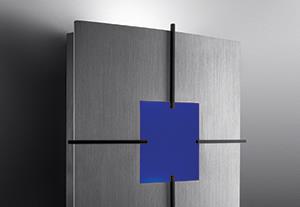

- Add a splash of color to a space with optional theatrical color gels (offered in five standard colors with custom colors available upon request)
- Compliant with Americans with Disabilities Act (ADA) requirements
- Handcrafted in USA
SPECIFICATIONS
- LIGHT SOURCE: IP66 white LED light engine or incandescent
- CRI: 90+HE
- LUMEN MAINTENANCE: L70 = >50,000 Hrs.
- CCT: Available LED color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
- DRIVER: Integral Class 2 power supply standard
- DIMMING: 0-10V controls standard to 1% on LED light engines
- CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
- EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation. Contact factory for other Emergency options.
- LENS: Top lens and bottom lens standard with any LED module
- CONSTRUCTION: Formed metal construction provides durable protection for internal components and is recyclable. Flush front. Top and bottom glass lensing.
- FINISH: The face plate is aluminum and available in brushed or painted finishes. Accents are available in brushed brass or can be painted.
- MOUNTING: Mounts to standard 4" octagonal junction box
- MODIFICATIONS: Consult factory for all modification requests
- APPROVALS: ETL listed to UL standards (US and Canada) for use in wet locations

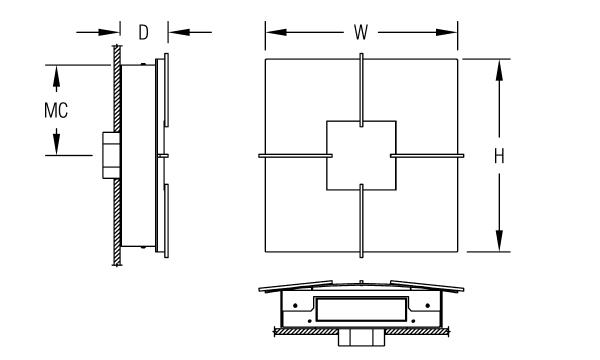

DIMENSIONS
Dimensions
Mounting Weight
Approximate: 25 lb (12 kg)
